Description

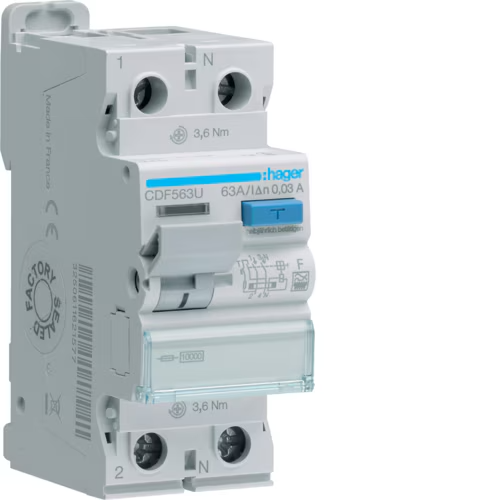

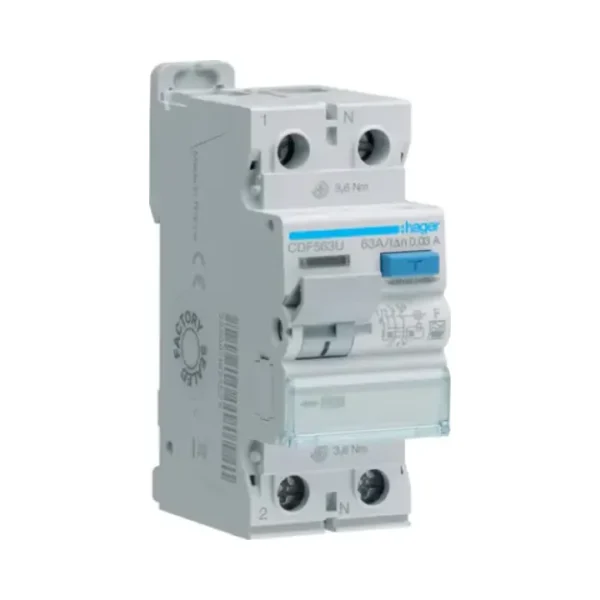

1P+N 63A 30mA F Class RCCB
Hager CDF563U
The Hager CDF563U is a 1P+N RCCB designed with F Class functionality, offering 63A rated current and 30mA residual operating current. This RCCB provides advanced protection by detecting AC and mixed-frequency residual currents, ensuring safety in residential, commercial, and industrial installations. Its compact design and compliance with EN 61008-1 standards make it a reliable choice for modern electrical systems.
Detailed Features and Functionality
The Hager CDF563U offers enhanced protection with its F Class capability, making it ideal for detecting AC and mixed-frequency currents that may occur in circuits with variable frequency drives or electronic devices.
This RCCB operates at a rated voltage of 230V AC, with a maximum operating voltage of 253V and a rated impulse withstand voltage of 4000V. Its 63A rated current and 30mA residual operating current make it suitable for medium to high-load applications.
Built for durability, the RCCB features an electrical endurance of 10,000 cycles and a mechanical endurance of 20,000 operations. Additionally, its compact dimensions—70mm depth, 85mm height, and 36mm width—allow for easy installation in tight spaces. It also performs reliably across a wide temperature range from -25°C to 70°C.
Key Features of Hager CDF563U
- 1P+N Configuration: Suitable for single-phase applications.
- Rated Current: 63A for medium- to high-load circuits.
- Residual Operating Current: 30mA for sensitive earth fault detection.
- F Class Functionality: Detects AC and mixed-frequency residual currents for advanced protection.
- Short-Time Delayed Tripping: Ensures selectivity in multi-device setups.
- Robust Voltage Ratings: Operates at 230V with a max voltage of 253V and 4000V impulse withstand.
- High Endurance: 10,000 electrical cycles and 20,000 mechanical operations.
- Compact Design: 36mm width for efficient space usage.
- Compliant Standards: Meets EN 61008-1 for safety and performance.
