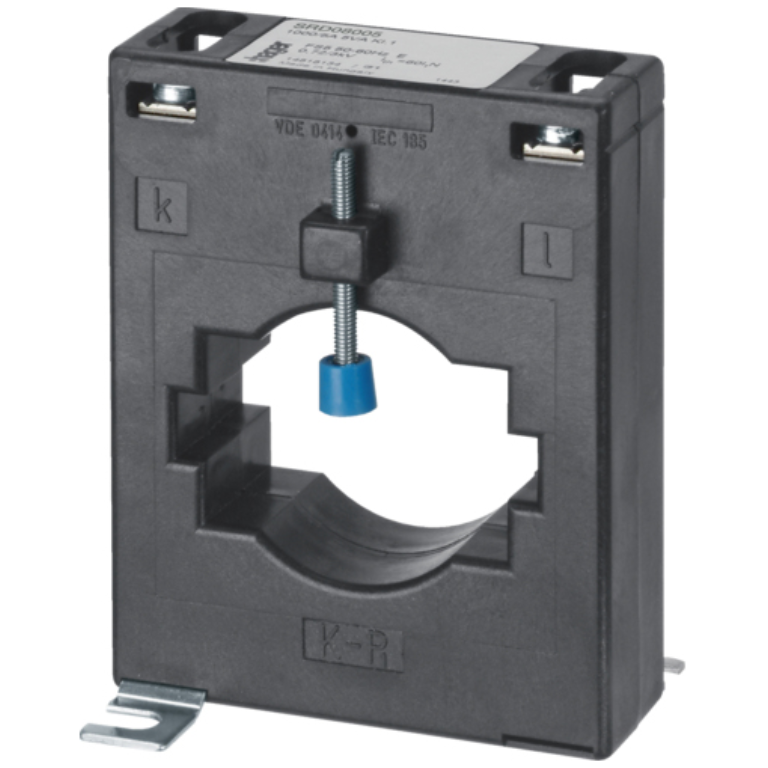

Bar/Cable-Through Current Transformer BG 613 800/5A 5VA Class 1
Hager SRD08005
The Hager SRD08005 is a reliable bar/cable-through current transformer built for precision energy monitoring in medium to large-scale systems. Featuring an 800/5A ratio and 5VA Class 1 accuracy, it is ideal for industrial, commercial, and utility applications. Its robust design, large 45mm opening, and screw-type connections ensure seamless integration and dependable performance.
Key Features of Hager SRD08005 Bar/Cable-Through Current Transformer
- 800/5A Current Ratio: Delivers accurate current measurement with Class 1 precision.
- 5VA Power Rating: Optimised for medium to high-capacity energy monitoring applications.
- Bar/Cable-Through Design: Simplifies installation for seamless integration into existing systems.
- Wide Frequency Range: Operates efficiently at 50/60Hz.
- Larger Opening: 45mm opening accommodates larger cables for high-capacity systems.
- Durable Construction: Built for reliable operation in demanding environments.
- Secure Connections: Screw terminals ensure compatibility with flexible and rigid cables for safe and reliable wiring.
- Robust Performance: Functions reliably in extreme temperatures ranging from -40°C to 40°C.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 6W
Physical Characteristics:
- Depth: 30mm
- Height: 108mm
- Width: 85mm
- Height of Opening: 45mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRD08005 is ideal for:
- Industrial: Monitor energy usage in medium to large-scale machinery and production systems.
- Commercial: Track power consumption in multi-tenant buildings, retail outlets, and data centers.
- Utilities: Provide precise current measurements for public infrastructure and medium-capacity energy systems.
Why Choose the Hager SRD08005?
The Hager SRD08005 offers high accuracy, durable construction, and a large cable opening, making it a reliable choice for energy monitoring in demanding environments. Its compliance with Class 1 standards ensures precision, while its bar/cable-through design simplifies installation for seamless integration into existing systems.
