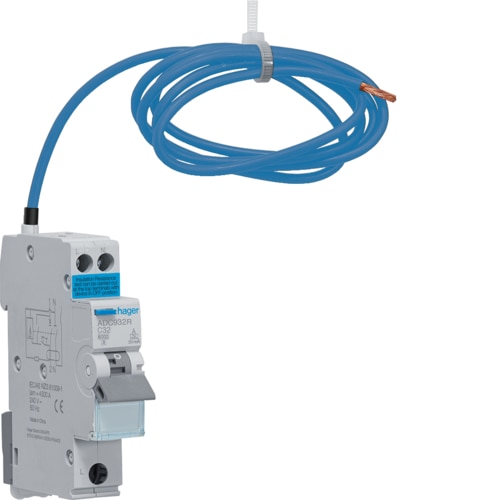

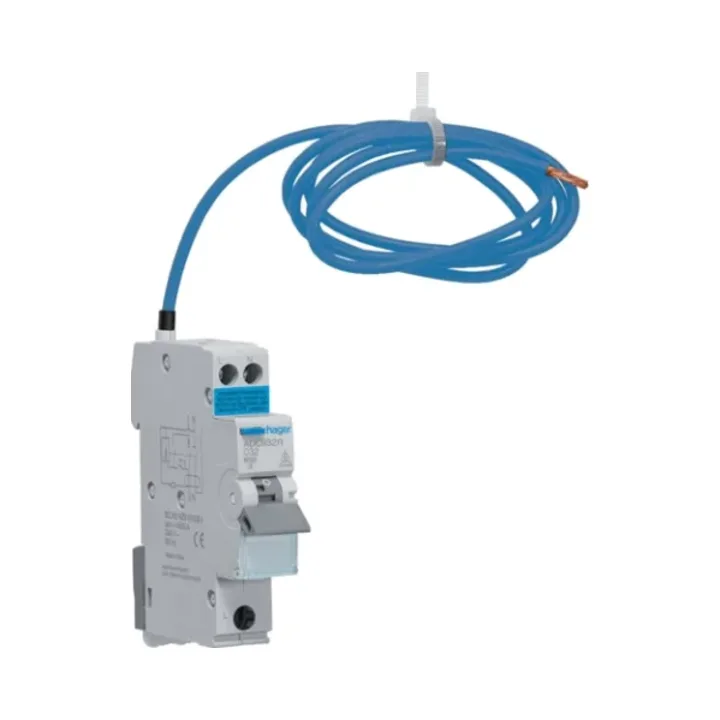

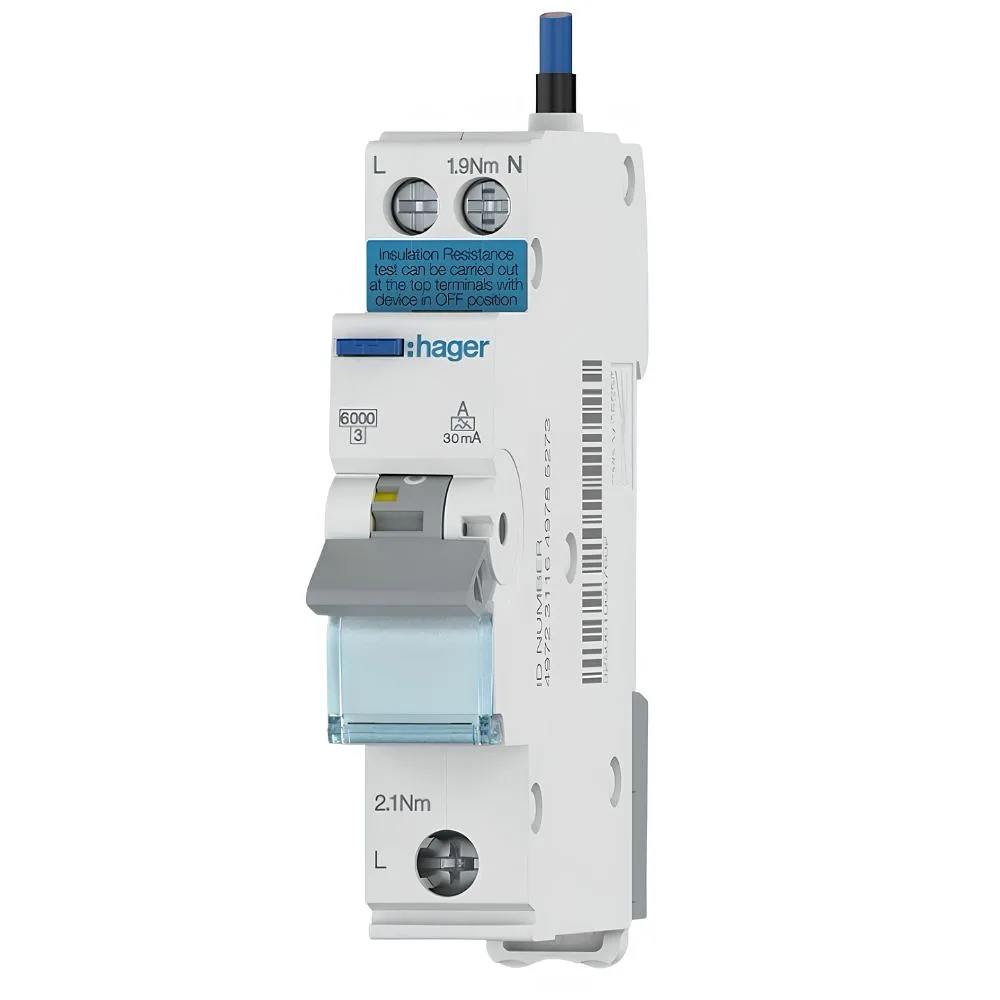

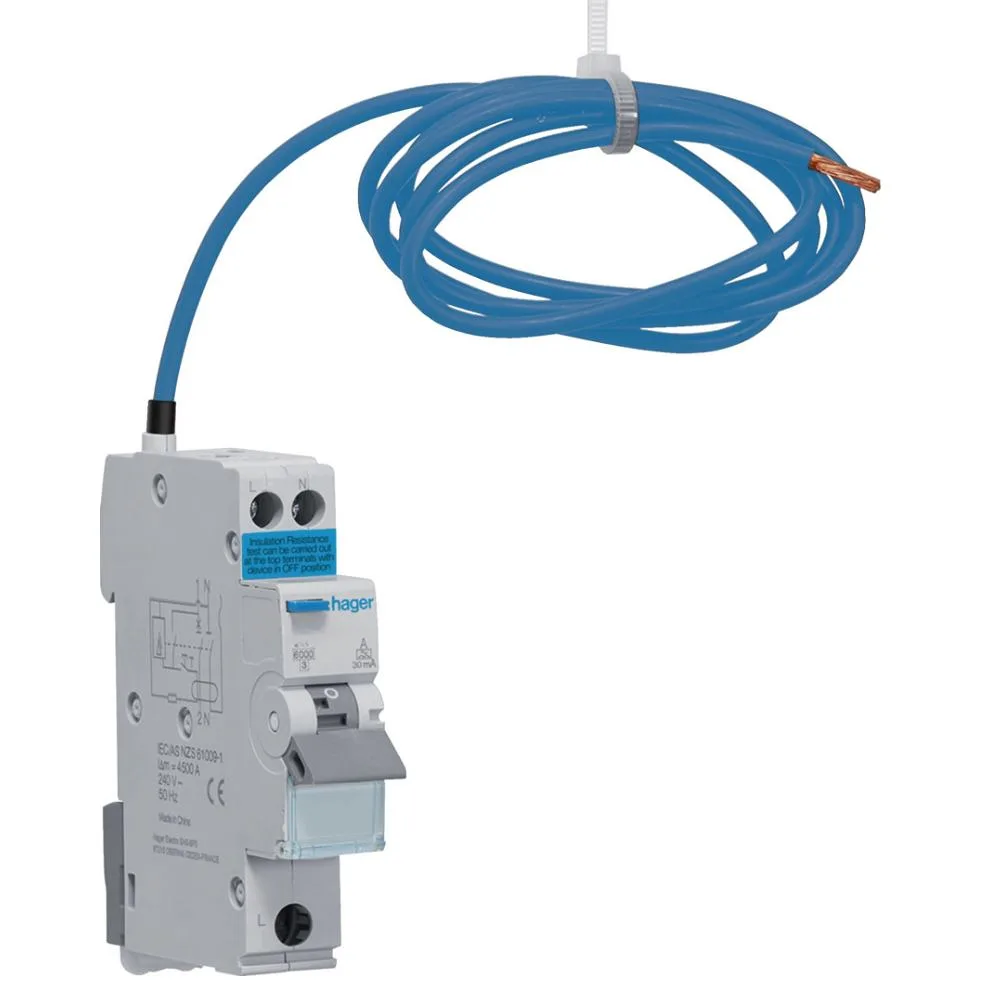

Hager ADC932R 30mA Type A 32A 6kA C Curve 1M 1P+N Bi-Directional RCBO

Description

30mA Type A 32A 6kA C Curve 1M 1P+N Bi-Directional RCBO

Hager ADC932R

The Hager ADC932R 30mA Type A 32A 6kA C Curve RCBO is designed to ensure the safety and efficiency of your electrical installations. This reliable RCBO offers comprehensive protection against overloads, short circuits, and residual currents. Its bi-directional functionality allows for seamless operation, regardless of the power flow direction, making it ideal for both residential and commercial applications.

Product Features:

• Nominal Current: 32A
• Rated Residual Current: 30mA
• Poles: 1P+N
• Curve Type: C Curve
• Type: Type A
• Bi-Directional Operation

Specifications of Hager ADC932R Bi-Directional RCBO

• Neutral Position: Right
• Number of Poles: 2P (1P+N)
• Fixing Mode: DIN rail type O (symmetrical)
• Rated Operational Voltage: 230V AC
• Frequency: 50 Hz
• Rated Insulation Voltage: 440V
• Max Operating Voltage: 264V
• Impulse Withstand Voltage: 4 kV
• Rated Residual Operating Current: 30 mA
• Rated Current (30°C): 32A
• Total Power Loss under IN: 12.48W

Dimensions:

• Depth: 70 mm
• Height: 85 mm
• Width: 17.7 mm

Safety and Standards:

• Protection Index: IP20
• Residual Current Type: A
• Standards: IEC 61009-2-2, BS 61009-2-2
• WEEE Directive: Compliant

Operating Conditions:

• Operating Temperature: -25°C to 70°C

This RCBO provides top-tier protection and performance, ensuring safe and efficient operation of your electrical systems in both residential and commercial environments.
