Description

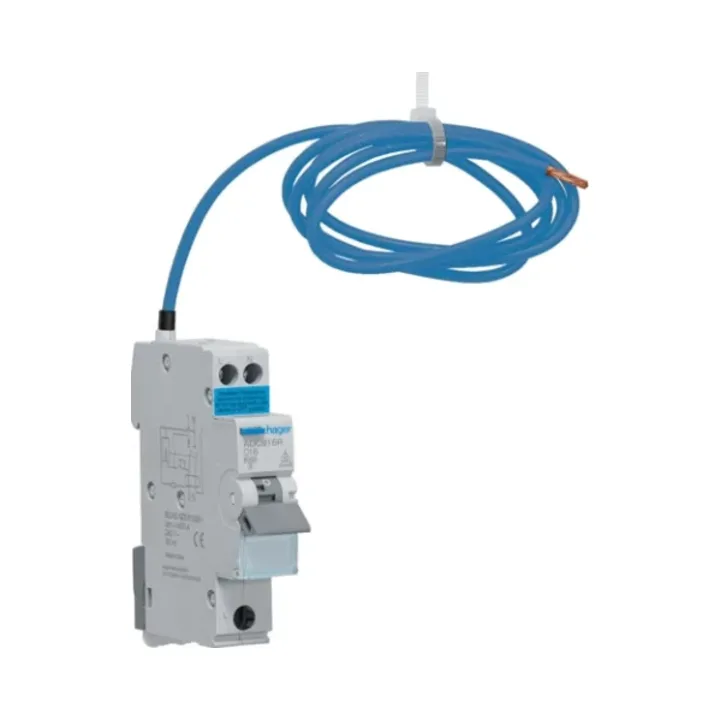

30mA Type A 16A 6kA C Curve 1M 1P+N Bi-Directional RCBO
Hager ADC916R
The Hager ADC916R 30mA Type A 16A 6kA C Curve RCBO ensures the safety and efficiency of your electrical installations. This durable RCBO provides reliable protection against overload, short-circuits, and residual currents. Its bi-directional design allows it to work effectively regardless of the power flow direction, making it ideal for a wide range of applications in residential and commercial installations.
Product Features:
- Nominal Current: 16A
- Rated Residual Current: 30mA
- Poles: 1P+N
- Curve Type: C Curve
- Type: Type A
- Bi-Directional Operation
Specifications:
- Neutral Position: Right
- Number of Poles: 2P (1P+N)
- Fixing Mode: DIN rail type O (symmetrical)
- Rated Operational Voltage: 230V AC
- Frequency: 50 Hz
- Rated Insulation Voltage: 440V
- Max Operating Voltage: 264V
- Impulse Withstand Voltage: 4 kV
- Rated Residual Operating Current: 30 mA
- Rated Current (30°C): 16A
- Total Power Loss under IN: 8.69W
Dimensions:
- Depth: 70 mm
- Height: 85 mm
- Width: 17.7 mm
Safety and Standards:
- Protection Index: IP20
- Residual Current Type: A
- Standards: IEC 61009-2-2, BS 61009-2-2
- WEEE Directive: Compliant
Operating Conditions:
- Operating Temperature: -25°C to 70°C
This RCBO provides robust protection and reliability, ensuring the long-term safety of your electrical systems in both residential and commercial settings.
Short Description
The Hager ADC916R 30mA Type A 16A 6kA C Curve RCBO offers superior protection against overload, short-circuit, and residual currents. Its bi-directional function and C Curve design make it versatile and efficient for various electrical installations.
