Hager ADC910R 30mA Type A 10A 6kA C Curve 1M 1P+N Bi-Directional RCBO

Description

30mA Type A 10A 6kA C Curve 1M 1P+N Bi-Directional RCBO

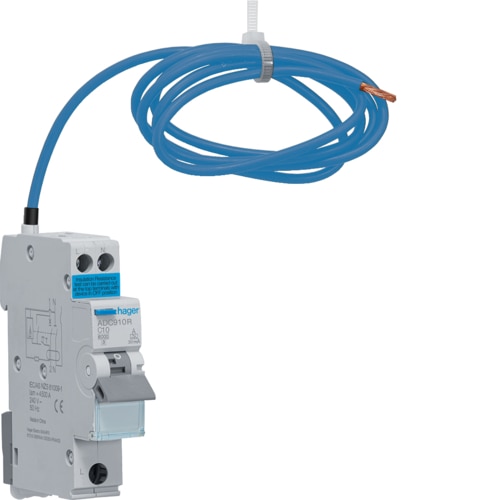

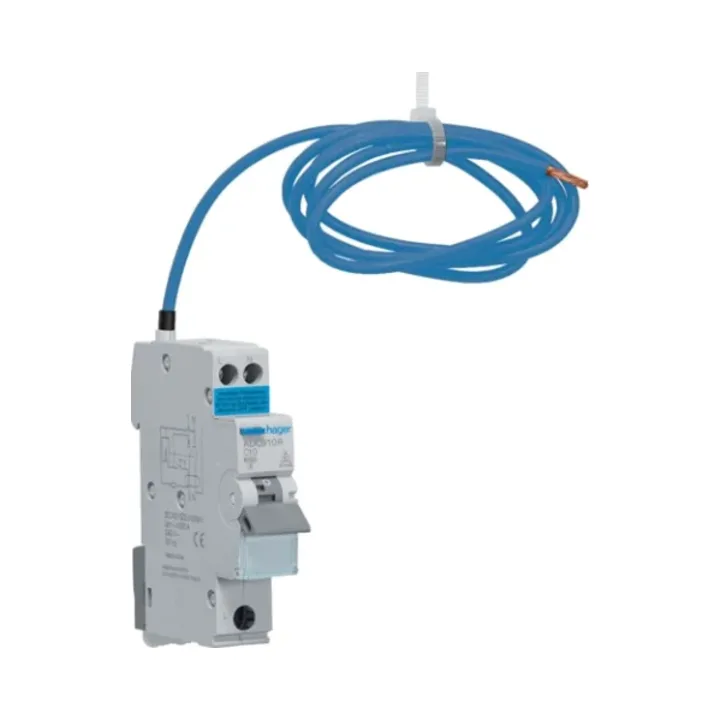

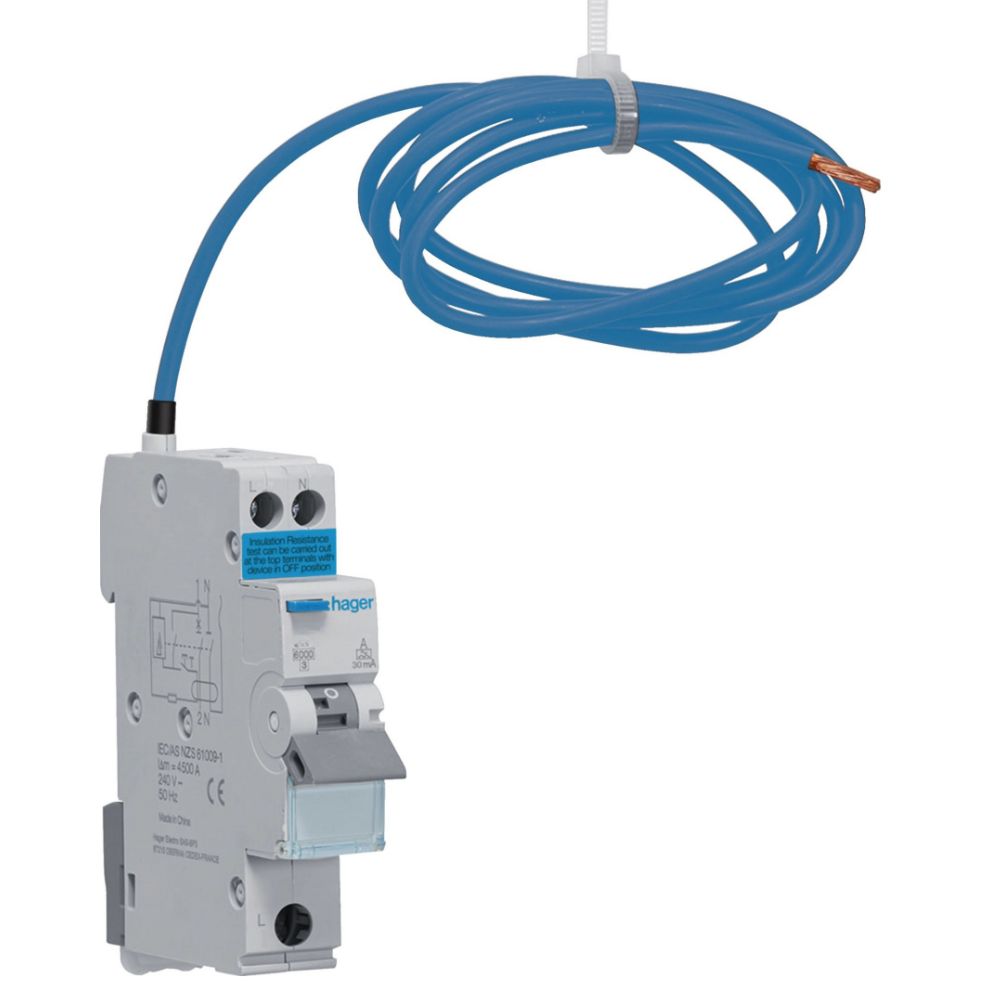

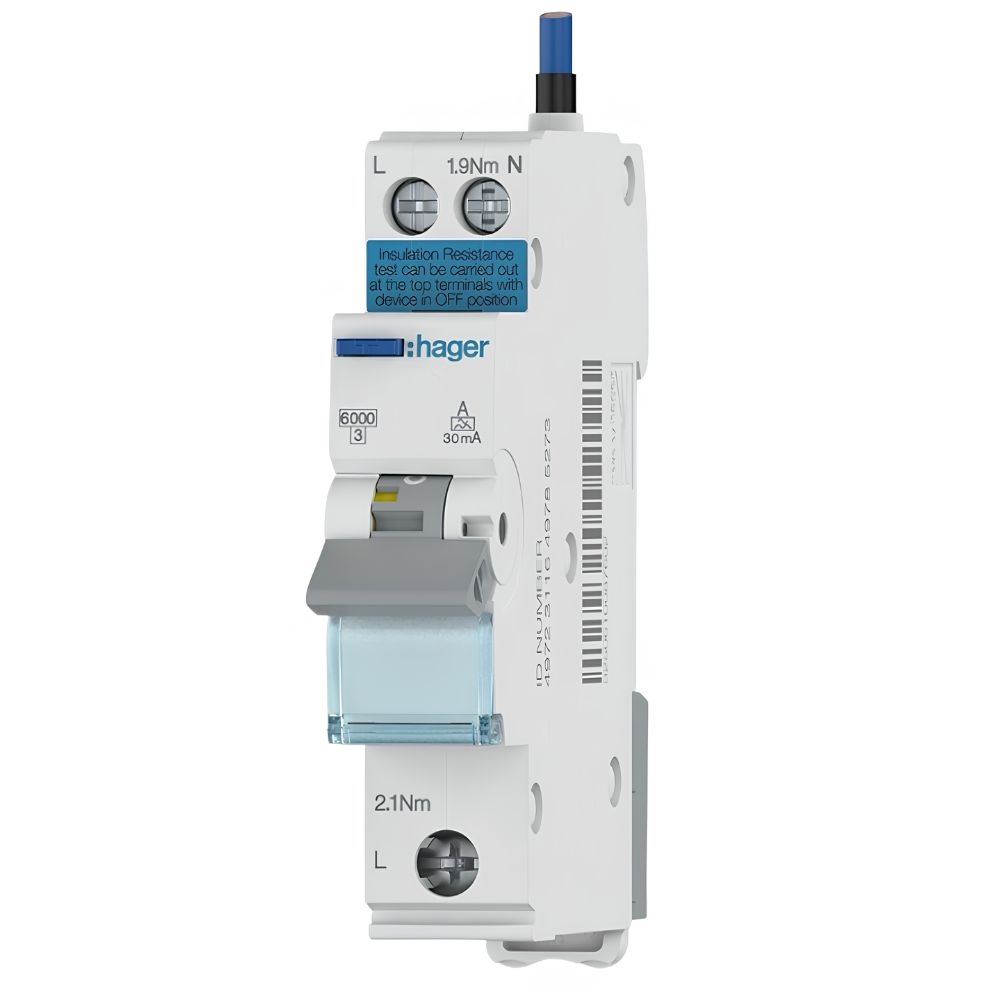

Hager ADC910R

The Hager ADC910R 30mA Type A 10A 6kA C Curve RCBO is designed to ensure the safety and efficiency of your electrical installations. This reliable RCBO provides protection against overload, short-circuits, and residual currents, offering superior performance for both residential and commercial applications. With its bi-directional functionality, this device works seamlessly regardless of the power flow direction, making it highly versatile and easy to install.

Product Features of Hager ADC910R Bi-Directional RCBO

• Nominal Current: 10A
• Rated Residual Current: 30mA
• Poles: 1P+N
• Curve Type: C Curve
• Type: Type A
• Bi-Directional Operation

Specifications:

• Neutral Position: Right
• Number of Poles: 2P (1P+N)
• Fixing Mode: DIN rail type O (symmetrical)
• Rated Operational Voltage: 230V AC
• Frequency: 50 Hz
• Rated Insulation Voltage: 440V
• Max Operating Voltage: 264V
• Impulse Withstand Voltage: 4 kV
• Rated Residual Operating Current: 30 mA
• Rated Current (30°C): 10A
• Total Power Loss under IN: 4.04W

Dimensions:

• Depth: 70 mm
• Height: 85 mm
• Width: 17.7 mm

Safety and Standards:

• Protection Index: IP20
• Residual Current Type: A
• Standards: IEC 61009-2-2, BS 61009-2-2
• WEEE Directive: Compliant

Operating Conditions:

• Operating Temperature: -25°C to 70°C

This RCBO ensures reliable circuit protection and long-term safety, making it an essential component for modern electrical systems.
