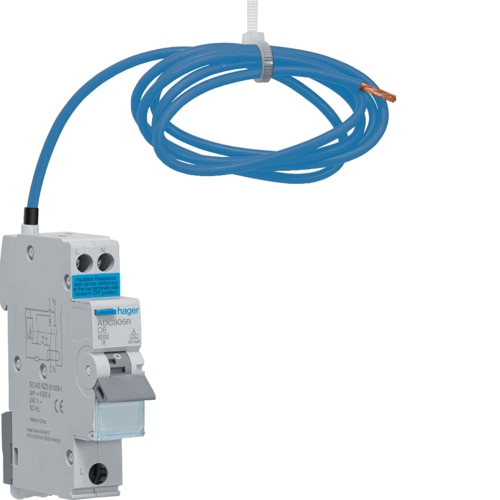

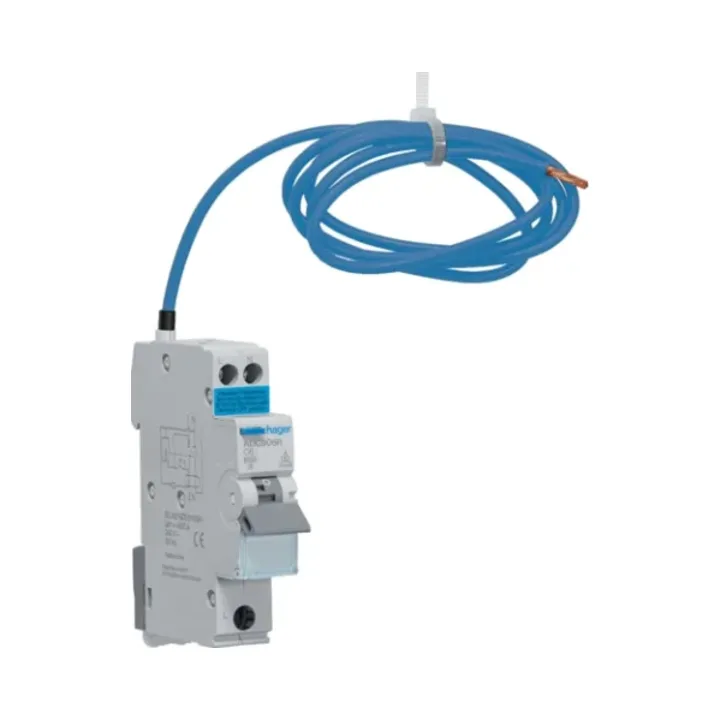

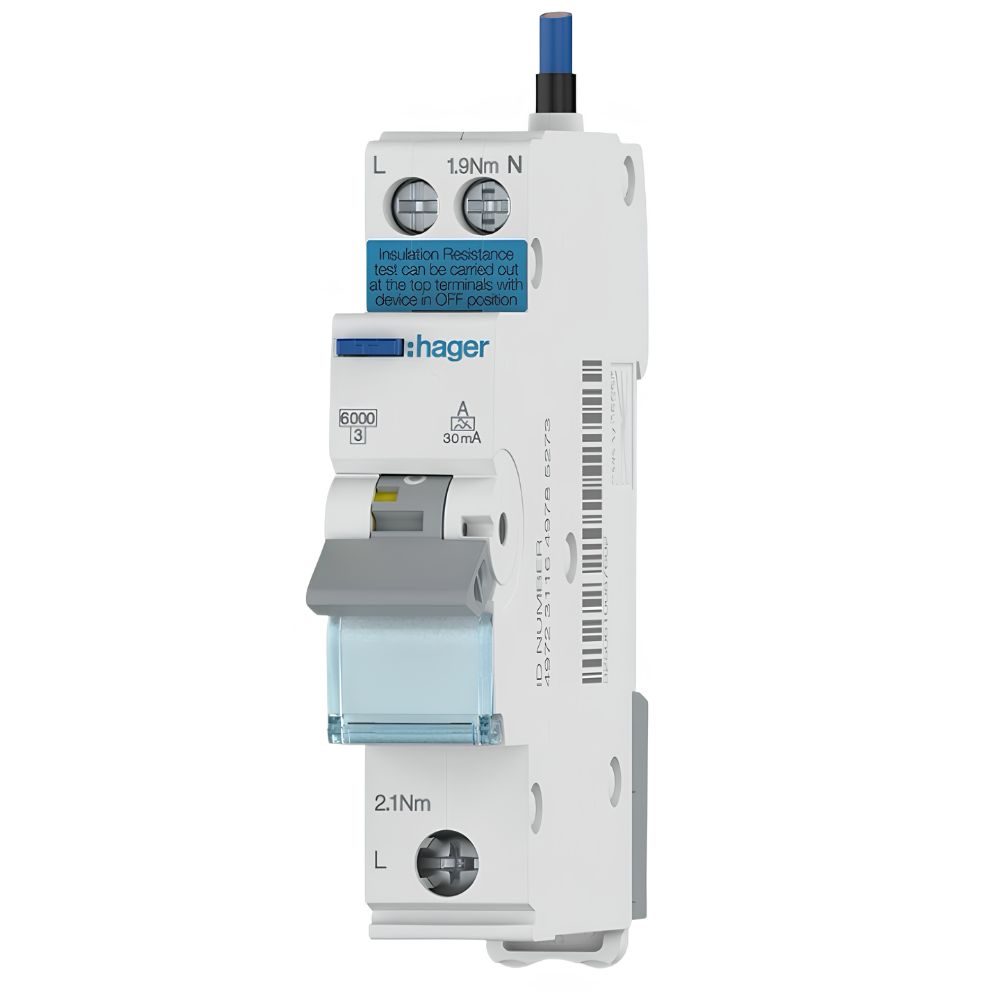

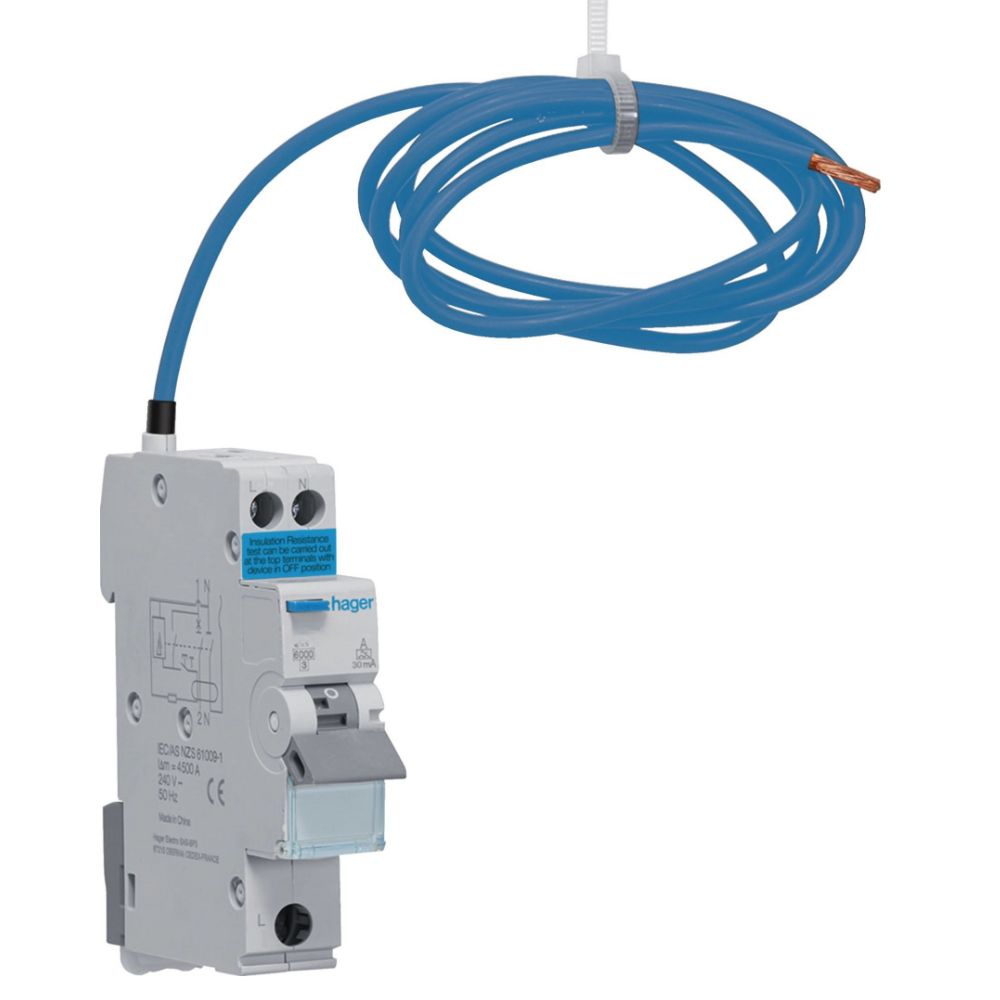

Hager ADC906R 30mA Type A 6A 6kA C Curve 1M 1P+N Bi-Directional RCBO

Description

30mA Type A 6A 6kA C Curve 1M 1P+N Bi-Directional RCBO

Hager ADC906R

Ensure the safety and reliability of your electrical installations with the Hager ADC906R 30mA Type A 6A 6kA C Curve RCBO. This durable device provides comprehensive protection from overload, short-circuits, and residual currents, making it essential for maintaining safe and efficient electrical systems in both residential and commercial environments. Its bi-directional functionality allows it to operate regardless of power flow direction, making installation easier and more versatile.

Product Features:

• Nominal Current: 6A
• Rated Residual Current: 30mA
• Poles: 1P+N
• Curve Type: C Curve
• Type: Type A
• Bi-Directional Operation

Specifications:

• Neutral Position: Right
• Number of Poles: 2P (1P+N)
• Fixing Mode: DIN rail type O (symmetrical)
• Rated Operational Voltage: 230V AC
• Frequency: 50 Hz
• Rated Insulation Voltage: 440V
• Max Operating Voltage: 264V
• Impulse Withstand Voltage: 4 kV
• Rated Residual Operating Current: 30 mA
• Rated Current (30°C): 6A
• Total Power Loss under IN: 2.74W

Dimensions:

• Depth: 70 mm
• Height: 85 mm
• Width: 17.7 mm

Safety and Standards:

• Protection Index: IP20
• Residual Current Type: A
• Standards: IEC 61009-2-2, BS 61009-2-2
• WEEE Directive: Compliant

Operating Conditions:

• Operating Temperature: -25°C to 70°C

This RCBO not only offers dependable protection but also ensures the long-term safety of your electrical circuits, whether for residential or commercial use.
