Description

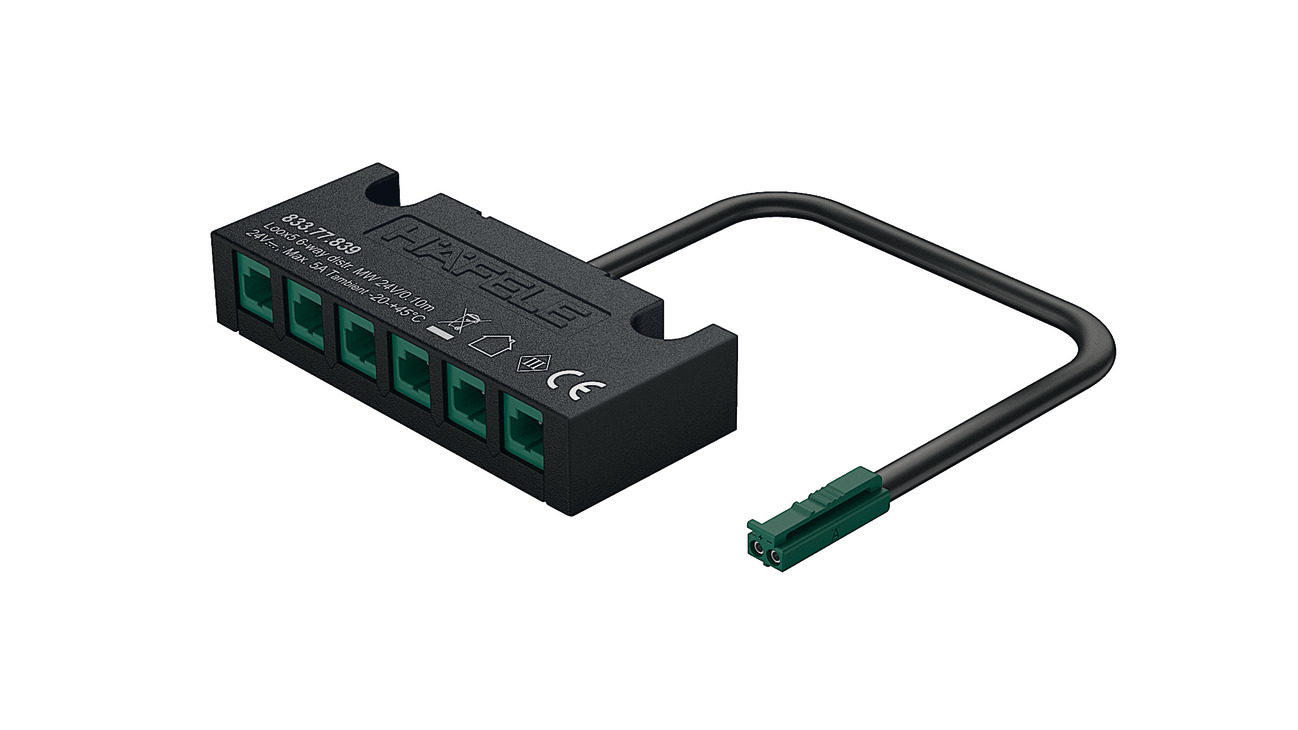

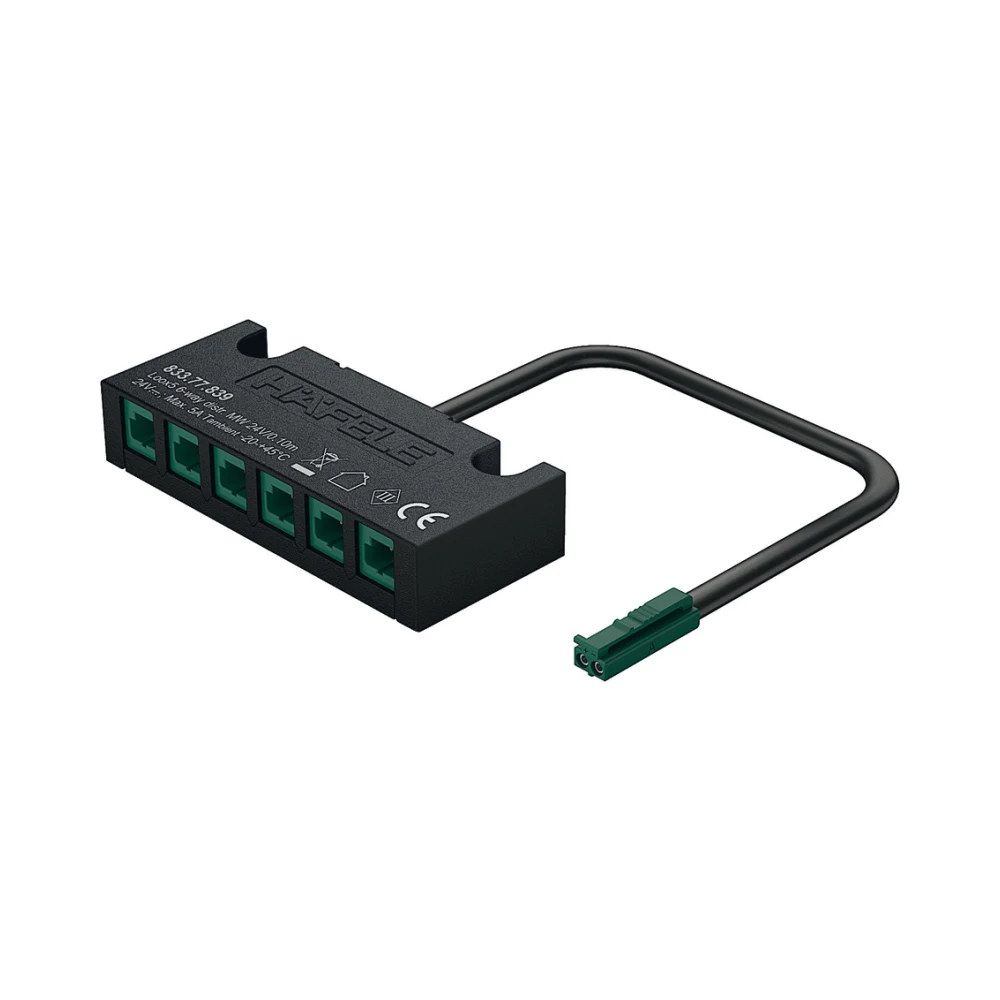

Hafele Loox5 6-Way Distributor without Switching Function – 24V 90W
- For use with Loox5 24 V lights and drivers
- Without switching function, can also be connected to box to box 6-way distributor
- Dimensions (L x W x H): 70 x 30 x 14 mm
- Number of connections:
- 1x input port with box to box plug
- 1x output port with box to box socket
- 6x output ports device sockets
- Black plastic
- Plug connection box to box
- Unswitched output ports with continuous current

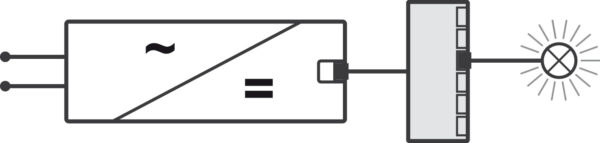

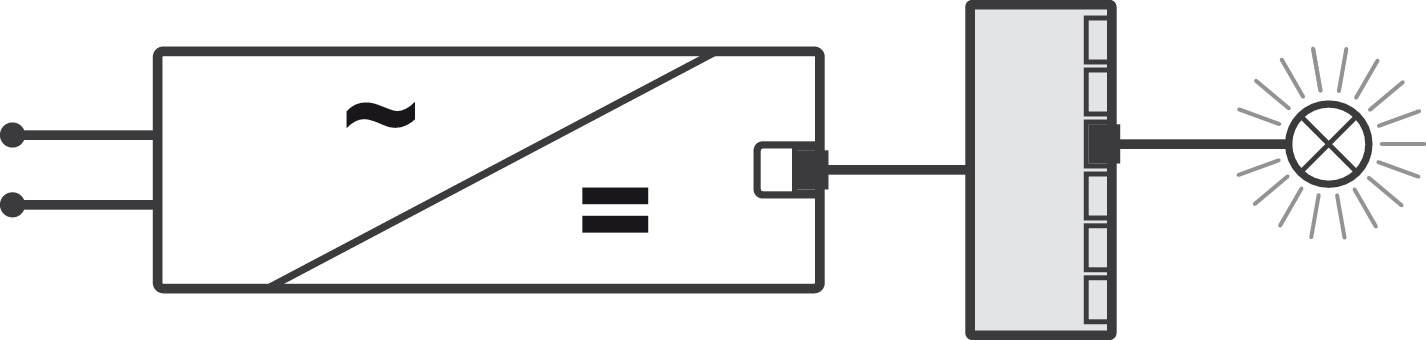

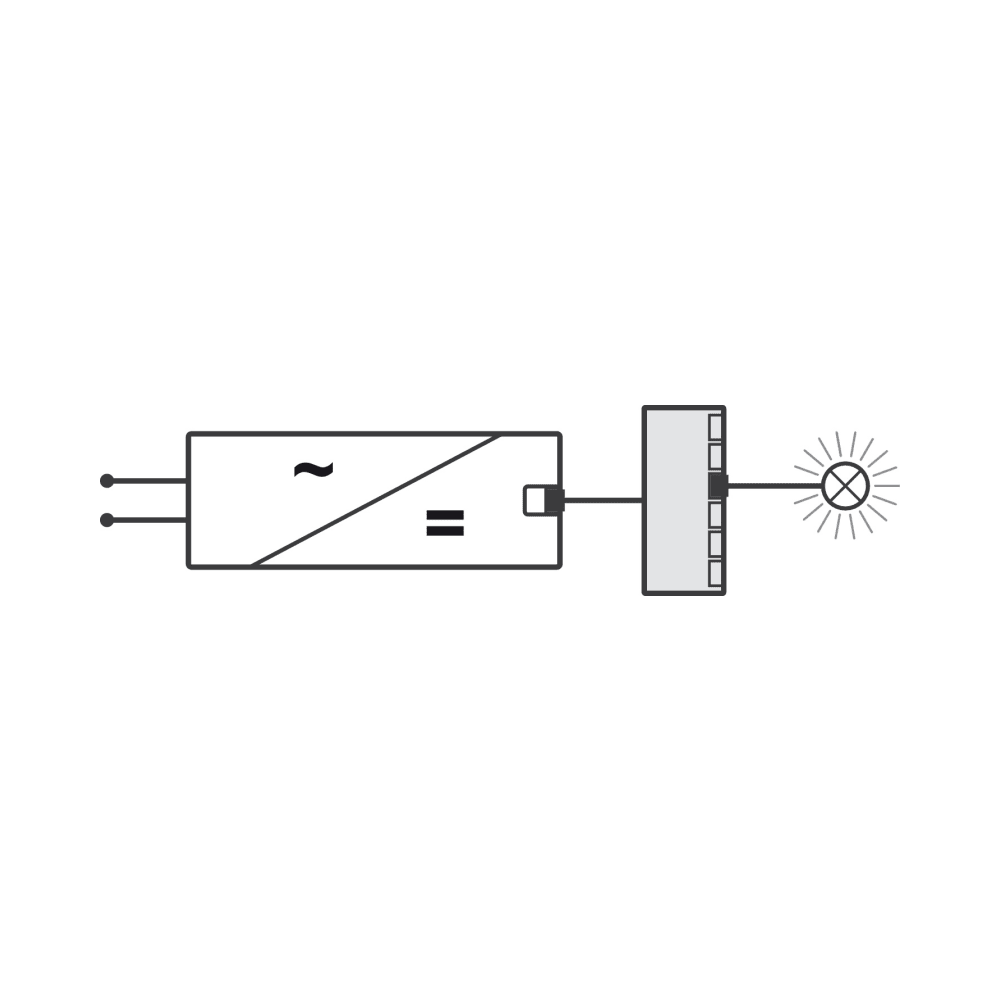

The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.
| Input ports | 1 x plug, Loox5 2-pin 24 V |
|---|---|
| Connections | 6 x sockets, Loox5 2-pin 24 V |
| Power rating | 90 W |
| Voltage | 24 V |
| Version | Without switching function |
| Material | Plastic |
| Colour/finish | Black |
| Dim. (L x W x H) | 70 x 30 x 14 mm |
| Cable length | 80 mm |
| Häfele Lifetime Guarantee | 7 years |
| Low voltage socket | Loox5 2-pin 24 V |
