Description

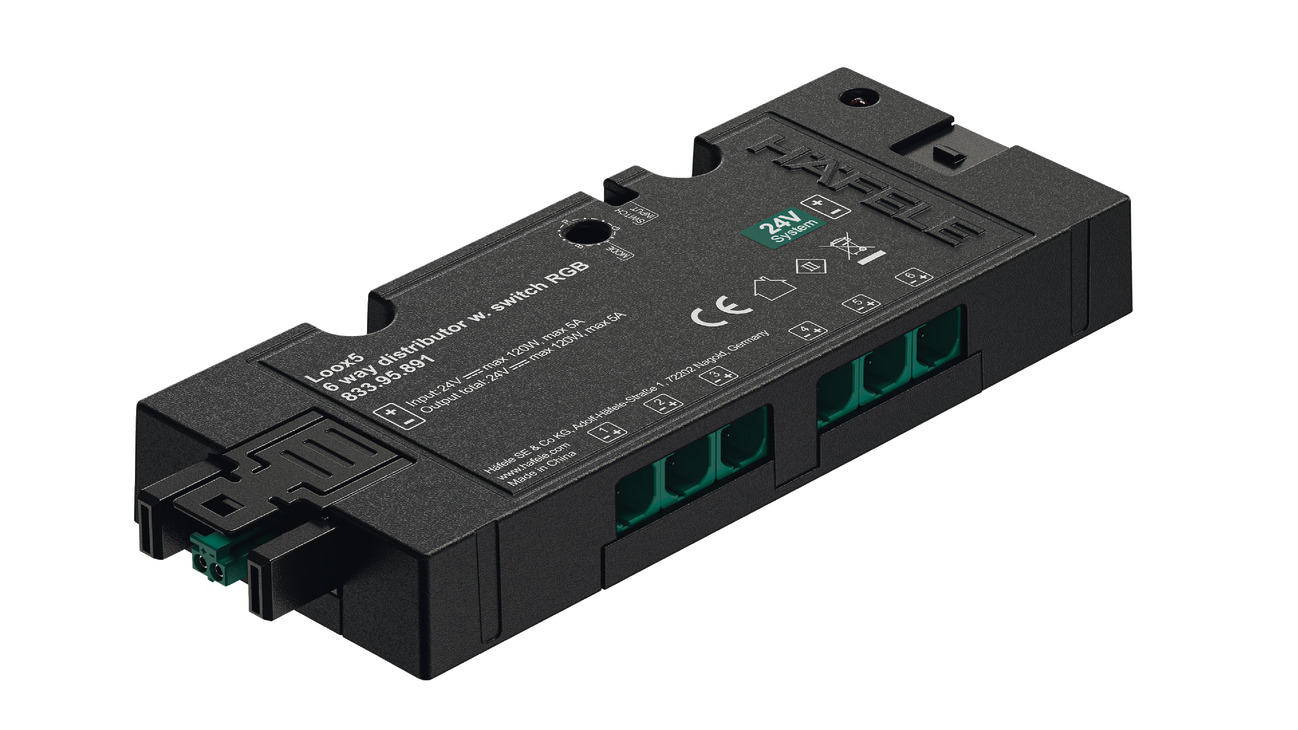

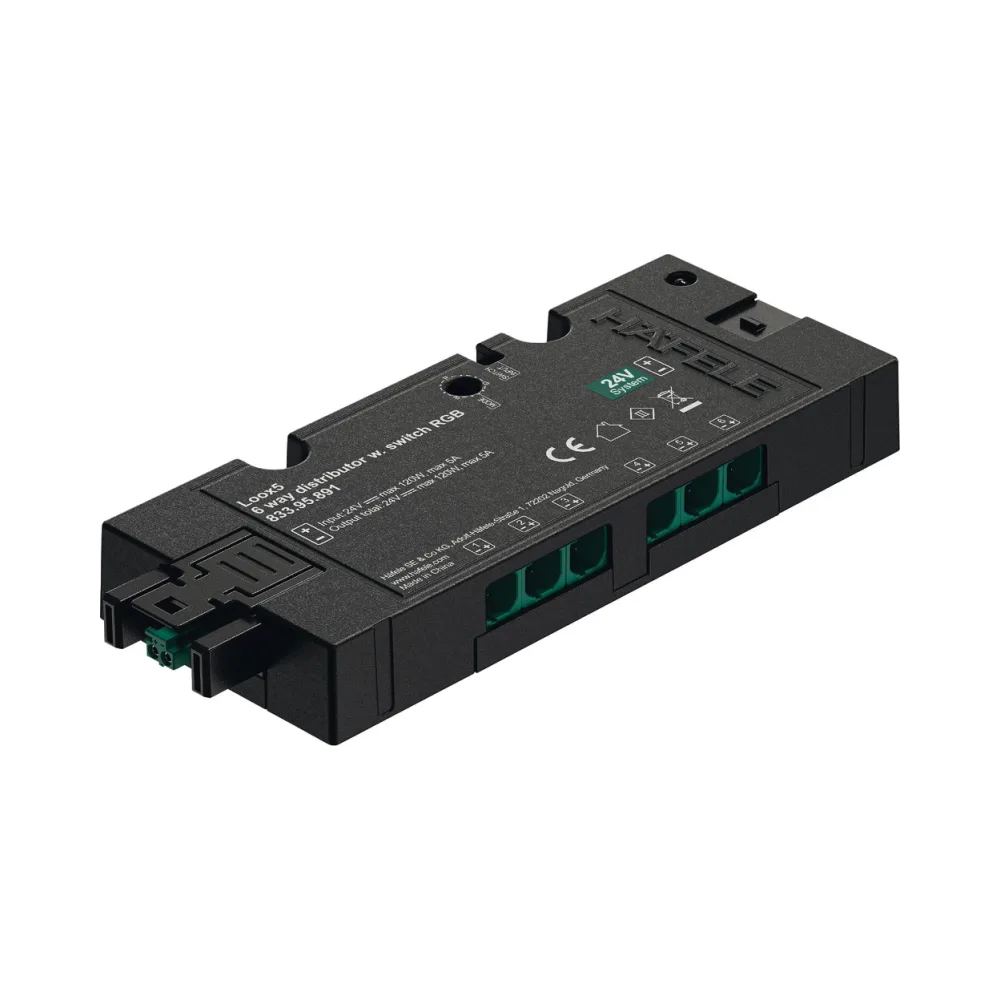

Hafele Loox5 6-Way Box to Box RGB Distributor with Switching Function – 24V 120W
- Connect RGB lights directly – without adapters
- 8 light colour or colour changes can be manually pre-set: red, orange, yellow, green, cyan, blue, violet, magenta
- With switching function for 1 switch
- Box to box plug-in connection
- Number of connections:
- Input – 1x Plug, Loox5 2-pole 12V/24V box to box
- Connections – 1x Socket, Loox5 2-pole 12V/24V box to box
- Switched outputs – 6x Socket, Loox5 3-pole RGB 12V/24V
- Control inputs – 1x Socket, Loox switch
A function button on the distributor is used to pre-select (for all outputs together) from 8 light colours: Red, orange, yellow, green, cyan, blue, violet and magenta.
The colour change can be pre-set with another push of a button (from red to red in an 80-second cycle).

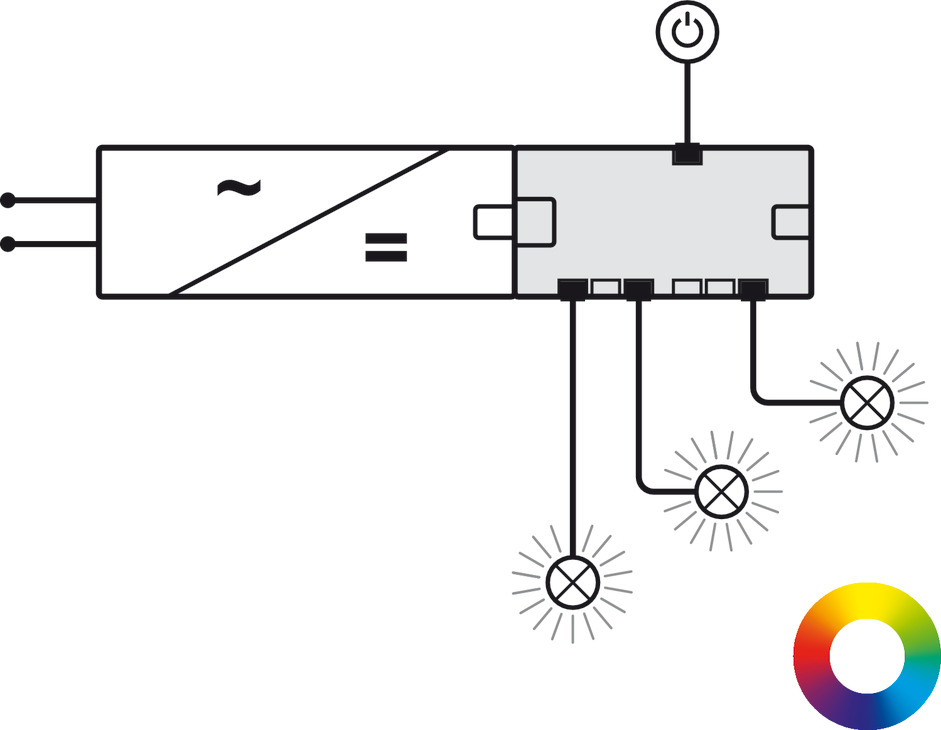

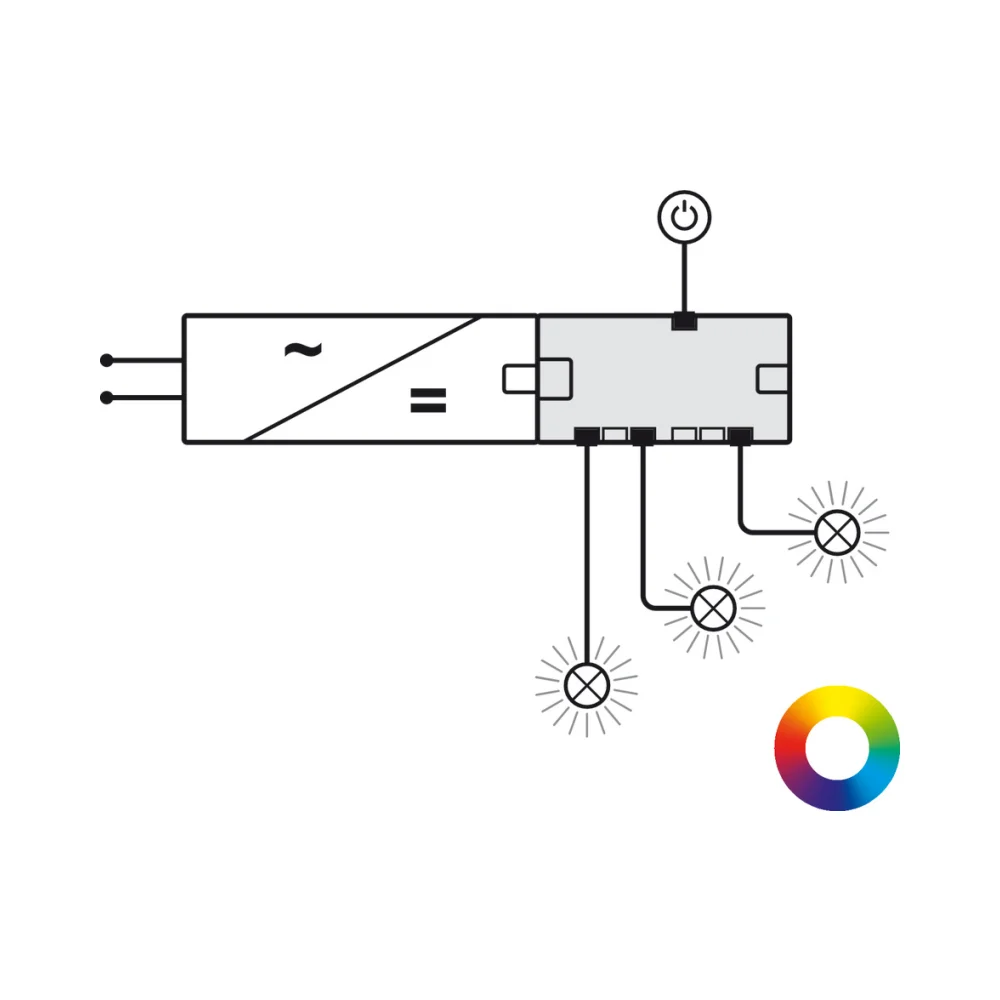

The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.
| Low voltage plug | Loox5 2-pin 24 V |
|---|---|
| Low voltage socket | Loox5 2-pin 24 V, Loox5 2-pin 24 V box to box |
| Input ports | 1 x plug, Loox5 2-pin 24 V box to box |
| Connections | 1 x socket, Loox5 2-pin 24 V box to box |
| Connected output ports | 6 x sockets, Loox5 4-pin RGB 24 V |
| Control input ports | 1 x socket, Loox switch |
| Power rating | 120 W |
| Voltage | 24 V |
| Colour system | RGB |
| Area of application | For switching RGB lights on/off and dimming (0-100%) |
| Version | Box to box, RGB, with switching function for 1 switch |
| Material | Plastic |
| Colour/finish | Black |
| Dim. (L x W x H) | 120 x 50 x 16 mm |
| Switching function | With switching function |
| Standby power consumption | 0.25 W |
| Häfele Lifetime Guarantee | 7 years |
