Description

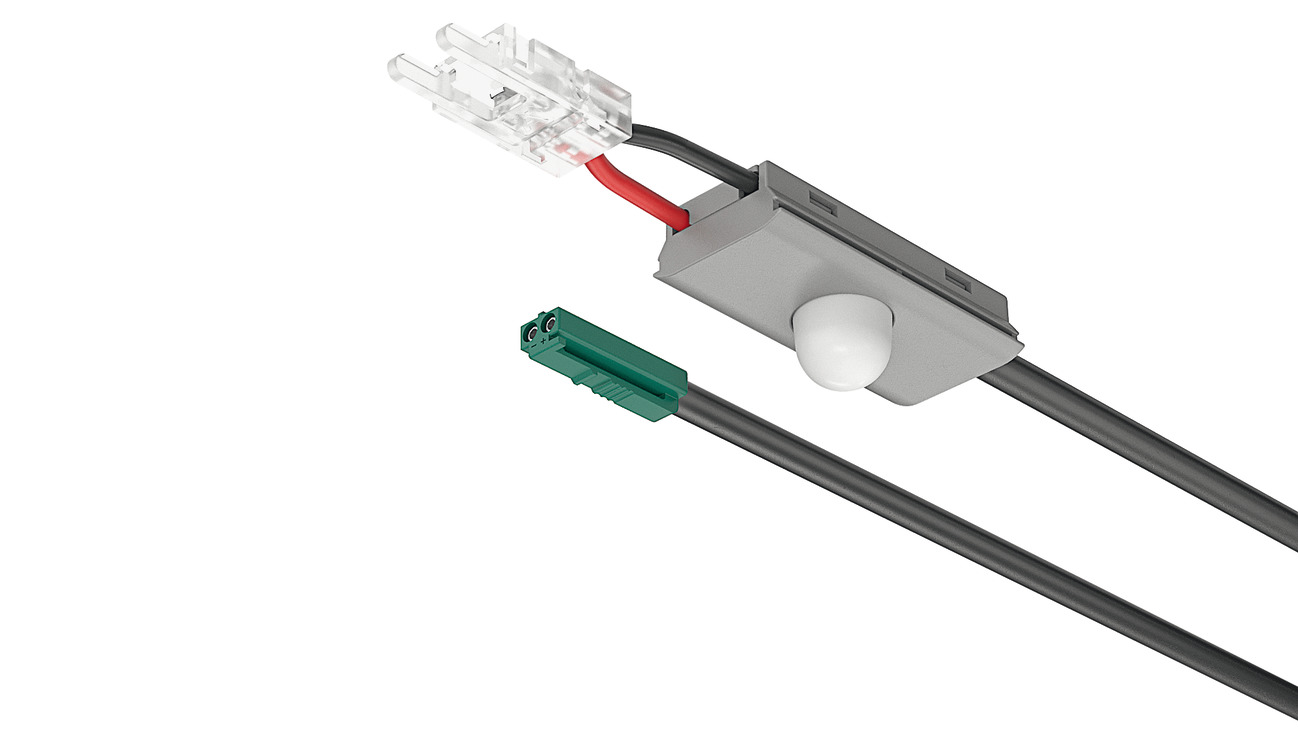

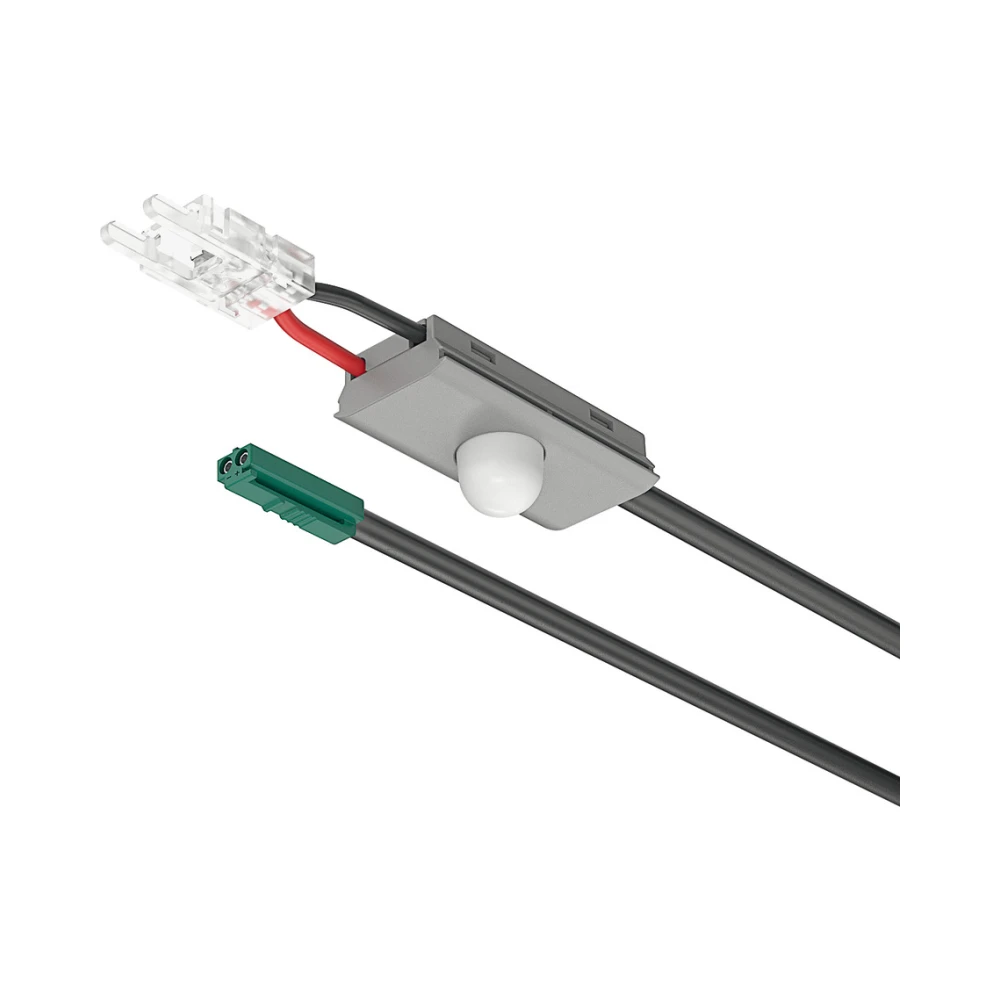

Hafele LED Motion Detector Switch for Loox5 24 V LED Strip Lights in Aluminium Profiles – 90W
- For monochromatic 8 mm Loox5 LED strip lights in aluminium profiles with 16 mm internal width
- Automatic on/off switch
- Touch-free
- Sensor range: 0-3000 mm
- Delay: 30 seconda
- Drill hole Ø: Plug 8 mm
- For push fitting into aluminium profile
- Supplied with:
- 1x switch with clip/plug and 2.0 m lead
- Silver coloured plastic
| Version | Automatic on/off switching |
|---|---|
| Wattage | 90 W |
| Input ports | 1 x plug Loox5 2-pin 24 V |
| Connected output ports | 1 x Clip Loox5 LED strip light 8 mm monochrome |
| Low voltage plug | Loox5 2-pin 24 V |
| Switching function | Automatic on/off |
| Memory function | No |

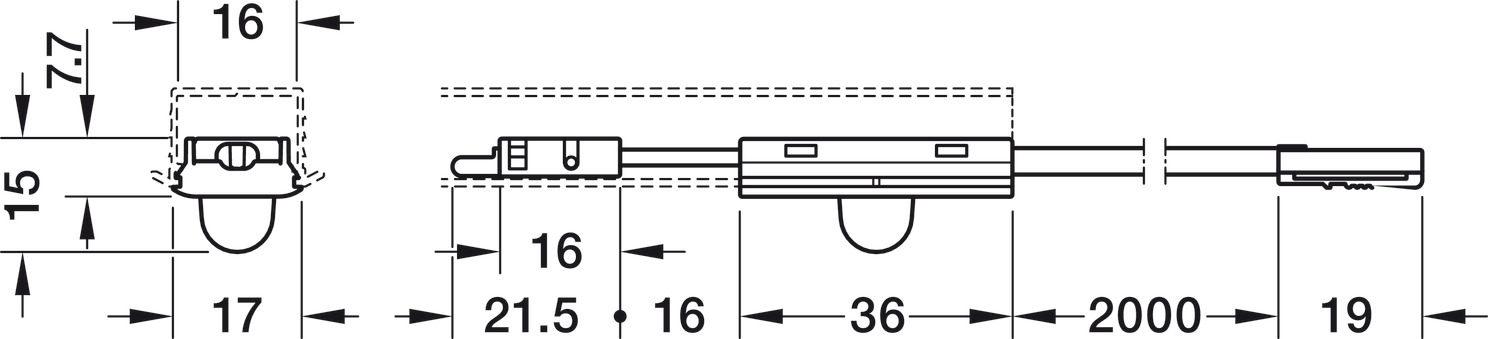

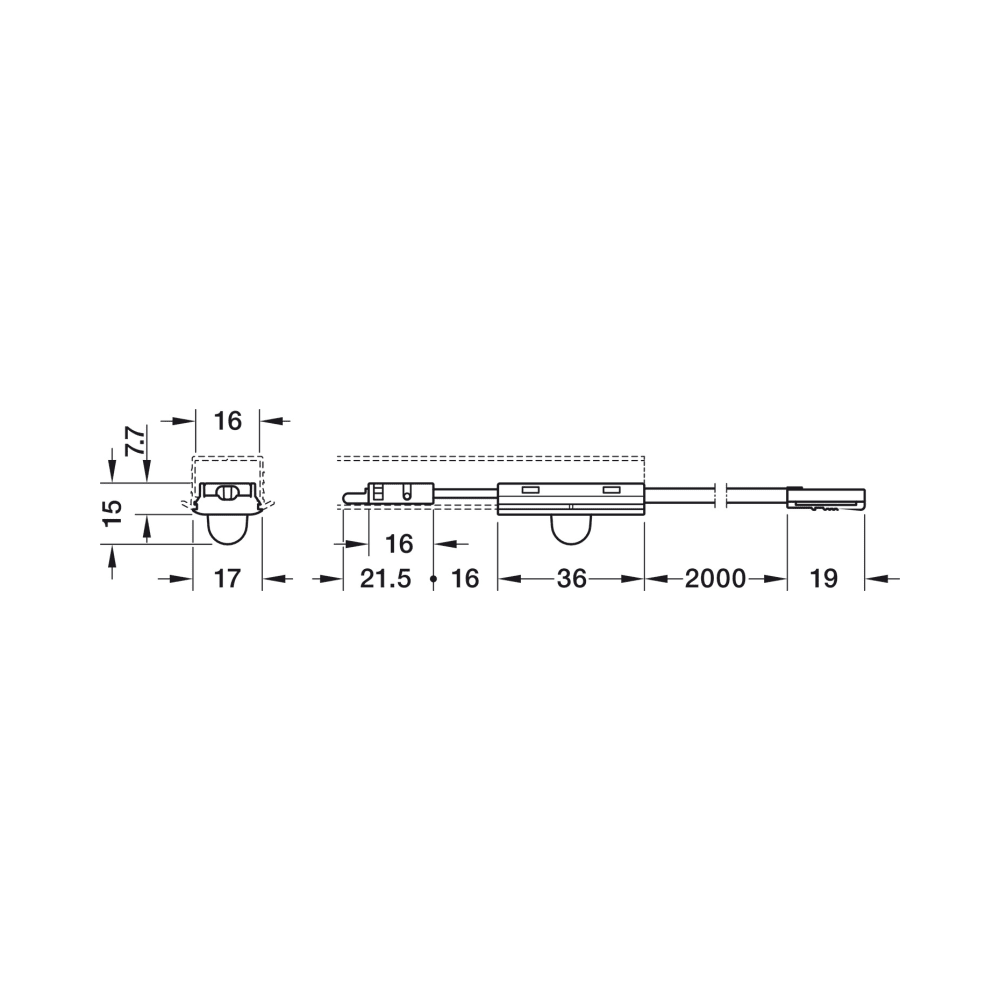

| Length | 36 mm |
| Delay time | 30 s |

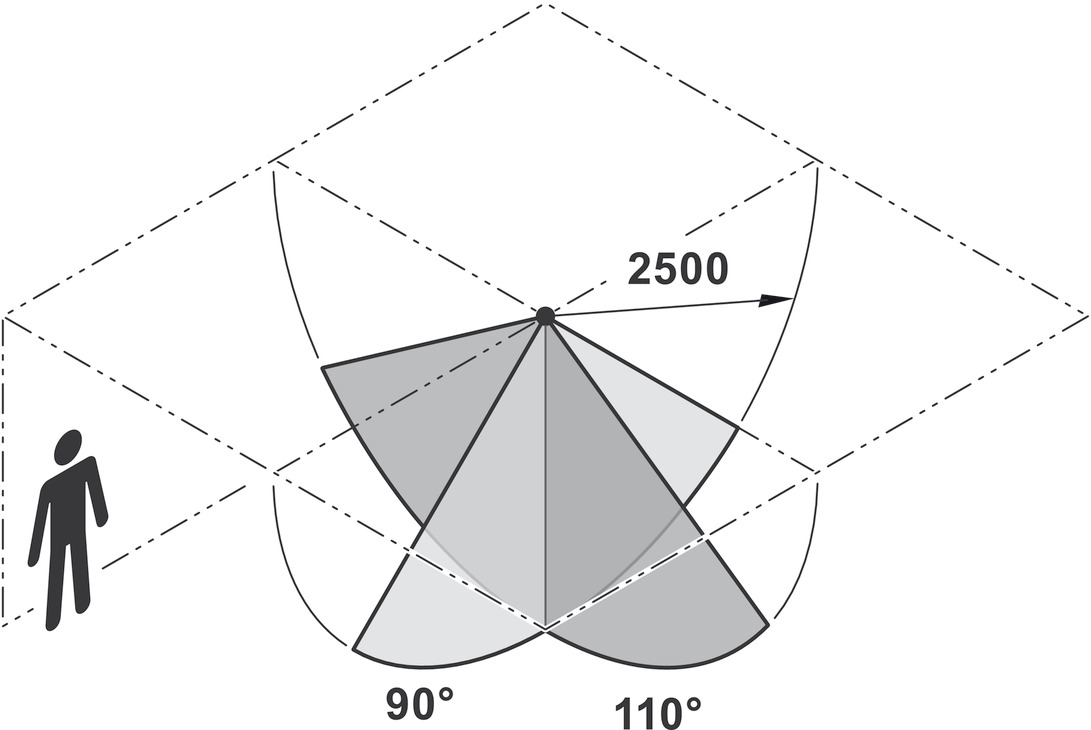

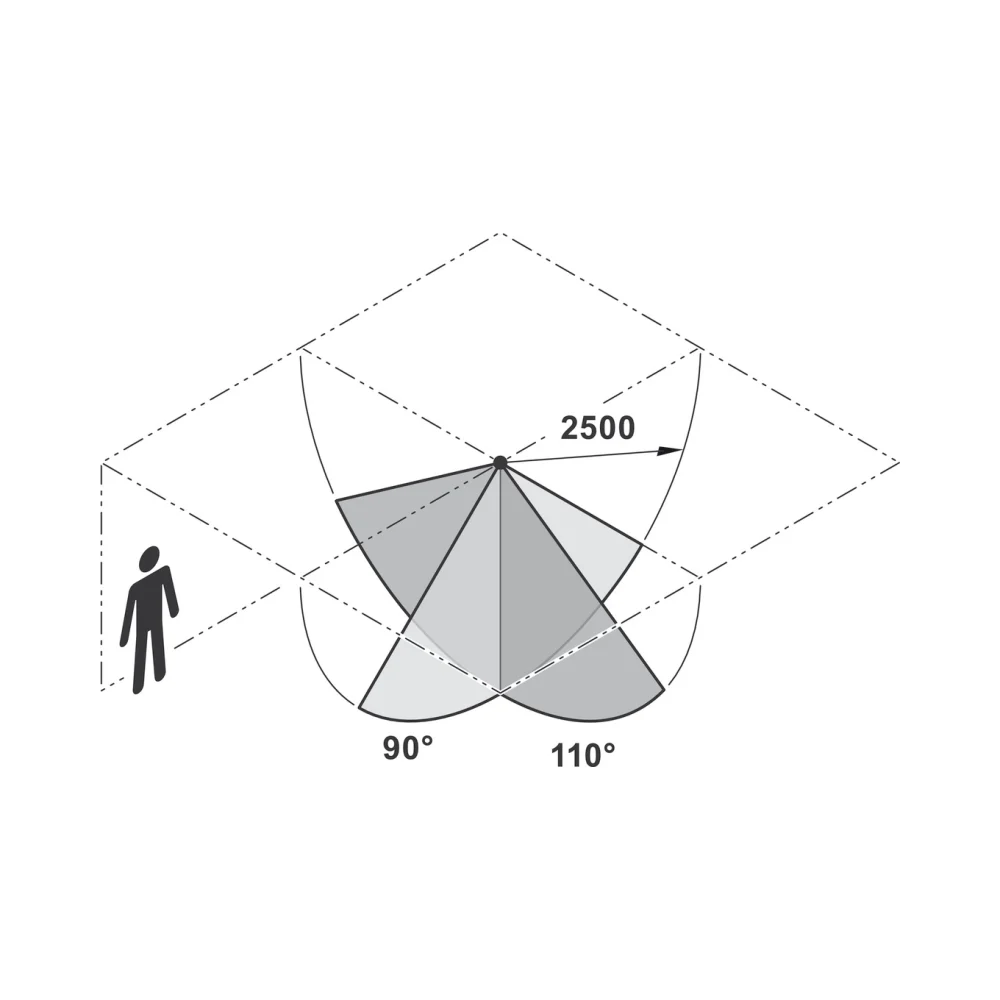

| Sensor range | 0 – 2,500 mm |
| Area of application | For monochromatic 8 mm Loox5 LED strip lights in aluminium profiles with 16 mm interval width |
| Suitable for | Profile 1190 Profile 1191 Profile 1192 Profile 1194 Profile 2190 Profile 2191 |
| Sensor angle | 90° |
| Vertical sensor bracket | 110° |
| Cable length | 2000 mm |
| Plug drill hole Ø | 8 mm |
| Installation | For push fitting |
| Material | Plastic |
| Colour/finish | Silver |
