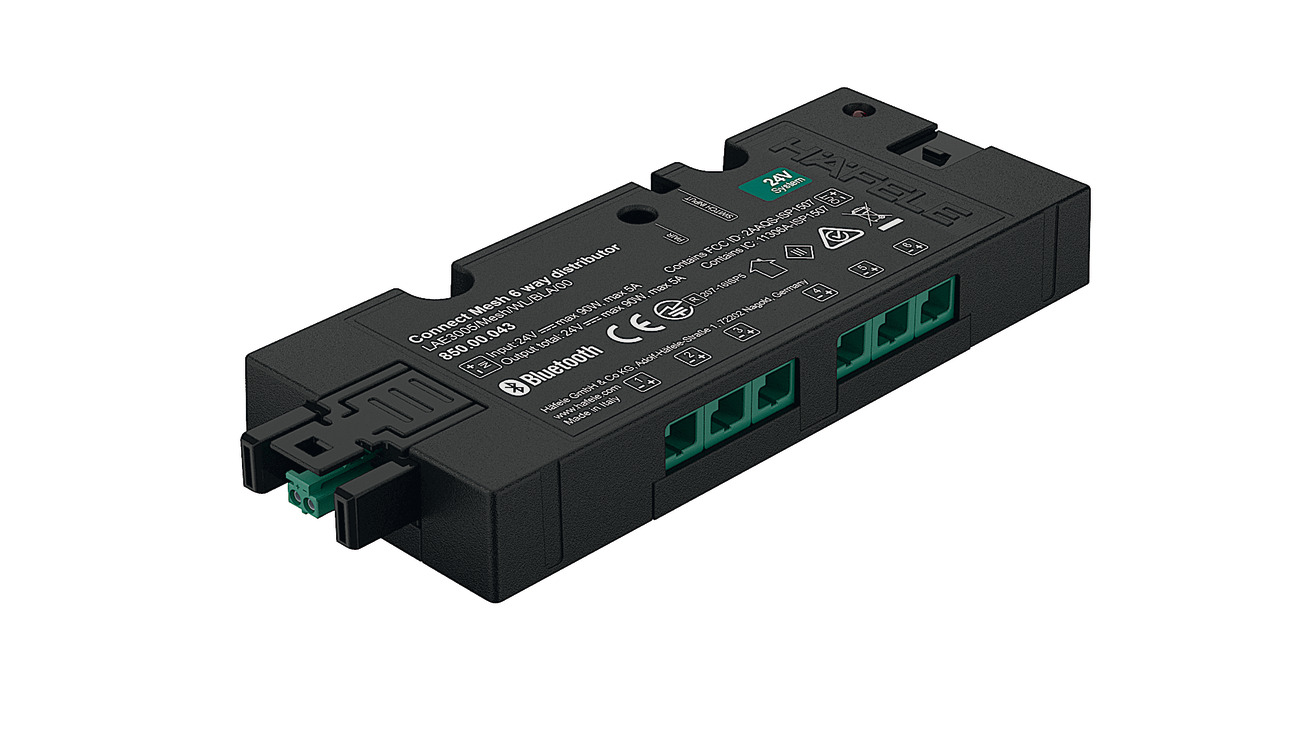

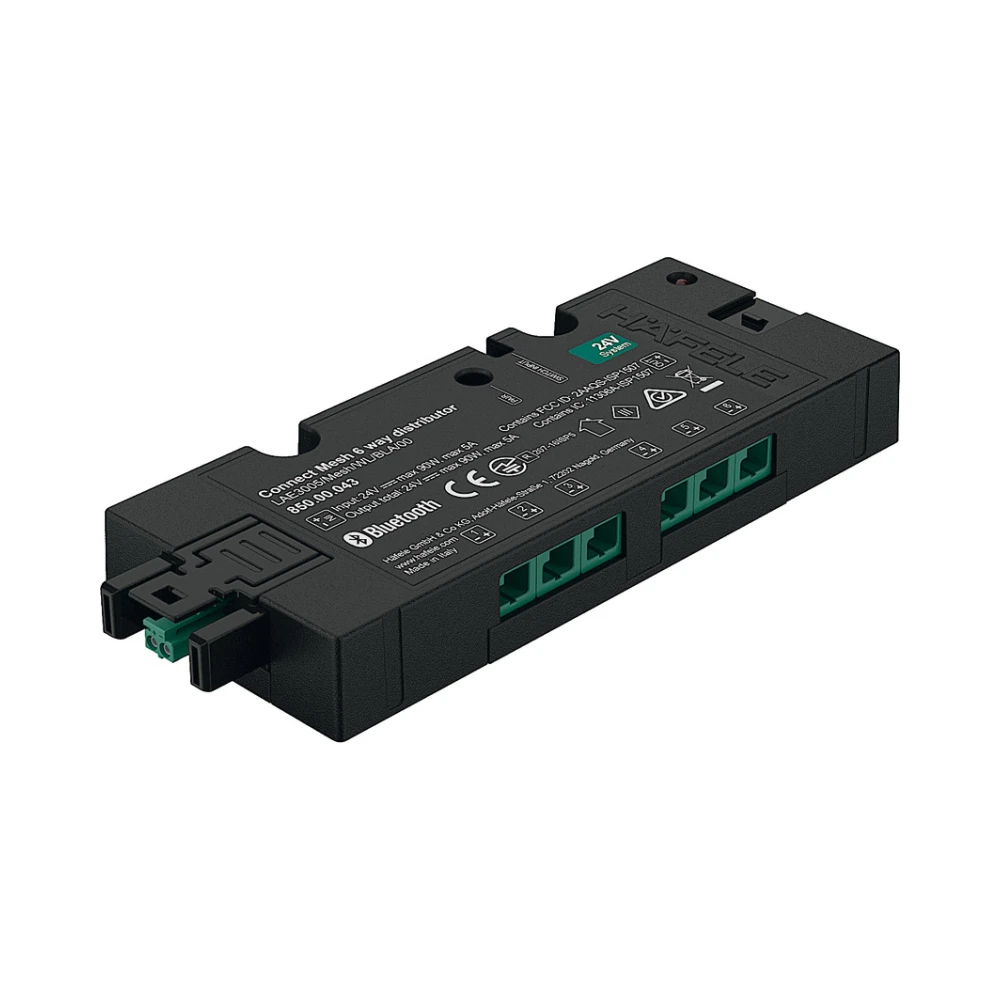

Hafele Connect Mesh Loox5 6-Way Box to Box Distributor with Switching Function – 24V 90W
- Control several light colours on one box
- Each output port can be controlled individually
- With Bluetooth® and switching function
- For on/off switching and dimming (0-100%) of monochromatic lights; or, in conjunction with adapters, for the operation of multi-white lights, RGB lights, and electrically operated fittings
- With programmable switch input for standard Loox switches (switching function programmable via app; each active component can control each passive component)
- Dim. (L x W x H): 51 x 121 x 16 mm
- Plug connection box to box
- Number of connections:
- 1x input port with box to box plug
- 1x output port with box to box socket
- 1x input port switch socket
- 6x output ports consumer sockets (2-core), can be controlled from any active component of the network

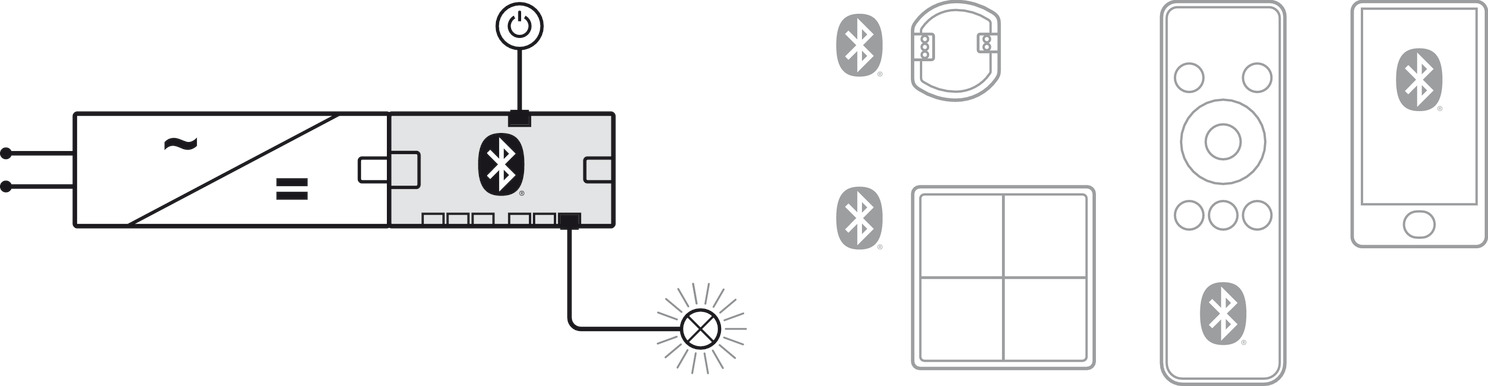

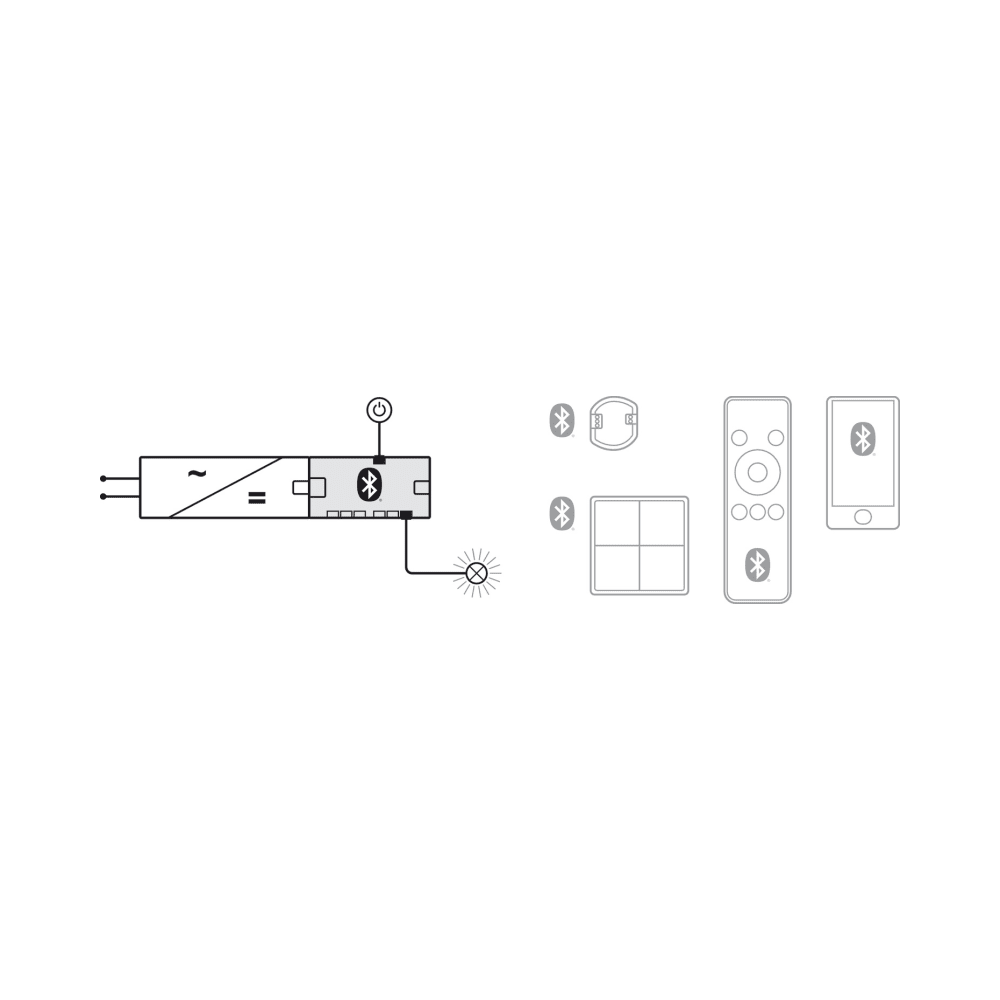

The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.
| Low voltage plug | Loox5 2-pin 24 V box to box |
|---|---|
| Low voltage socket | Loox5 2-pin 24 V, Loox5 2-pin 24 V box to box |
| Input ports | 1 x plug, Loox5 2-pin 24 V box to box |
| Connections | 1 x socket, Loox5 2-pin 24 V box to box |
| Connected output ports | 6 x sockets, Loox5 2-pin 24 V |
| Control input ports | 1 x socket, Loox switch |
| Power rating | 90 W |
| Voltage | 24 V |
| Area of application | For on/off switching and dimming (0-100%) of monochromatic lights; or, in conjunction with adapters, for the operation of multi-white lights, RGB lights, and electrically operated fittings |
| Version | Box to box with switching function |
| Material | Plastic |
| Colour/finish | Black |
| Dim. (L x W x H) | 120 x 50 x 16 mm |
| Switching function | Programmable with Häfele Connect Mesh |
| Distance between controls max. | 10 m |
| Standby power consumption | 0.5 W |
| Häfele Lifetime Guarantee | 7 years |
