Description

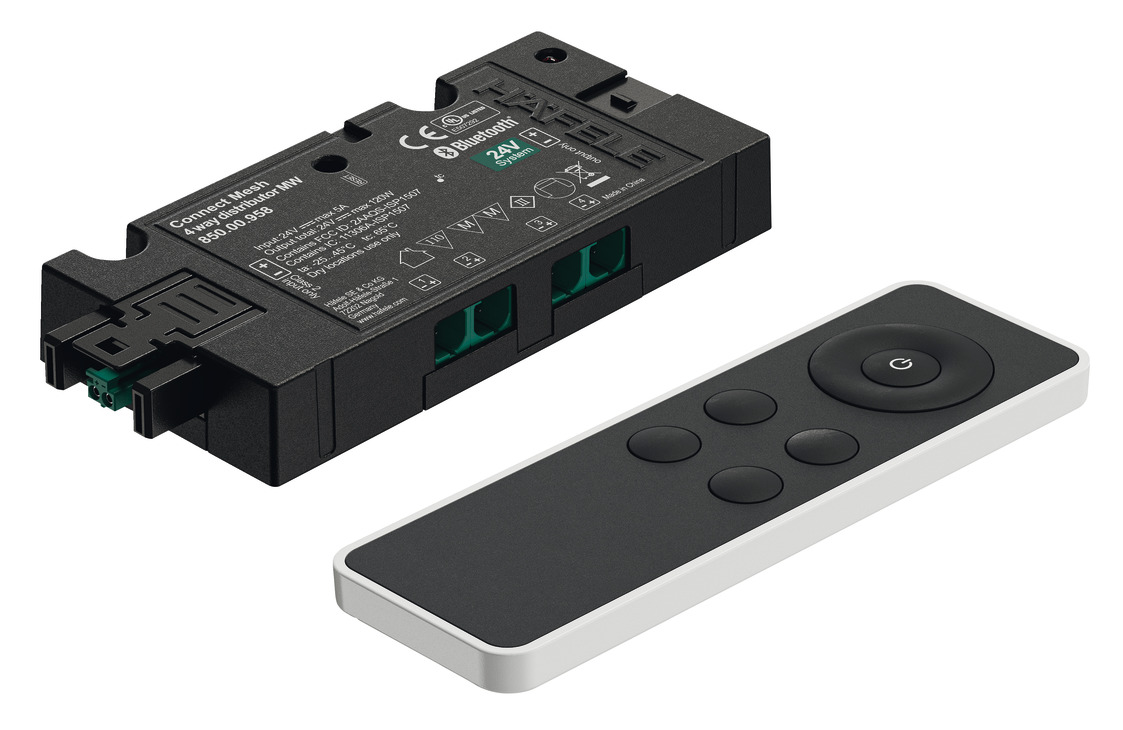

- 4-way distributor in a set with the Häfele Connect Mesh Eco remote control
- For switching on/off and dimming (0-100%) of multi-white lights

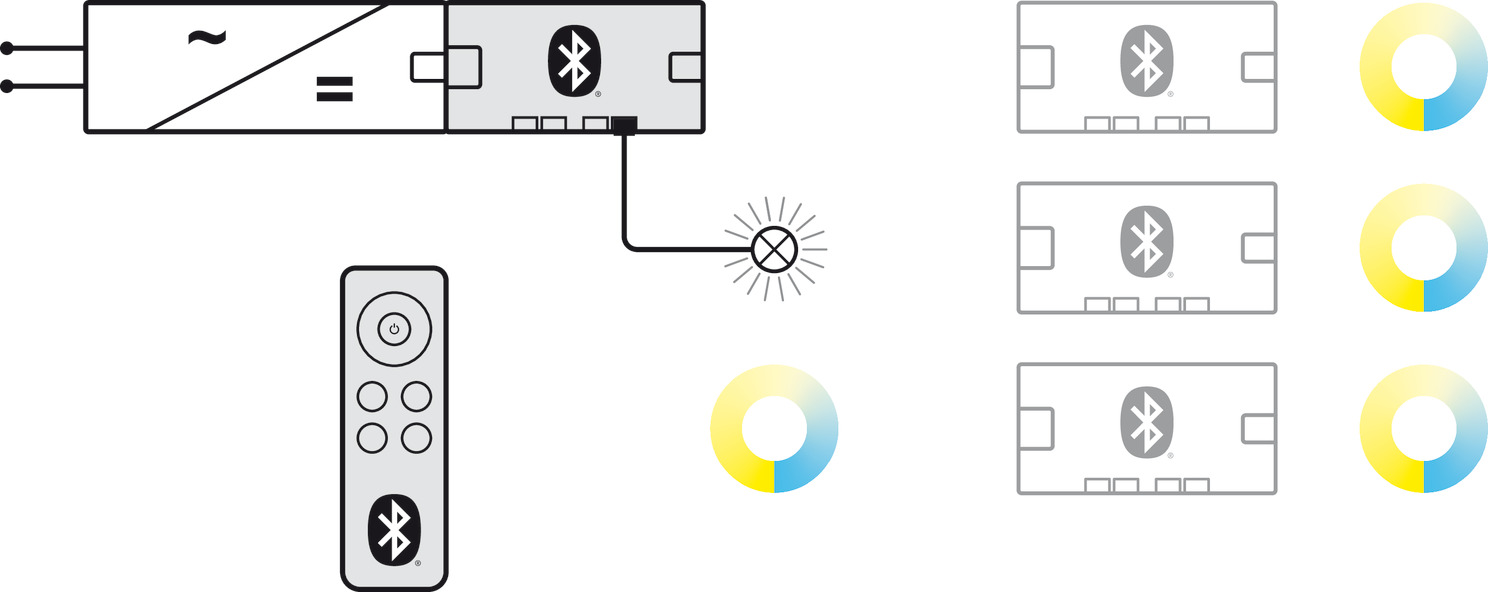

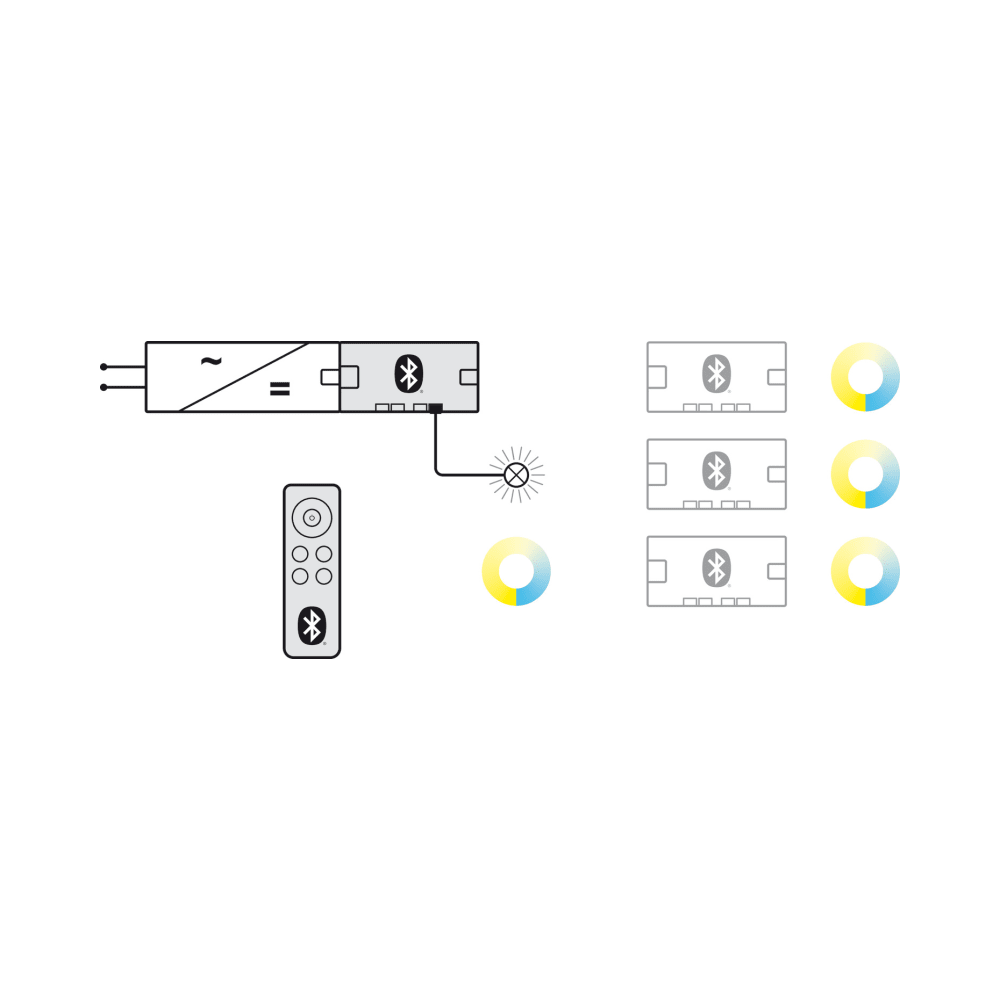

- Use the remote control to select one of the four outputs (output 1, 2, 3 or 4) and simultaneously control this output to all distributors of the network (on/off, dimming level)
- Dimensions (L x W x H):
- Distributor: 105 x 50 x 16 mm
- Remote control: 125 x 40 x 12 mm
- Number of connections:
- 1x input port with box to box plug
- 4x output port with box to box socket
- 4x output ports consumer sockets
- Supplied with:
- 1x 4-way distributor, multi-white
- 1x remote control
- Black plastic
| Low voltage plug | Loox5 2-pin 24 V |
|---|---|
| Memory function | Yes (also in currentless condition) |
| Power rating | 72 W |
| Current carrying capacity | 3 A |
| Colour system | Multi-white |
| Area of application | For on/off switching and dimming (0-100%) and multi-white colour change |
| Suitable for | Multi-white lights |
| Material | Plastic |
| Colour/finish | Black |
| Dimensions | Distributor: 105 x 50 x 16 mm Remote control: 125 x 40 x 12 mm |
| Number of controls for each installation max. | 4 |
| Distance between controls max. | 10 m |
| Distance between controls max. | 0.5 W |
| Low voltage socket | Loox5 2-pin 24 V |
Can be extended to up to 4 distributors (multi-white). Please order extension distributor and drivers separately.
