Häfele 83389333 Loox Motion Detector Adjustable Modular

Description

Loox Motion Detector Adjustable Modular

Häfele 83389333

The Häfele 83389333 Loox Motion Detector offers effortless lighting control with its automatic soft on/off switching. Designed to activate lights based on movement, it allows you to adjust the delay time to 0.5, 1, or 3 minutes, making it both convenient and energy-efficient. This motion detector is a practical solution for areas where automatic lighting control enhances user experience.

Key Features of Häfele 83389333 Loox Motion Detector

• Automatic soft on/off lighting with adjustable delay times: 0.5, 1, or 3 minutes
• Recessed or surface-mounted for flexible installation
• Comes with three color sleeves (white, grey, black) for easy customisation
• Compact design, ideal for discreet integration into furniture or other areas

Ideal Applications:

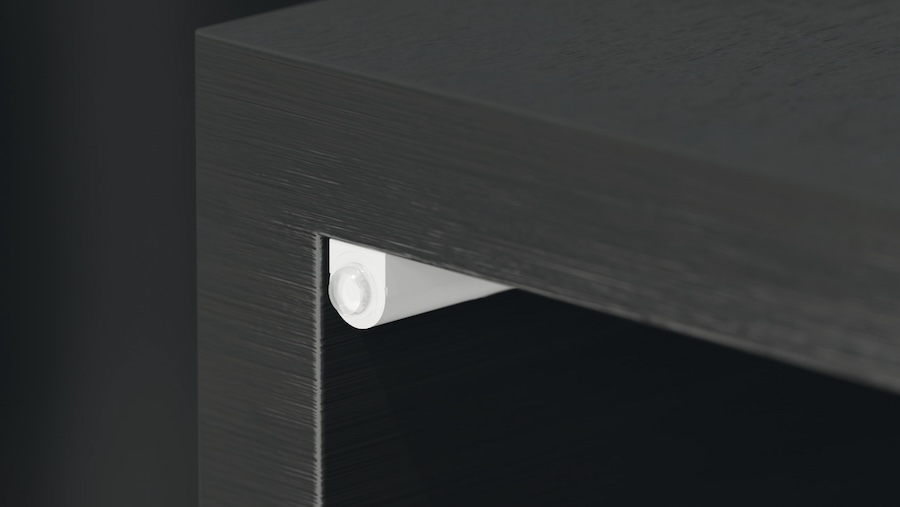

This motion detector is perfect for cabinet lighting, wardrobe lighting, and storage areas, where automatic light activation improves both convenience and energy efficiency. Moreover, the adjustable delay time allows for precise control of how long the lights stay on.

Installation and Setup:

Thanks to its 12mm drill hole, installation is straightforward and adaptable for both recessed and surface-mounted setups. Additionally, the integrated microswitch allows you to easily adjust the delay time to 30, 60, or 180 seconds. With a sensor range of up to 3000mm and a 90° detection angle, it ensures efficient performance in a wide variety of spaces.

Technical Specifications:

• Switching function: Automatic soft on/off
• Delay time: Adjustable 0.5, 1, or 3 minutes
• Drill hole: Ø 12mm
• Sensor range: 0-3000mm

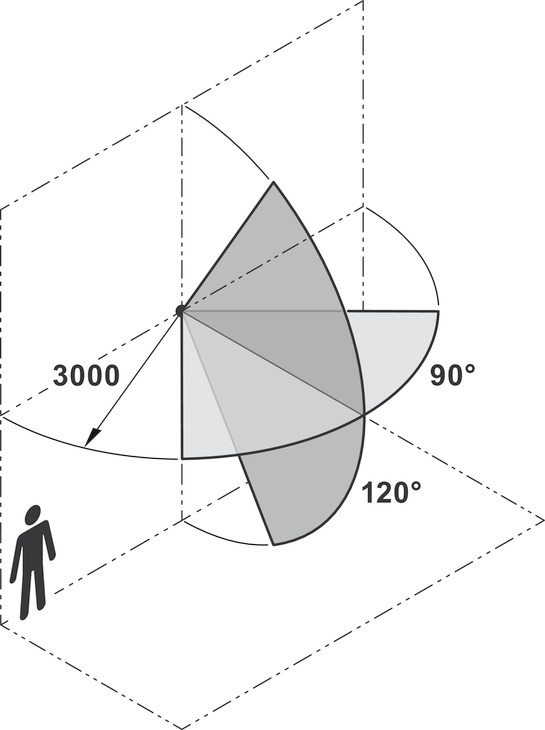

• Sensor angle: 90° horizontal, 120° vertical
• Power consumption: 0.10W
• Material: Plastic

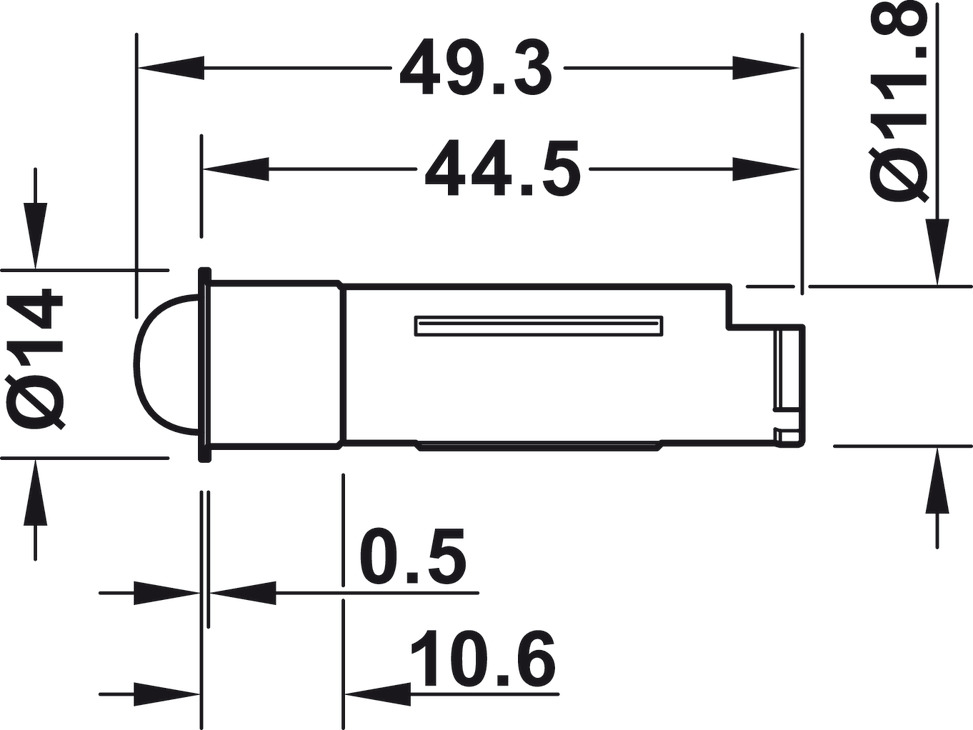

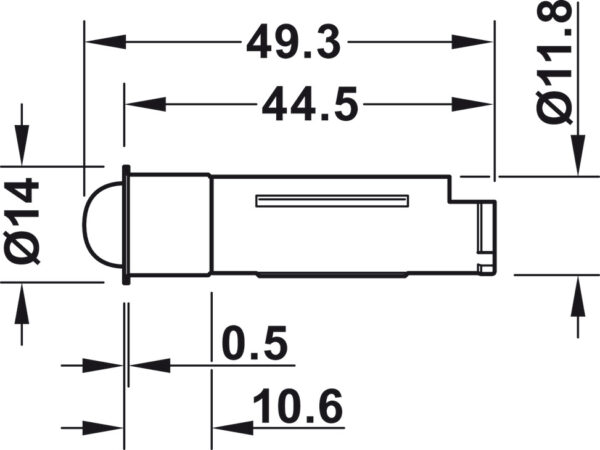

• Dimensions: Ø 12mm x 44.5mm
• Rated IP20 for dry indoor use

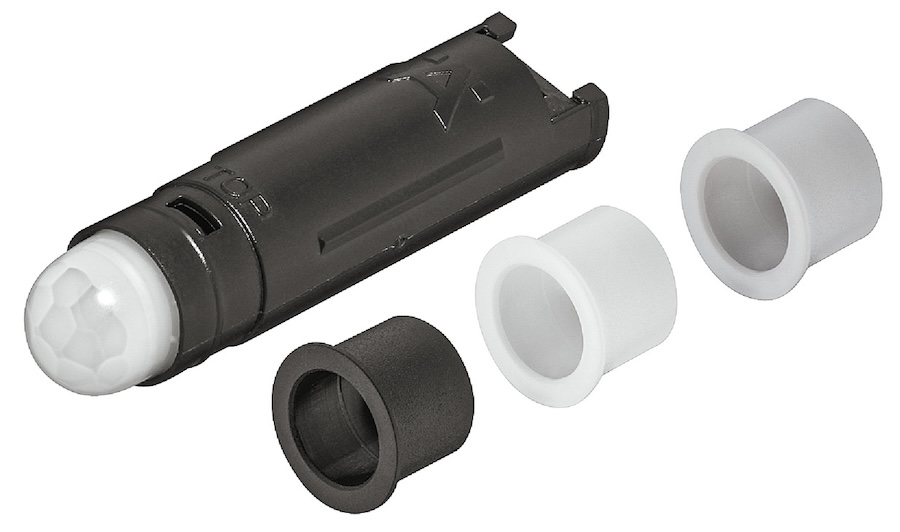

Supplied With:

• 1x Adjustable motion detector (black housing)
• 3x Color sleeves (white, grey, black)

Order Reference:

Make sure to order the 2m lead with snap-in connector separately (Cat. No. 833.89.142) to complete the setup.

Additional Information:

This motion detector is designed for enclosed, dry rooms. The customizable delay time allows you to set it according to the specific needs of your space, ensuring that lights automatically turn off after the desired duration.

Warranty Information:

Backed by the Häfele Lifetime Guarantee, this product is covered for domestic use, ensuring long-lasting performance. For commercial environments, a 12-month warranty applies.
