Gewiss GW70436P 32A 4-Pole IP66/IP67/IP69 Rotary Isolator Switch

Description

32A 4-Pole IP66/IP67/IP69 Rotary Isolator Switch

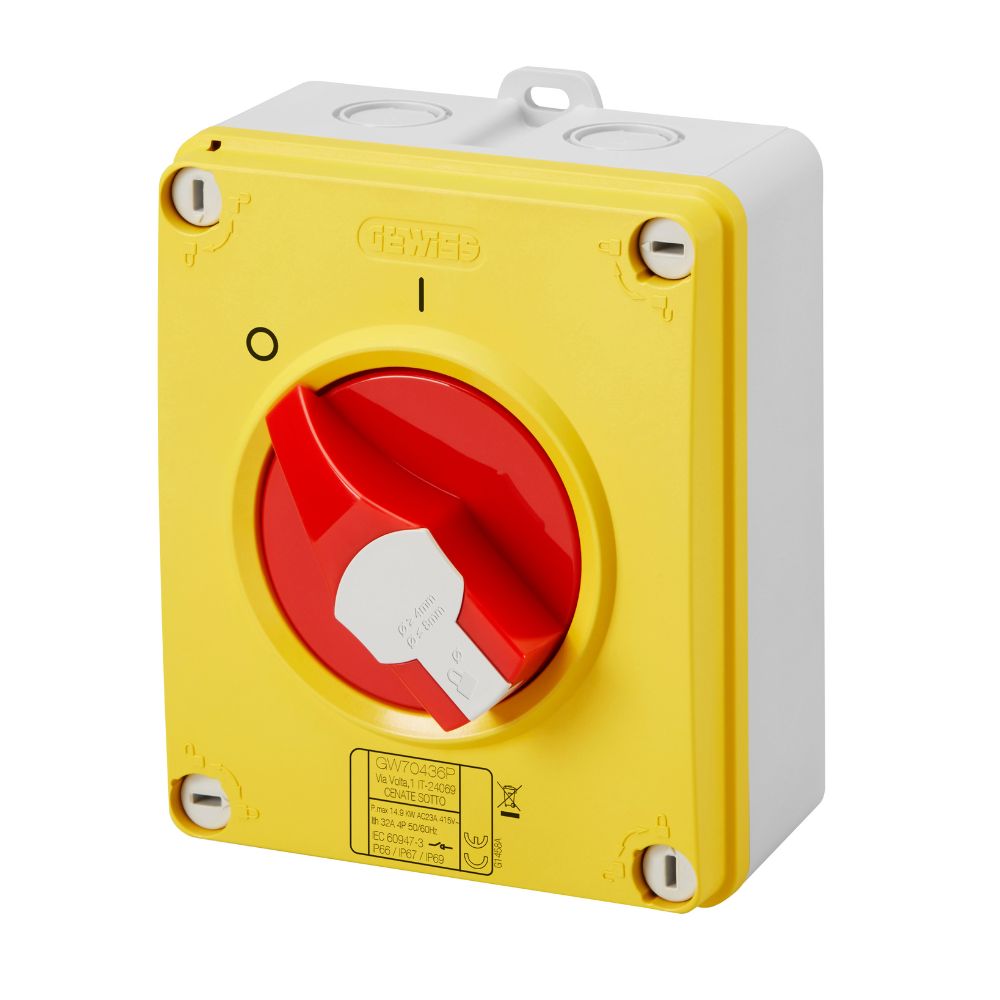

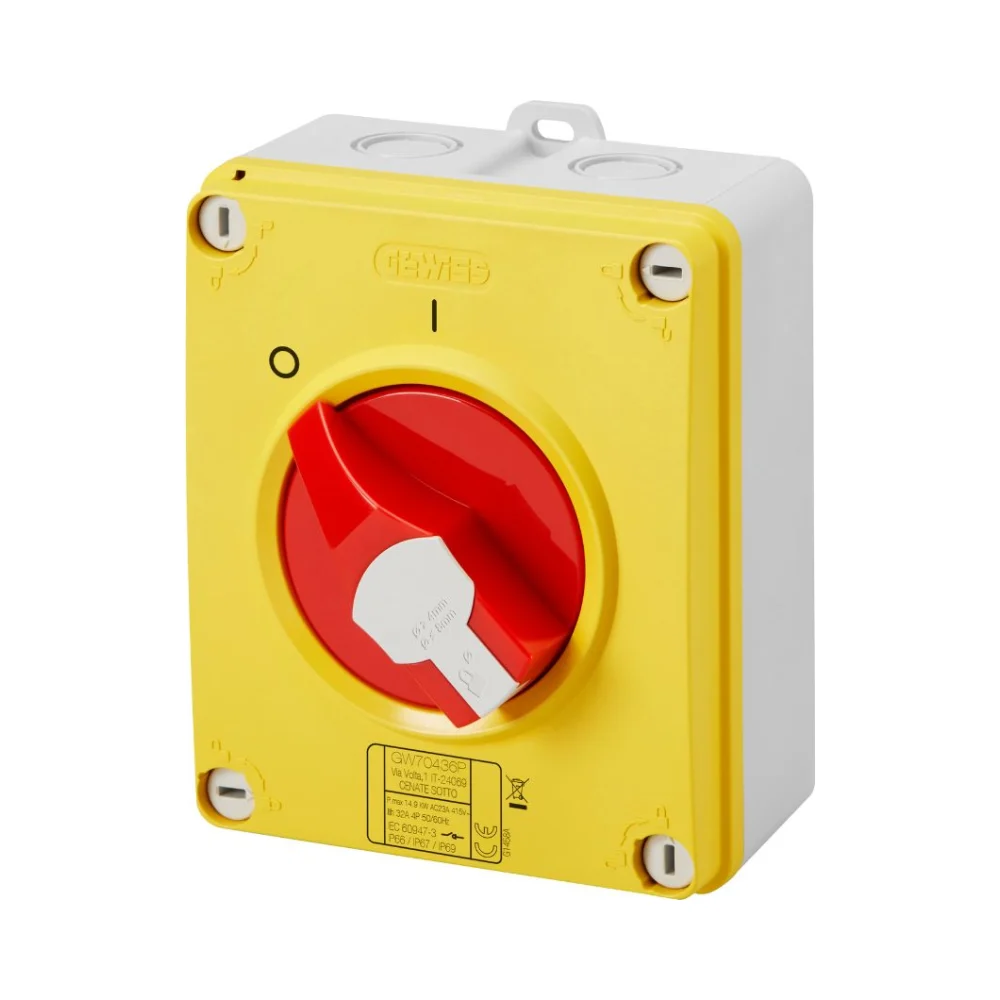

Gewiss GW70436P 32A Rotary Isolator– Lockable Emergency Stop with Red Knob

The Gewiss GW70436P rotary isolator switch is built for reliable circuit isolation and emergency shutdowns in tough environments. With a 32A rating and a 4-pole configuration, it ensures full electrical disconnection for enhanced safety.

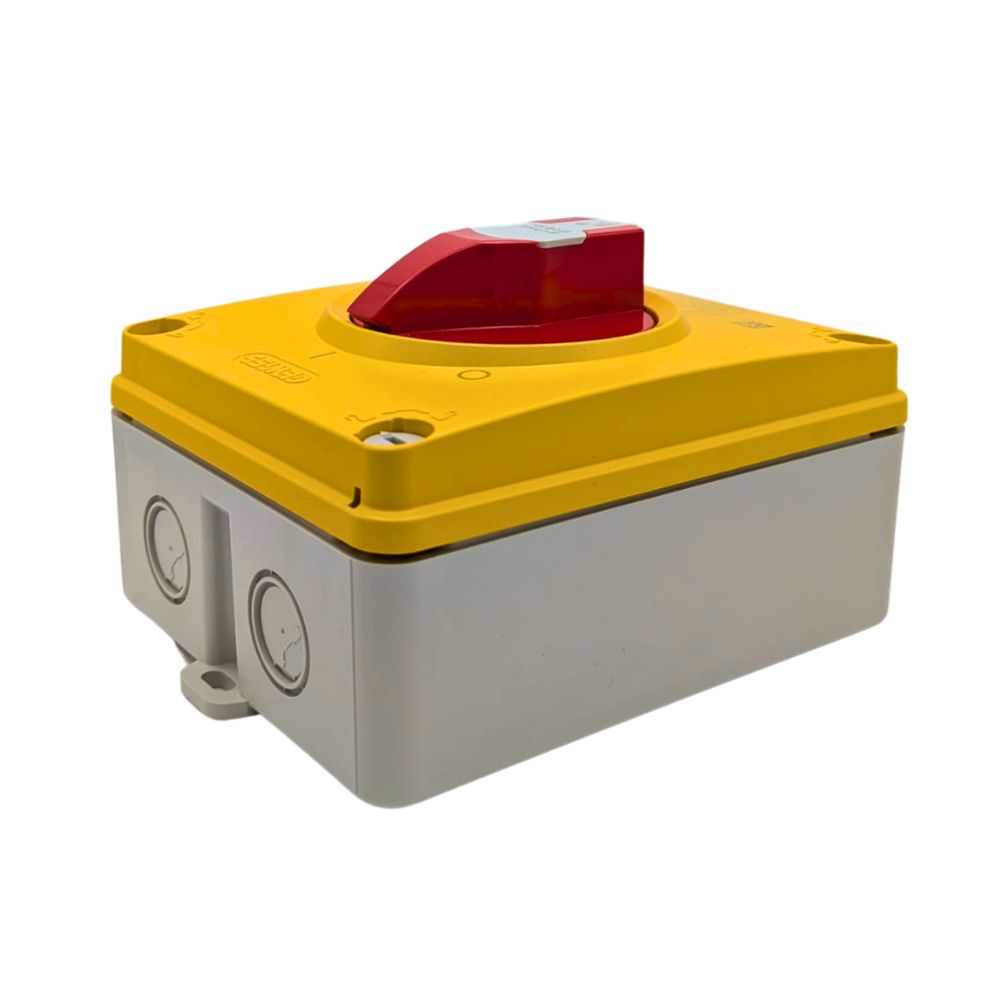

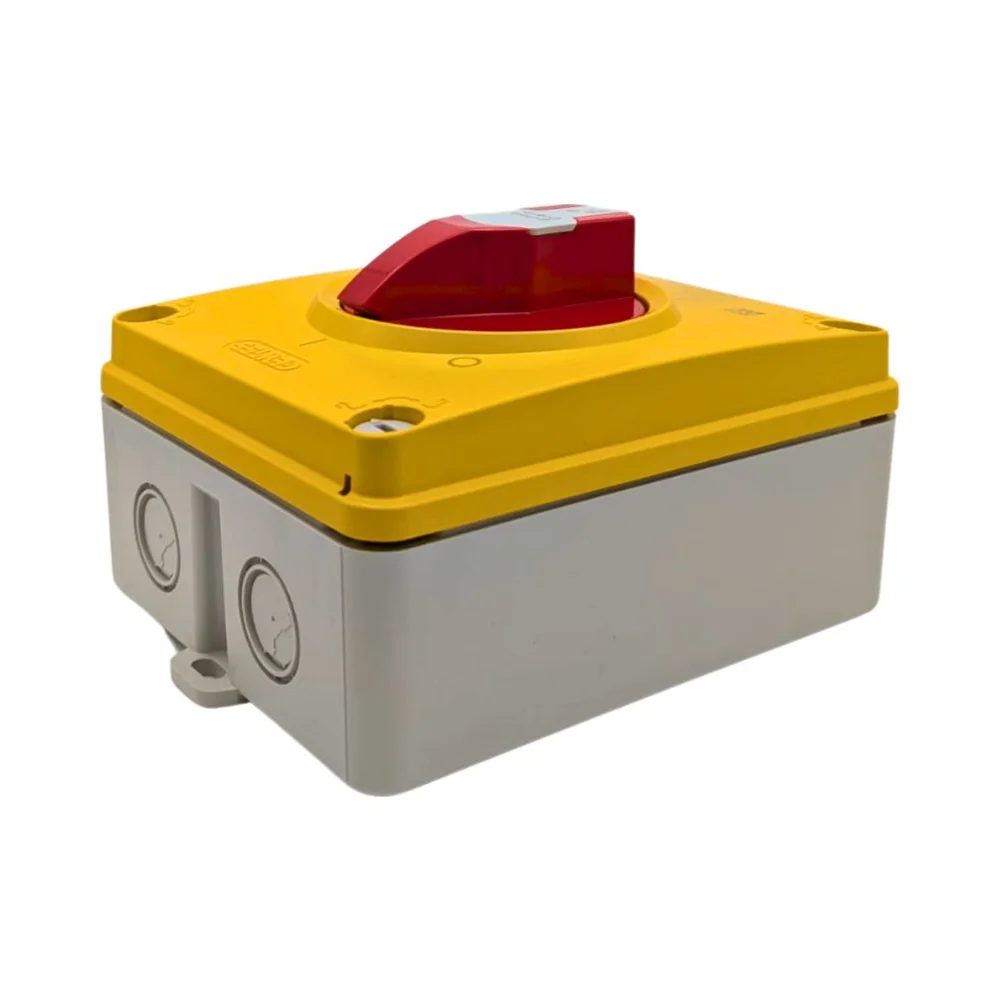

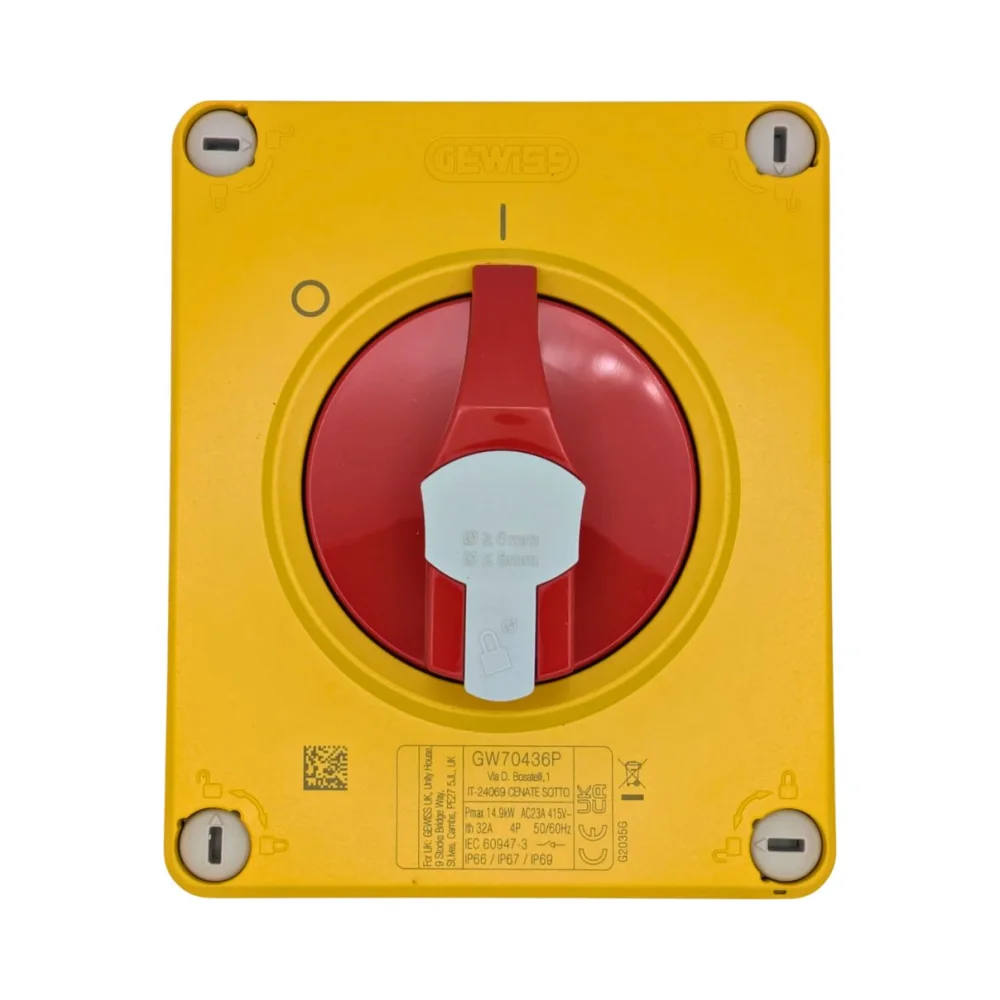

Housed in a durable insulating box, this switch offers IP66, IP67, and IP69 protection—making it resistant to dust, water jets, and temporary submersion. The bold red knob improves visibility and can be locked in the OFF position with up to three padlocks (max shackle Ø8 mm), adding a crucial layer of safety during maintenance.

⚙️ Key Features of the Gewiss GW70436P 32A Rotary Isolator

• Amperage: 32A
• Poles: 4-pole for complete isolation
• Protection Ratings: IP66, IP67, IP69 – dust-tight, waterproof, and immersion-proof

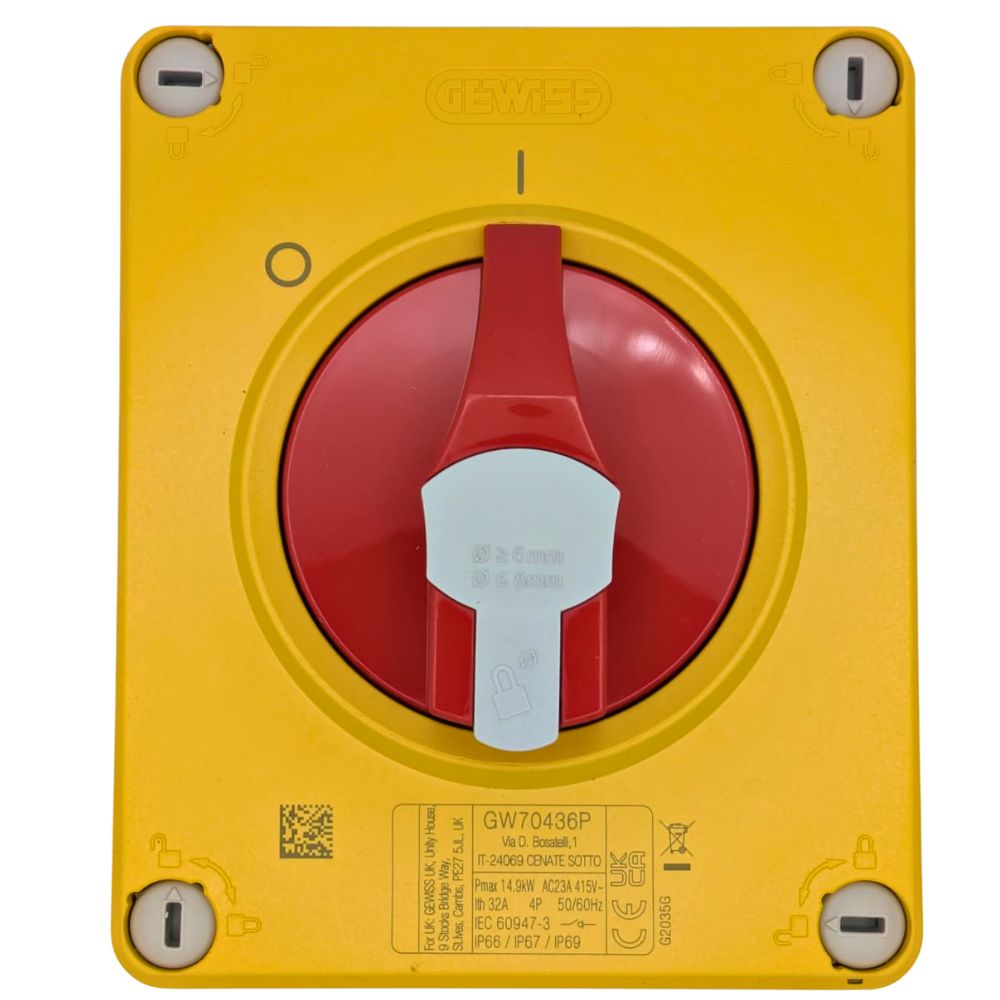

• Knob: Red rotary emergency stop
• Lockable Design: YES (max. 3 locks in OFF position, shackle Ø max. 8 mm)

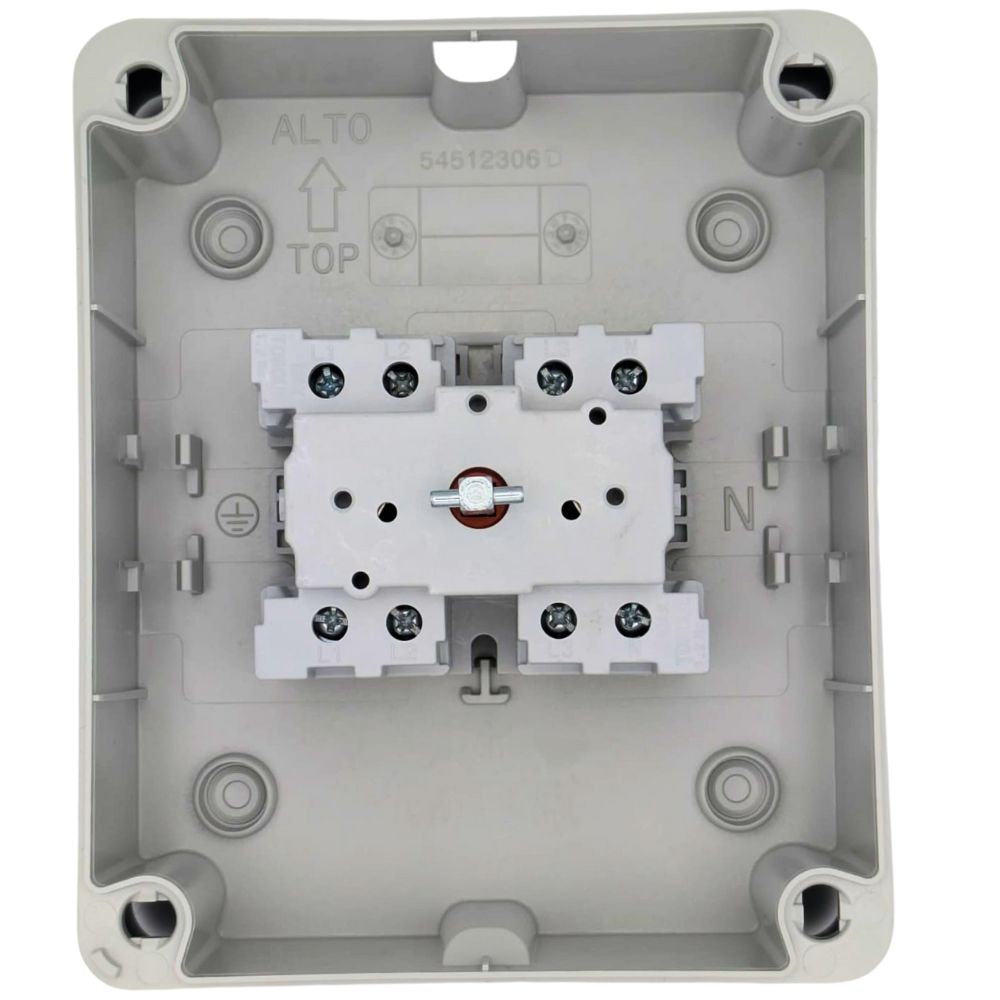

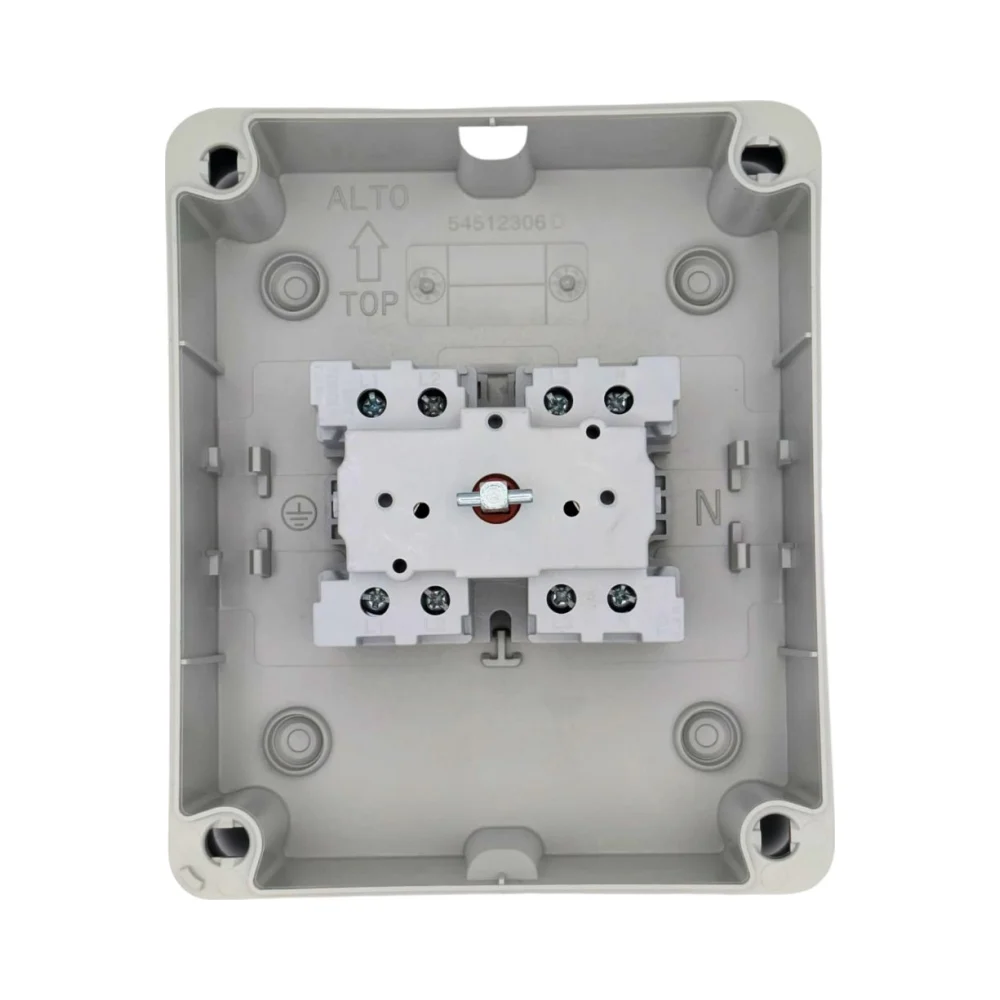

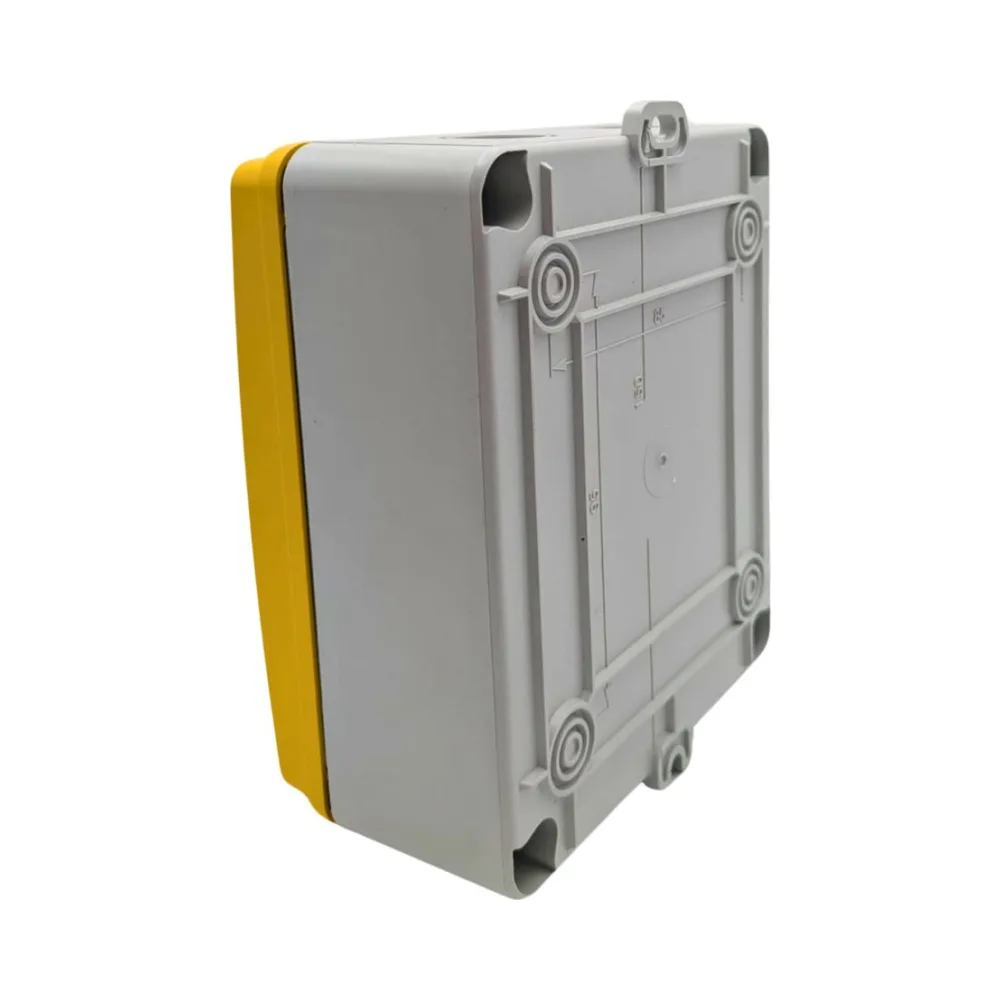

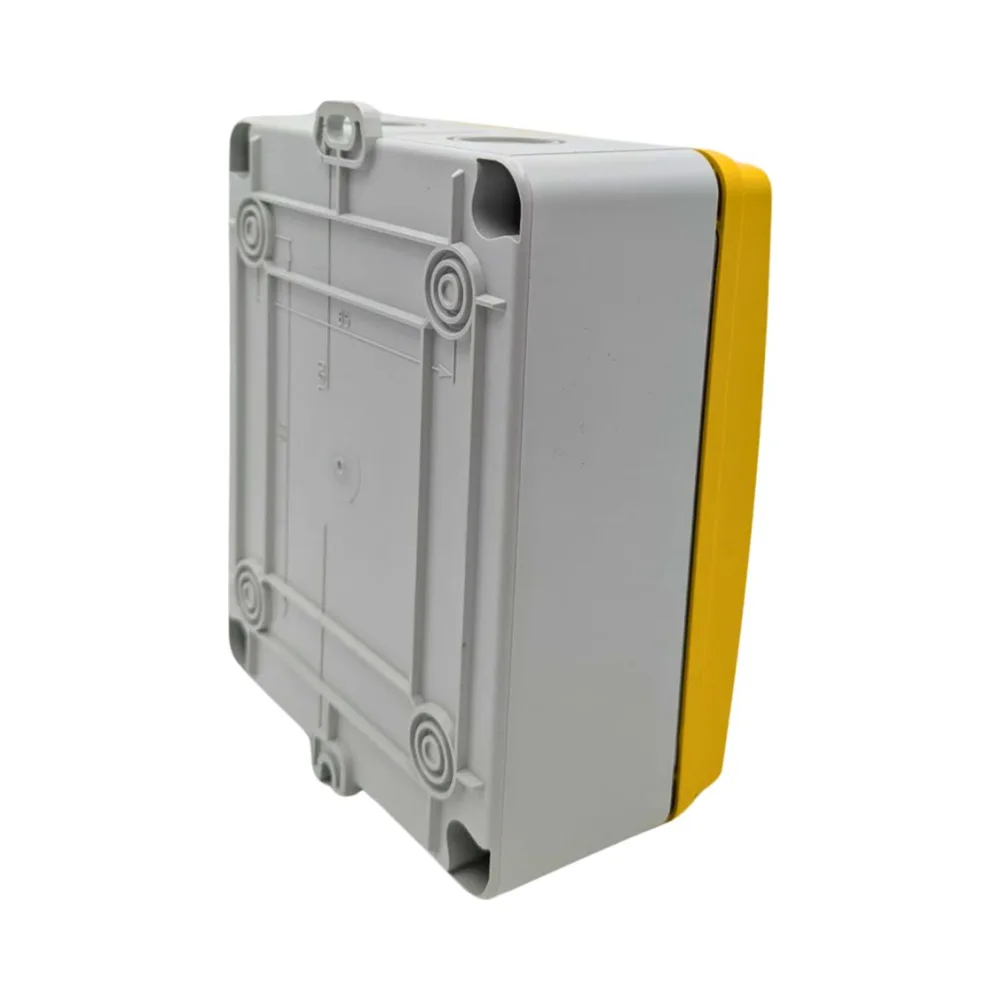

• Enclosure: Insulating material with sealable lid screws (4 x 1/4 turn)
• Temperature Range: -25°C to +60°C
• Impact Resistance: IK08

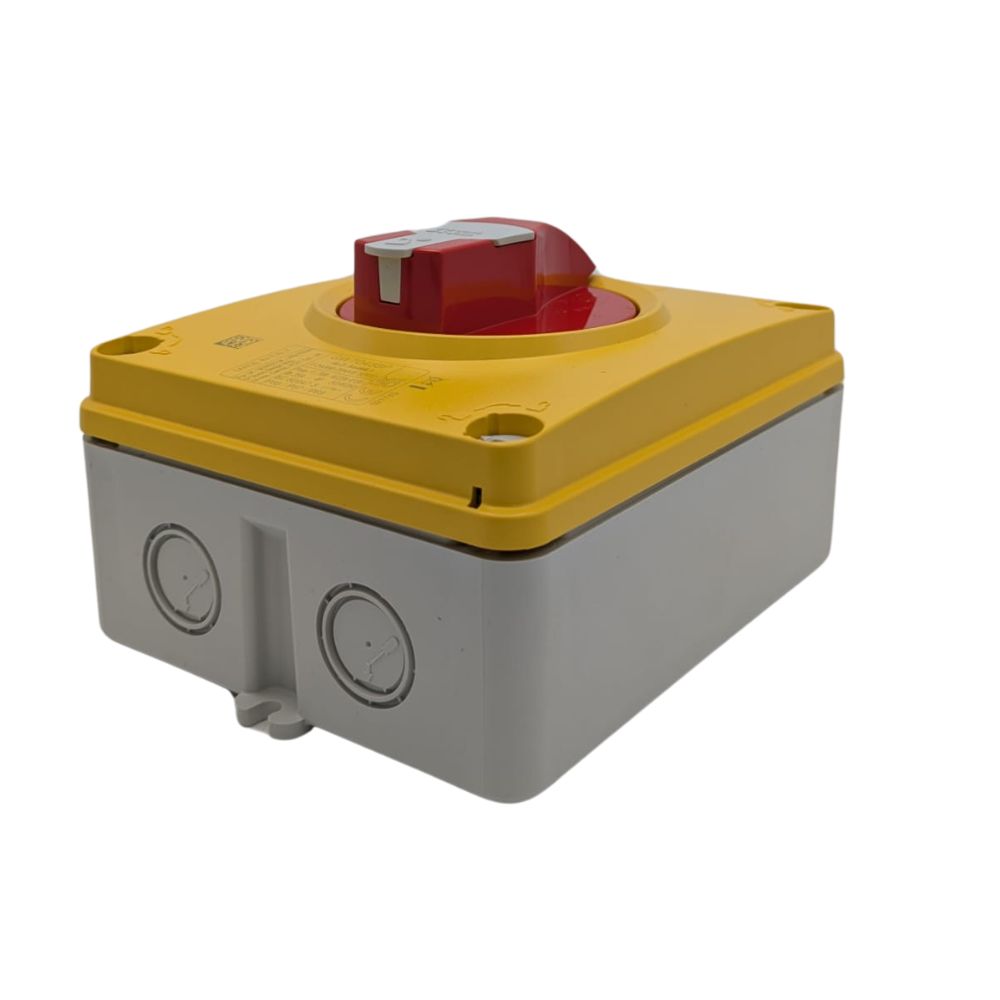

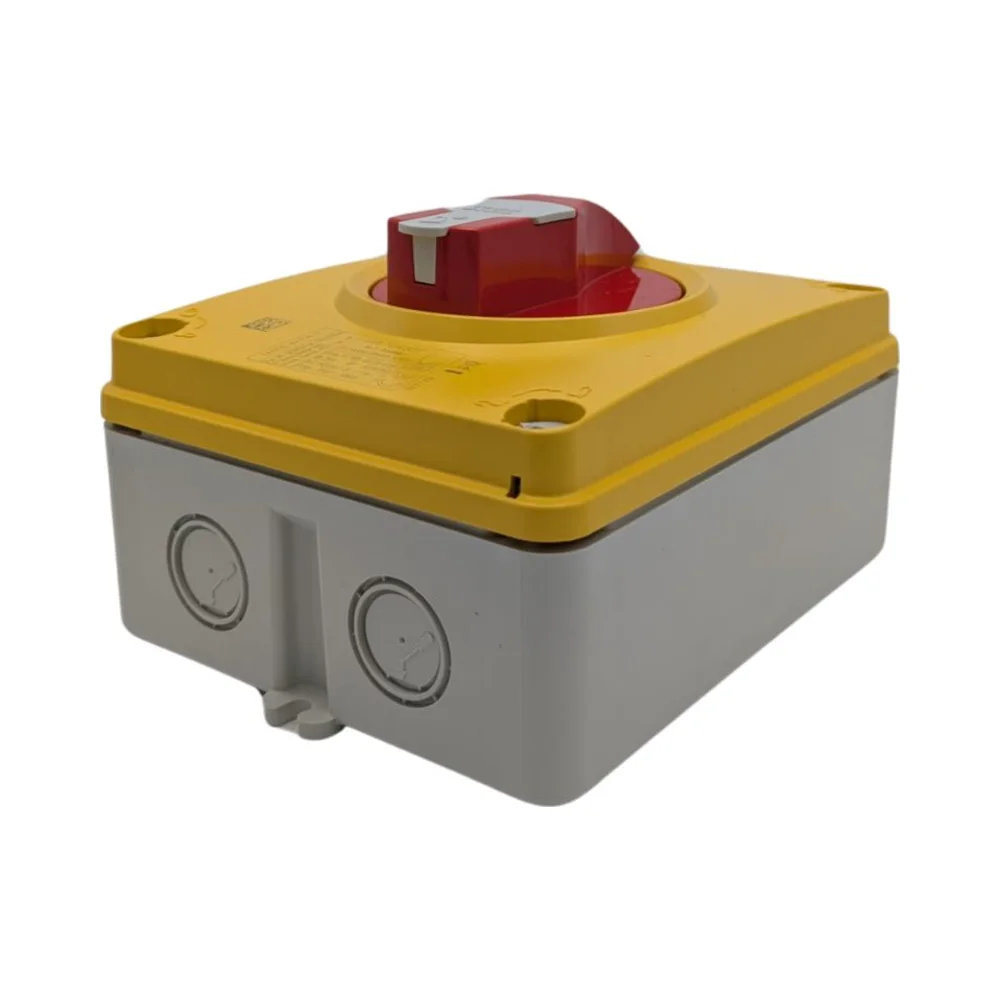

• Cable Entry: 2 x M20/25 top + 2 x M20/25 bottom
• Cable Size Support: 1 mm² to 10 mm²
• Auxiliary Contacts: Supports up to 2 (1 per side)
• Compliance: Conforms to IEC standards

✅ Why Choose Gewiss GW70436P 32A Rotary Isolator?

• Improves safety with lockable emergency stop
• High durability in extreme environments
• Fast installation and wiring thanks to thoughtful design
• Trusted brand with proven reliability from the 70 RT HP range
• Ideal for industrial, commercial, and outdoor installations

🌐 Ideal Use Cases

• Industrial machinery
• HVAC systems
• Solar installations
• Outdoor control panels
• Power distribution setups

❓ Frequently Asked Questions (FAQs)

• Q: Can I use it outdoors?
  A: Yes, it’s IP66/IP67/IP69 rated and built for outdoor conditions.
• Q: Is it lockable?
  A: Yes,  (max. 3 locks in OFF position, shackle Ø max. 8 mm)
• Q: What is the temperature range?
  A: It operates between -25°C and +60°C.
• Q: Can I add auxiliary contacts?
  A: Yes, up to 2 auxiliary contacts are supported (one per side).
• Q: What size cables does it support?
  A: Cable sizes from 1 mm² to 10 mm² are compatible.

Summary of the Gewiss GW70436P 32A Rotary Isolator

The Gewiss GW70436P rotary isolator switch is a robust, 32A 4-pole emergency disconnect unit built for demanding environments. Its IP66/IP67/IP69 ratings protect it from dust, jets, and immersion. With a lockable red knob that supports up to three padlocks in the OFF position, this unit ensures safe maintenance. It features an impact-resistant enclosure, supports auxiliary contacts, and handles cable sizes from 1 mm² to 10 mm².

Whether used in industrial plants, outdoor panels, or solar arrays, this isolator guarantees reliable performance and fast installation.
