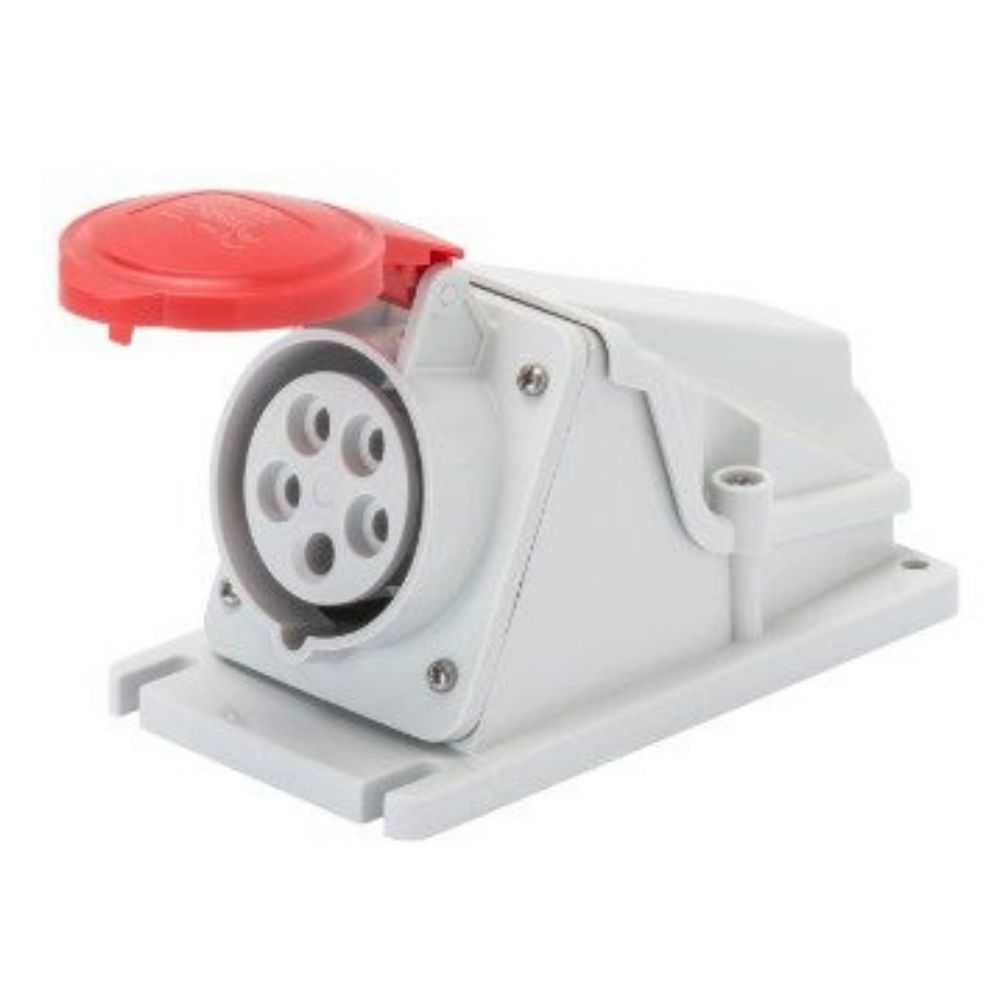

Gewiss GW62493 32A 5 Pin Socket 415V Angled Surface-Mounting – IP44

Description

32A 3P+N+E 5 Pin Socket – 380–415V – 90° Angled Surface-Mounting

🔴Gewiss GW62493 32A 5 Pin Socket – IP44 – Screw Wiring – Red – IEC 309 HP Range

The Gewiss GW62493 is a 32A 5 pin socket (3P+N+E) designed for 380–415V three-phase systems. With a 90° angled surface-mounting design, this red industrial socket ensures ergonomic access, secure cable entry, and high-performance electrical connection in heavy-duty environments.

Compliant with IEC 60309 standards and built for industrial use, the unit features IP44 protection against splashing water and foreign objects. Its brass terminals, anti-loosening screws, and built-in cable clamp with anti-abrasion gland offer long-term durability. The screw wiring terminals support both flexible and rigid cables, simplifying installation.

⚙️ Key Features of the Gewiss GW62493 32A 5 Pin Socket

• Rated Current: 32A
• Poles: 3P+N+E (5 pin socket)
• Rated Voltage: 380–415V
• Frequency: 50/60 Hz
• Mounting Type: 90° angled surface-mounting
• Protection Rating: IP44 – splash-resistant
• Mechanical Resistance: IK08
• Color: Red
• Reference Hour Position: 6H
• Wiring Type: Screw wiring
• Terminal Capacity:
  • Flexible cables: 2.5–6 mm²
  • Rigid cables: 2.5–10 mm²
• Operating Temperature: -25°C to +55°C
• Insulation Resistance: > 10 MΩ
• Permissible Overload: 42A
• Breaking Capacity at 1.1 Un: 40A
• Operational Lifespan: Over 2000 operations
• Material Tests:
  • Glow wire: 850°C (active), 650°C (passive)
  • Thermo-pressure with ball: 125°C (active), 80°C (passive)

✅ Why Choose Gewiss GW62493 32A 5 Pin Socket?

The Gewiss GW62493 surface-mounted socket offers industrial-grade reliability and straightforward installation. It’s ideal for powering heavy machinery and three-phase equipment. The angled build ensures stress-free connections and efficient cable alignment. Backed by durable materials and secure screw wiring, this socket provides long-lasting, compliant performance.

It’s a go-to solution for facilities that need robust 5 pin power connections with clear visual safety and proven environmental protection.

🌐 Ideal Use Cases

• Industrial control cabinets
• Factory power outlets
• Workshop electrical panels
• Temporary site power setups
• Generator connections

❓ Frequently Asked Questions (FAQs)

• Q: Is this a 5 pin socket?
  A: Yes, it’s a 3P+N+E configuration, commonly referred to as a 5 pin socket.
• Q: Can it be used outdoors?
  A: It has IP44 protection, making it suitable for sheltered or semi-outdoor installations.
• Q: What cable sizes are supported?
  A: It accepts 2.5–6 mm² flexible and 2.5–10 mm² rigid cables.
• Q: How durable is the socket?
  A: It supports over 2000 operations and is tested against impact, heat, and overloads.
• Q: What does the 6H marking mean?
  A: 6H refers to the clock position of the earth contact, preventing mismatched voltage connections.

Summary of the Gewiss GW62493 32A 5 Pin Socket

The Gewiss GW62493 32A 5 pin socket is a 90° angled, surface-mounted industrial outlet designed for safe and efficient three-phase power connections. Featuring a red casing, IP44 protection, and robust construction, it supports 380–415V systems and is suitable for machinery, factory panels, and workshop setups. Screw terminals simplify wiring, while brass components and anti-loosening screws ensure long-term reliability.

Ideal for installations where rugged performance and safety come first.
