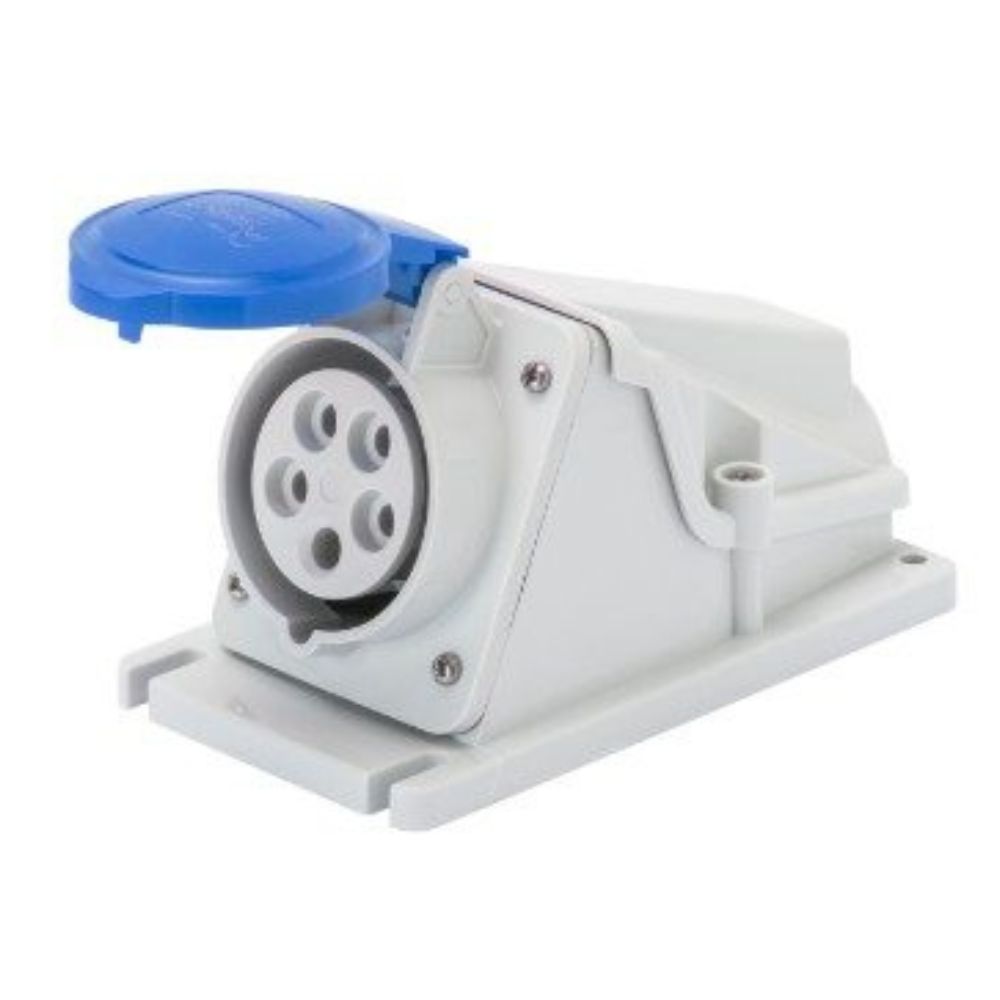

Gewiss GW62488 32A 3 Pin Socket 250V 90° Angled Surface-Mounting – IP44

Description

32A 2P+E 3 Pin Socket – 200–250V – 90° Angled Surface-Mounting

🔵Gewiss GW62488 32A 3 Pin Socket– IP44 – Screw Wiring – Blue – IEC 309 HP Range

The Gewiss GW62488 is a 32A 3 pin socket (2P+E) for 200–250V power systems, ideal for industrial, commercial, and fixed site power distribution. Its 90° angled surface-mounting design provides ergonomic plug access and stable installation, reducing strain on cables.

As part of the trusted IEC 309 HP range, this socket outlet is built to endure tough environments with IP44 protection, IK08 mechanical resistance, and heat-tested, corrosion-resistant components. It supports screw terminal wiring for flexible and rigid cables and is engineered for frequent, heavy-duty use.

⚙️ Key Features of the Gewiss GW62488 32A 3 Pin Socket

• Rated Current: 32A
• Poles: 2P+E (3 pin socket)
• Rated Voltage: 200–250V
• Frequency: 50/60 Hz
• Mounting Type: 90° angled surface-mounting
• Protection Rating: IP44 – splash-resistant
• Mechanical Resistance: IK08
• Color: Blue
• Hour Reference: 6H
• Wiring Type: Screw wiring
• Terminal Capacity:
• Flexible: 2.5–6 mm²
• Rigid: 2.5–10 mm²
• Operating Temperature: -25°C to +55°C
• Insulation Resistance: > 10 MΩ
• Breaking Capacity at 1.1 Un: 40A
• Permissible Overload: 42A
• Operational Lifespan: Over 2000 cycles
• Material Tests:
• Glow wire: 850°C (active), 650°C (passive)
• Thermo-pressure with ball: 125°C (active), 80°C (passive)

✅ Why Choose Gewiss GW62488 32A 3 Pin Socket?

The Gewiss GW62488 surface-mounted 3 pin socket offers reliability and ruggedness for daily use. Its durable 90° angled design simplifies connections and helps reduce wear on cables. With IP44 splash protection and robust components, it’s a perfect fit for industrial power setups.

This socket meets international standards and offers secure screw terminal wiring for a wide range of installations.

🌐 Ideal Use Cases

• Industrial power outlets
• Factory walls or equipment
• Commercial panels
• Construction power distribution
• Semi-outdoor socket installations

❓ Frequently Asked Questions (FAQs)

• Q: Is this a 3 pin socket?
  A: Yes, it’s a 2P+E configuration, also known as a 3 pin socket.
• Q: Can this socket be installed outdoors?
  A: It’s suitable for covered or semi-outdoor use thanks to its IP44 rating.
• Q: What size cables does it support?
  A: It supports 2.5–6 mm² flexible and 2.5–10 mm² rigid cables.
• Q: How durable is this model?
  A: It’s built for over 2000 operations and features IK08 mechanical impact resistance.
• Q: What is the 6H reference?
  A: 6H indicates the clock position of the earth pin, ensuring compatibility with corresponding plugs.

Summary of the Gewiss GW62488 32A 3 Pin Socket

The Gewiss GW62488 32A socket is a robust, surface-mounted 2P+E (3 pin socket) built for secure power connections in industrial and commercial settings. Its 90° angled housing, IP44 splash protection, and durable screw terminals make it ideal for frequent use and long-term reliability. Supporting 200–250V applications, this model complies with IEC 60309 standards and is engineered to perform in demanding conditions.
