Description

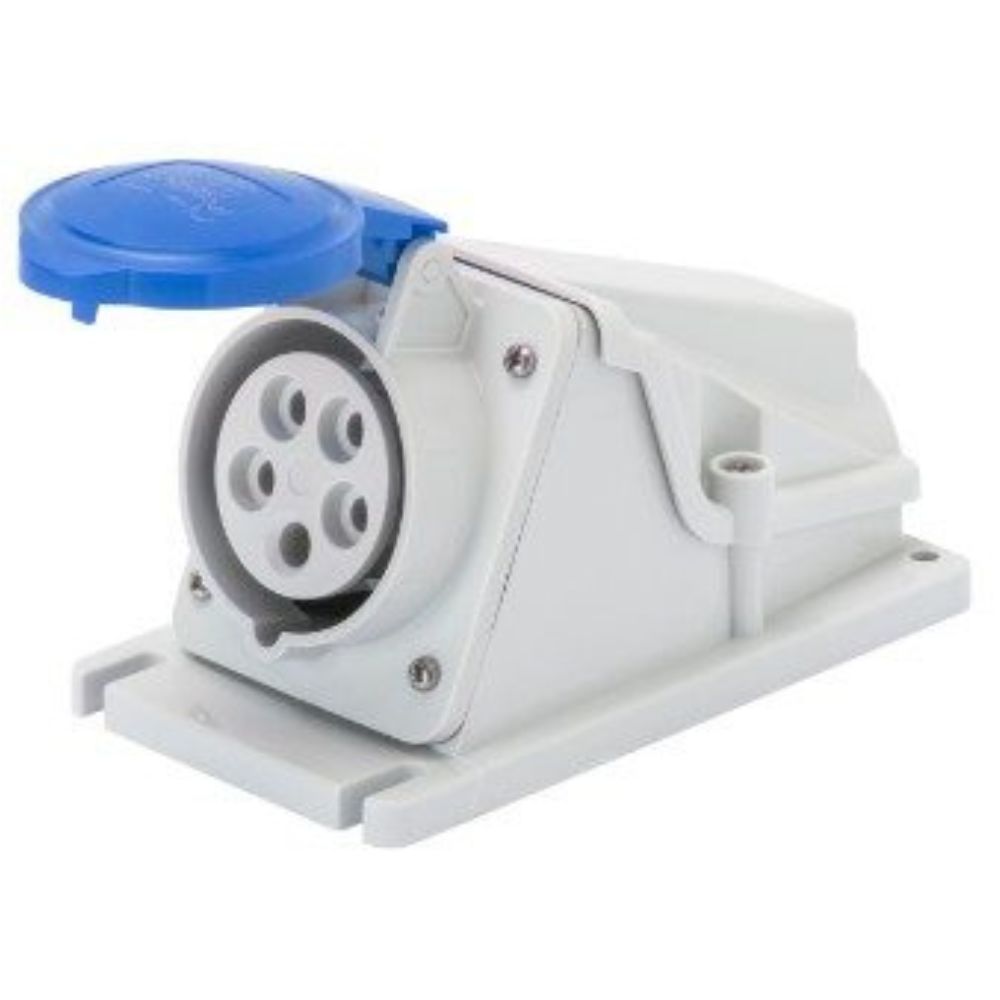

16A 2P+E 3 Pin Socket – 200–250V – 90° Angled Surface-Mounting
🔵 Gewiss GW62477 16A 3 Pin Socket – IP44 – Screw Wiring – Blue – IEC 309 HP Range
The Gewiss GW62477 is a 16A 2P+E surface-mounted 3 pin socket built for dependable power distribution in industrial and commercial environments. Designed for 200–250V single-phase applications, it features a 90° angled design for easier plug-in access and compact mounting.
Part of the IEC 309 HP range, this unit includes IP44 protection against dust and water splashes, along with IK08 impact resistance. It supports screw wiring and is compatible with both flexible and rigid cables. Its high-quality build and secure terminal connections make it an ideal solution for medium-duty electrical installations.
⚙️ Key Features of the Gewiss GW62477 16A 3 Pin Socket
- Rated Current: 16A
- Poles: 2P+E (3 pin socket)
- Rated Voltage: 200–250V
- Frequency: 50/60 Hz
- Mounting Type: 90° angled surface-mounting
- Ingress Protection: IP44 – dust and splash resistant
- Mechanical Resistance: IK08
- Color: Blue
- Reference Hour Position: 6H
- Wiring Type: Screw terminals
- Cable Support:
- Flexible: 1–2.5 mm²
- Rigid: 1.5–4 mm²
- Operating Temperature: -25°C to +55°C
- Material: Halogen-free housing
- Glow Wire Test: 850°C (active), 650°C (passive)
- Thermo-Pressure with Ball: 125°C (active), 80°C (passive)
- Standards: IEC 60309 compliant
✅ Why Choose Gewiss GW62477 16A 3 Pin Socket?
The Gewiss GW62477 3 pin socket combines safety, reliability, and efficiency in a compact IP44-rated surface-mounted format. Its angled housing makes cable routing easier, while its screw-terminal system supports fast, secure wiring.
Whether you’re setting up electrical distribution in a workshop, warehouse, or commercial space, this socket provides a professional, dependable connection.
🌐 Ideal Use Cases
- Workshops and tool stations
- Commercial wall outlets
- Machinery connection points
- Indoor equipment panels
- General industrial use
❓ Frequently Asked Questions (FAQs)
- Q: Is this socket IP-rated for water resistance?
A: Yes, it has an IP44 rating, suitable for dust and water spray protection. - Q: What is the pin configuration?
A: This is a 2P+E configuration, also referred to as a 3 pin socket. - Q: Can I surface-mount this product?
A: Yes, it’s designed for 90° surface-mounted installations. - Q: What kind of wiring does it support?
A: It supports both flexible (1–2.5 mm²) and rigid (1.5–4 mm²) cables via screw terminals. - Q: Is it suitable for semi-outdoor applications?
A: Yes, if protected from direct rain, its IP44 rating allows safe use in semi-outdoor settings.
Summary of the Gewiss GW62477 16A 3 Pin Socket
The Gewiss GW62477 is a 16A 2P+E surface-mounted socket with a 90° angled layout, IP44 splash protection, and robust screw wiring terminals. Engineered for 200–250V power systems, this 3 pin socket offers safe and efficient installation in industrial and commercial settings. Its compact design, durable construction, and compliance with IEC standards make it a dependable choice for fixed power distribution setups.
