Gewiss GW62201H – 16A 2P+E 110V Socket Angled Flush-Mounting – IP44/IP54

Description

16A 2P+E 100–130V 110V Socket – 3 Pin – 10° Angled Flush-Mounting

🟡Gewiss GW62201H 110V Angled Flush Socket – IP44/IP54 – Yellow – Screw Wiring – IEC 309 HP Range

The Gewiss GW62201H is a 16A 3 pin socket (2P+E) designed for 100–130V systems, commonly referred to as a 110V socket. With its 10° angled flush-mounting design, it offers easy plug access and cable management in commercial, industrial, and temporary site setups.

As part of the IEC 309 HP range, this 110V socket provides IP44/IP54 protection against dust and splashes. Its tough, halogen-free housing and nickel-plated contacts improve safety and extend service life. Built to handle over 5000 operations, this 2P+E socket is ideal for high-use environments. The screw terminals support both flexible and rigid cable connections.

⚙️ Key Features of the Gewiss GW62201H 110V Angled Flush Socket

• Rated Current: 16A
• Poles: 2P+E (3 pin socket)
• Rated Voltage: 100–130V (110V socket class)
• Frequency: 50/60 Hz
• Mounting: 10° angled flush-mounting
• Protection: IP44/IP54 – dust and splash resistant
• Mechanical Strength: IK09
• Material: Halogen-free, EN 60754-2 compliant
• Color: Yellow
• Hour Reference: 4H
• Glow Wire Test:
  • 850°C (active parts)
  • 650°C (passive parts)
• Thermo-pressure with Ball:
  • 125°C (active)
  • 80°C (passive)
• Cable Entry: Screw wiring
• Terminal Capacity:
  • Flexible: 1–2.5 mm²
  • Rigid: 1.5–4 mm²
• Operating Temp: -25°C to +55°C
• Operational Lifespan: Over 5000 operations
• Insulation Resistance: >10 MΩ
• Overload Resistance: 22A
• Breaking Capacity @1.1 Un: 20A

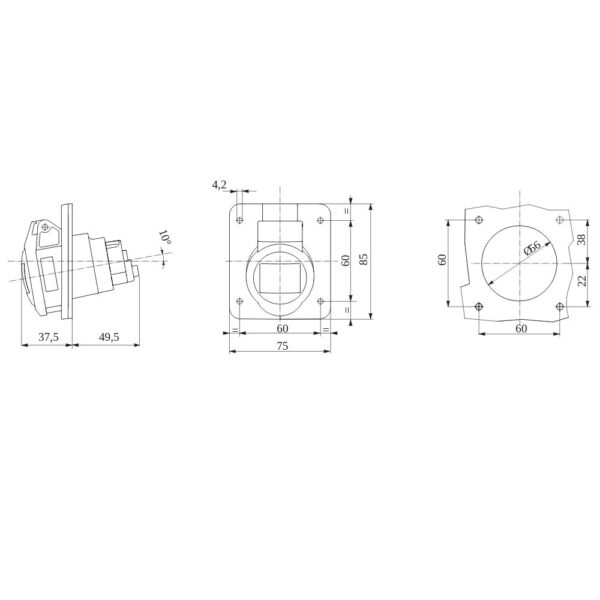

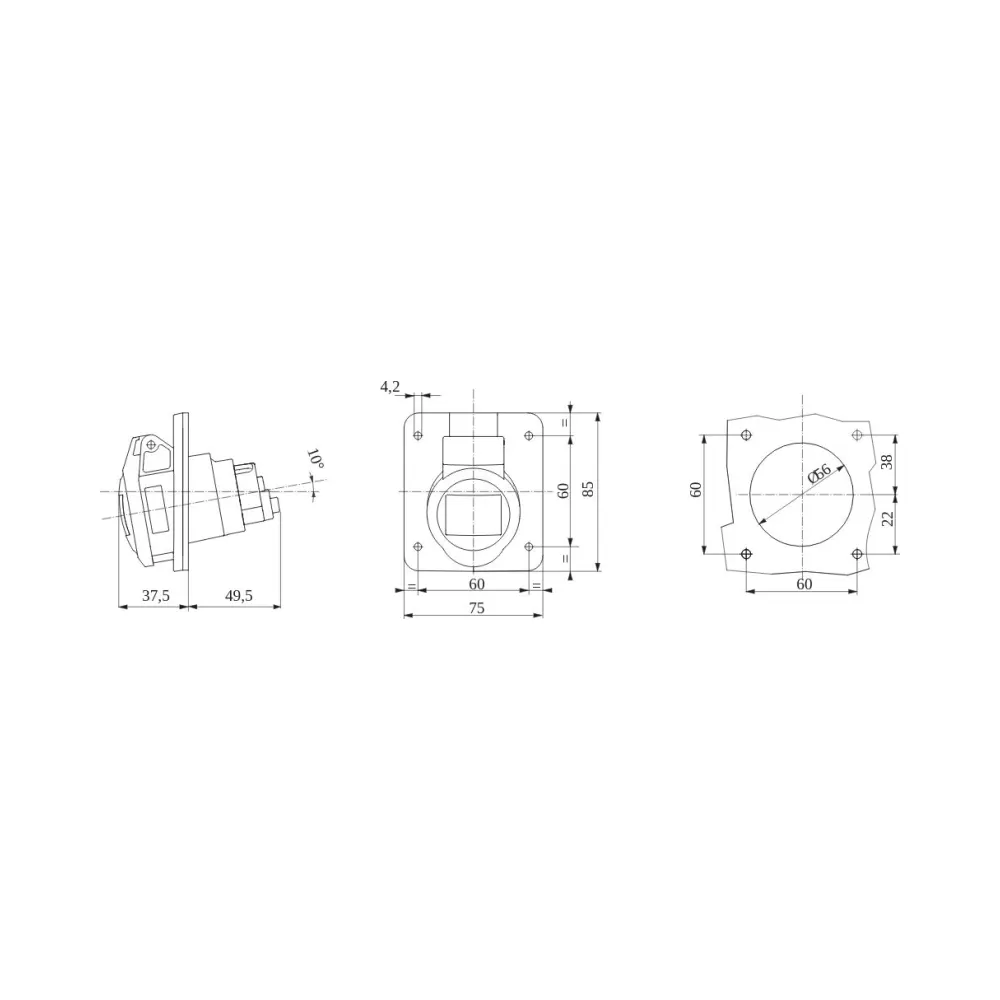

• Flange Dimensions: 85 mm x 75 mm

✅ Why Choose Gewiss GW62201H 110V Angled Flush Socket?

The Gewiss GW62201H 110V socket is a trusted solution for temporary power supplies, site equipment, and low-voltage systems. Its angled flush-mount design allows for fast, hassle-free plug-in and better strain relief. With high mechanical resistance, IP protection, and halogen-free construction, it ensures durability and safety—even under frequent use.

Engineered for quick wiring via screw terminals, and built to meet IEC standards, this 2P+E 3 pin socket is ideal for consistent performance across professional installations.

🌐 Ideal Use Cases

• 110V construction site power
• Portable tool stations
• Industrial low-voltage setups
• Semi-outdoor panels
• Event or festival power systems

❓ Frequently Asked Questions (FAQs)

• Q: Is this considered a 110V socket?
  A: Yes, it is designed for 100–130V systems and is widely known as a 110V socket.
• Q: What kind of wiring does it support?
  A: It supports screw wiring with flexible (1–2.5 mm²) and rigid (1.5–4 mm²) cables.
• Q: Is it suitable for outdoor use?
  A: It can be used in sheltered outdoor areas, thanks to its IP44/IP54 rating.
• Q: How durable is the product?
  A: It supports over 5000 operations and features impact-resistant construction.
• Q: What does 4H mean in this context?
  A: 4H refers to the clock position of the earth pin, used to prevent connection mismatches by voltage class.

Summary of the Gewiss GW62201H 110V Angled Flush Socket

The Gewiss GW62201H is a 16A 2P+E 110V socket designed for flush-mounting applications. Its 10° angled housing improves usability, while its IP44/IP54 protection and IK09 impact rating ensure safe use in demanding locations. Ideal for low-voltage industrial and commercial setups, this 3 pin socket supports screw terminal wiring and operates reliably in a wide temperature range.

Made from halogen-free material and compliant with IEC standards, it delivers high performance with long-lasting durability.
