Description

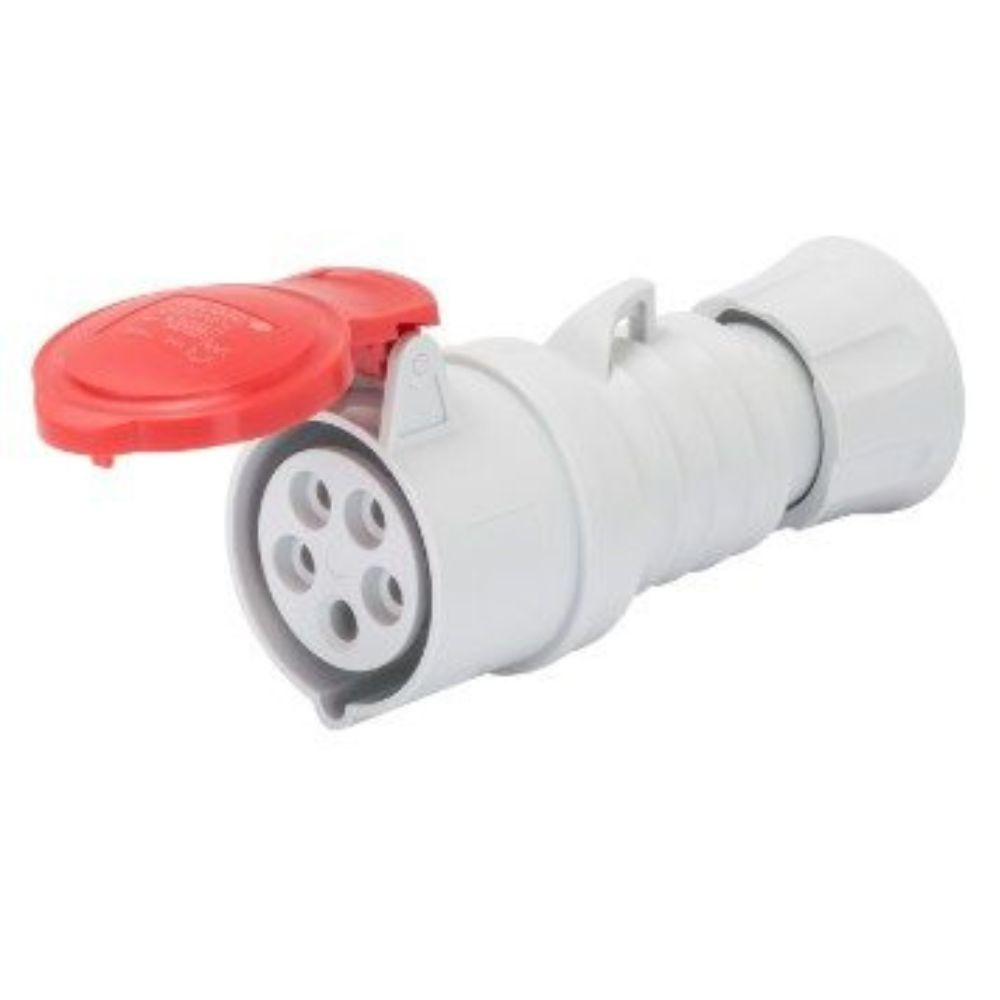

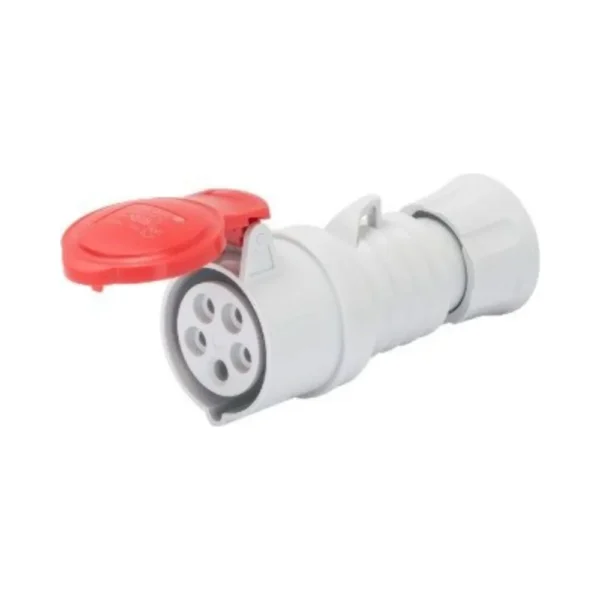

16A 3P+N+E 5 Pin Plug – 380–415V – Straight Connector
🔴 Gewiss GW62009H 16A 5 Pin Plug – IP44/IP54 – Screw Wiring – Red – IEC 309 HP Range
The Gewiss GW62009H is a 16A 5 pin plug (3P+N+E) designed for safe, stable three-phase power distribution. It supports 380–415V systems, making it perfect for compact industrial applications or mobile setups.
As part of the IEC 309 HP range, this straight connector offers IP44/IP54 ingress protection and IK09 impact resistance, helping it withstand everyday industrial wear. It also features halogen-free construction, ensuring compliance with modern safety standards. Thanks to its nickel-plated contacts, this plug resists corrosion and performs reliably even in harsh environments.
Installation is simple. With screw-type terminals, it connects securely to both rigid and flexible cables. The built-in cable clamp holds wires firmly in place and accommodates various sizes, helping maintain solid electrical contact during use.
⚙️ Key Features of the Gewiss GW62009H 16A 5 Pin Plug
- Rated Current: 16A
- Poles: 3P+N+E (5 pin plug)
- Rated Voltage: 380–415V
- Frequency: 50/60 Hz
- Connector Type: Straight plug
- Ingress Protection: IP44/IP54
- Mechanical Resistance: IK09
- Color: Red
- Hour Reference: 6H
- Wiring Type: Screw terminal
- Cable Support:
- Flexible: 1–2.5 mm²
- Rigid: 1.5–4 mm²
- Cable Clamp Range: 9.2–19.9 mm
- Material: Halogen-free, EN 60754-2 compliant
- Glow Wire Test: 850°C (active), 650°C (passive)
- Thermo-pressure with Ball: 125°C (active), 80°C (passive)
- Operating Temperature: -25°C to +55°C
- Insulation Resistance: > 10 MΩ
- Permissible Overload: 22A
- Breaking Capacity at 1.1 Un: 20A
- Operation Lifespan: > 5000 cycles
✅ Why Choose Gewiss GW62009H 16A 5 Pin Plug?
If you need a compact yet powerful solution for three-phase power, the Gewiss GW62009H delivers exactly that. Not only does it meet IEC standards, but it also offers practical features that simplify installation and improve durability.
Additionally, the rugged build and secure wiring design make it a go-to choice for engineers, technicians, and facility managers.
🌐 Ideal Use Cases
- Light industrial three-phase equipment
- Mobile power tools
- Compact generator connections
- Machinery requiring 380–415V feeds
- Industrial maintenance stations
❓ Frequently Asked Questions (FAQs)
- Q: Is this plug 3-phase?
A: Yes, it’s a 3P+N+E configuration, ideal for balanced three-phase loads. - Q: Can this be used in mobile setups?
A: Yes, it’s a straight connector for mobile and temporary power uses. - Q: What wiring method is supported?
A: It uses screw terminals compatible with flexible and rigid cables. - Q: How durable is it?
A: It supports over 5000 operations, with impact and corrosion resistance built-in. - Q: What does the 6H refer to?
A: It’s the clock position of the earth pin, used for safe, voltage-matched connections.
Summary of the Gewiss GW62009H 16A 5 Pin Plug
The Gewiss GW62009H is a 16A 5 pin straight connector built for 380–415V three-phase systems in mobile, workshop, and industrial setups. With IP44/IP54 protection, IK09 impact resistance, and screw terminal wiring, this 3P+N+E plug is reliable, safe, and easy to install. Its halogen-free casing and nickel-plated contacts ensure long-lasting operation in demanding environments.
