Description

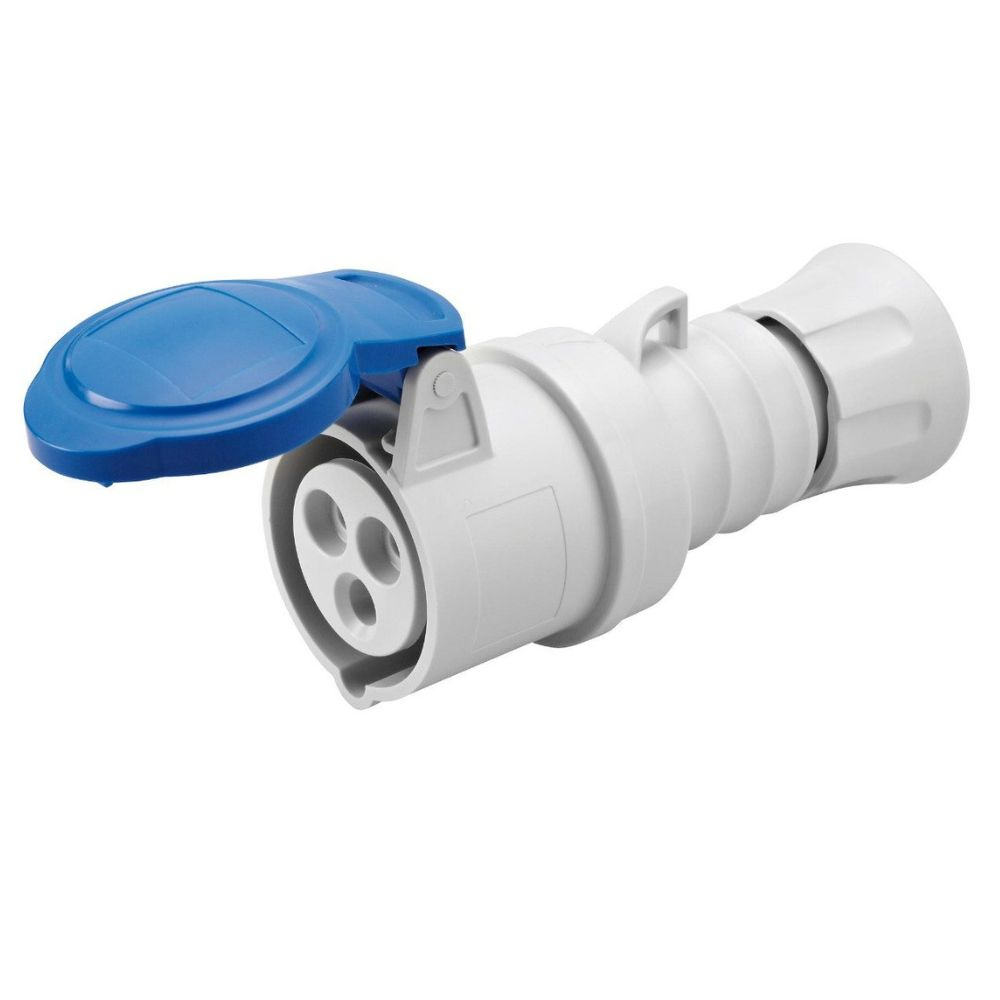

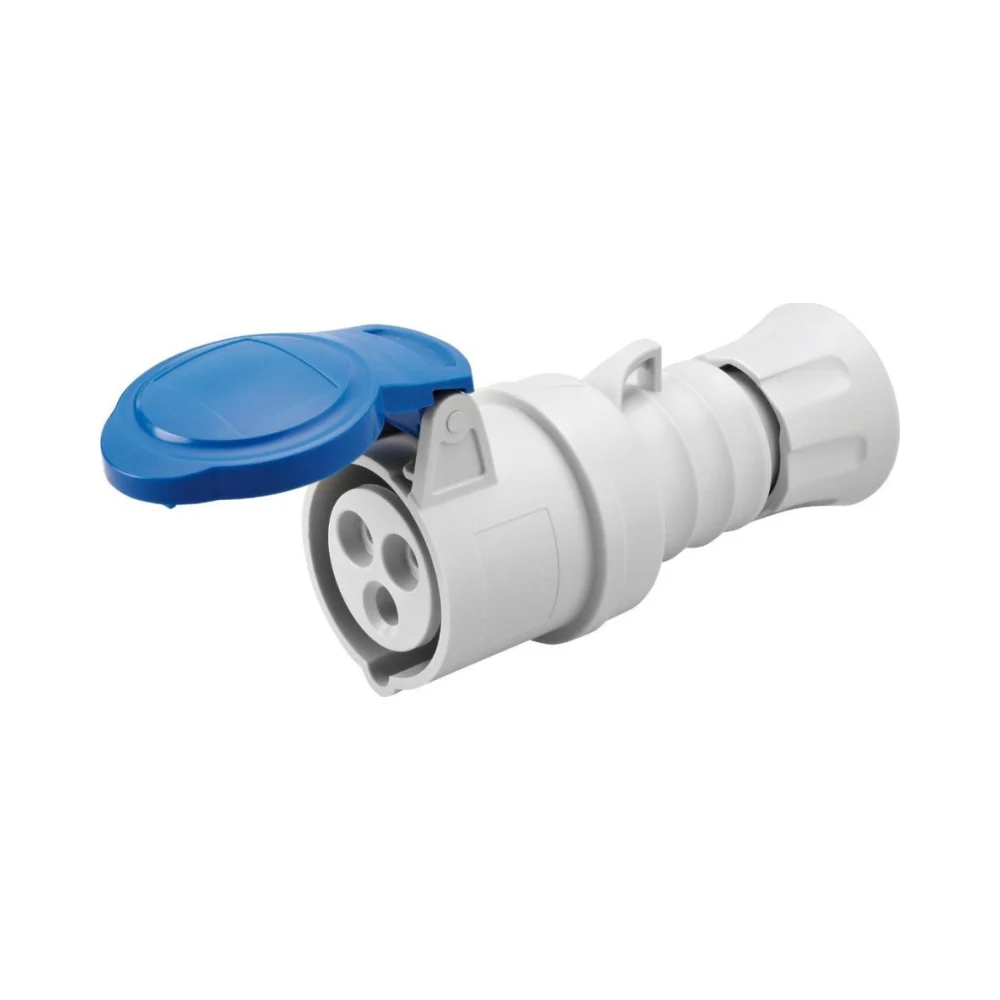

16A 2P+E 3 Pin Plug – 200–250V – Straight Connector
🔵 Gewiss GW62004H – IP44/IP54 – Screw Wiring – Blue – IEC 309 HP Range
The Gewiss GW62004H is a 16A straight 3 pin plug (2P+E) designed for 200–250V single-phase power. It’s compact, durable, and easy to install—making it ideal for mobile tools, temporary site equipment, and light industrial use.
As part of the IEC 309 HP range, this connector delivers IP44/IP54 protection and IK09 impact resistance, providing dependable performance in demanding conditions. Its housing is made of halogen-free material for added safety, while nickel-plated contacts ensure strong corrosion resistance. The screw terminals and integrated cable clamp make wiring straightforward and secure.
Whether you’re connecting portable equipment or setting up temporary installations, this plug gives you reliable power, every time.
⚙️ Key Features of the Gewiss GW62004H 16A 3 Pin Plug
- Current Rating: 16A
- Poles: 2P+E (3 pin plug)
- Voltage: 200–250V
- Frequency: 50/60 Hz
- Connector Type: Straight mobile plug
- Ingress Protection: IP44/IP54 – suitable for dust and splash-prone areas
- Mechanical Resistance: IK09
- Color: Blue
- Hour Reference: 6H
- Wiring Type: Screw terminals
- Cable Support:
- Flexible: 1–2.5 mm²
- Rigid: 1.5–4 mm²
- Clamp Range: 7.5–13.8 mm
- Material: Halogen-free (EN 60754-2 compliant)
- Thermal Resistance:
- Glow wire: 850°C (active), 650°C (passive)
- Thermo-pressure: 125°C (active), 80°C (passive)
- Operating Temperature: -25°C to +55°C
- Insulation Resistance: > 10 MΩ
- Overload Capacity: 22A
- Breaking Capacity @1.1 Un: 20A
- Usage Lifespan: Over 5000 operations
✅ Why Choose Gewiss GW62004H 16A 3 Pin Plug?
When you need a compact and rugged 3 pin plug for everyday single-phase power use, the Gewiss GW62004H delivers. Its robust IP-rated build and quick screw-wiring system reduce downtime and enhance safety—perfect for fieldwork and industrial setups alike.
🌐 Ideal Use Cases
- Portable tools and equipment
- Temporary lighting or power supply
- Commercial or light industrial connections
- Semi-outdoor setups
- Mobile service units
❓ FAQs
- Q: Is this a 3 pin plug?
A: Yes, it’s a 2P+E configuration used for 3 pin single-phase power applications. - Q: What voltage range does it support?
A: It operates at 200–250V, 50/60 Hz. - Q: Can it be used outdoors?
A: Yes, it’s suitable for protected outdoor or semi-exposed environments with its IP44/IP54 rating. - Q: What cable sizes can I use?
A: It accepts flexible (1–2.5 mm²) and rigid (1.5–4 mm²) cables with a clamp range of 7.5–13.8 mm. - Q: How many operations is it rated for?
A: Over 5000, making it highly durable.
Summary of the Gewiss GW62004H 16A 3 Pin Plug
The Gewiss GW62004H is a 16A 2P+E straight connector plug for 200–250V applications, commonly used in commercial and portable setups. With a 3 pin design, IP44/IP54 protection, and halogen-free housing, it’s a reliable solution for semi-industrial use. The nickel-plated contacts, secure cable clamp, and screw terminals make it easy to install and built to last.
