Description
EV Consumer Unit with PEN Fault Detection

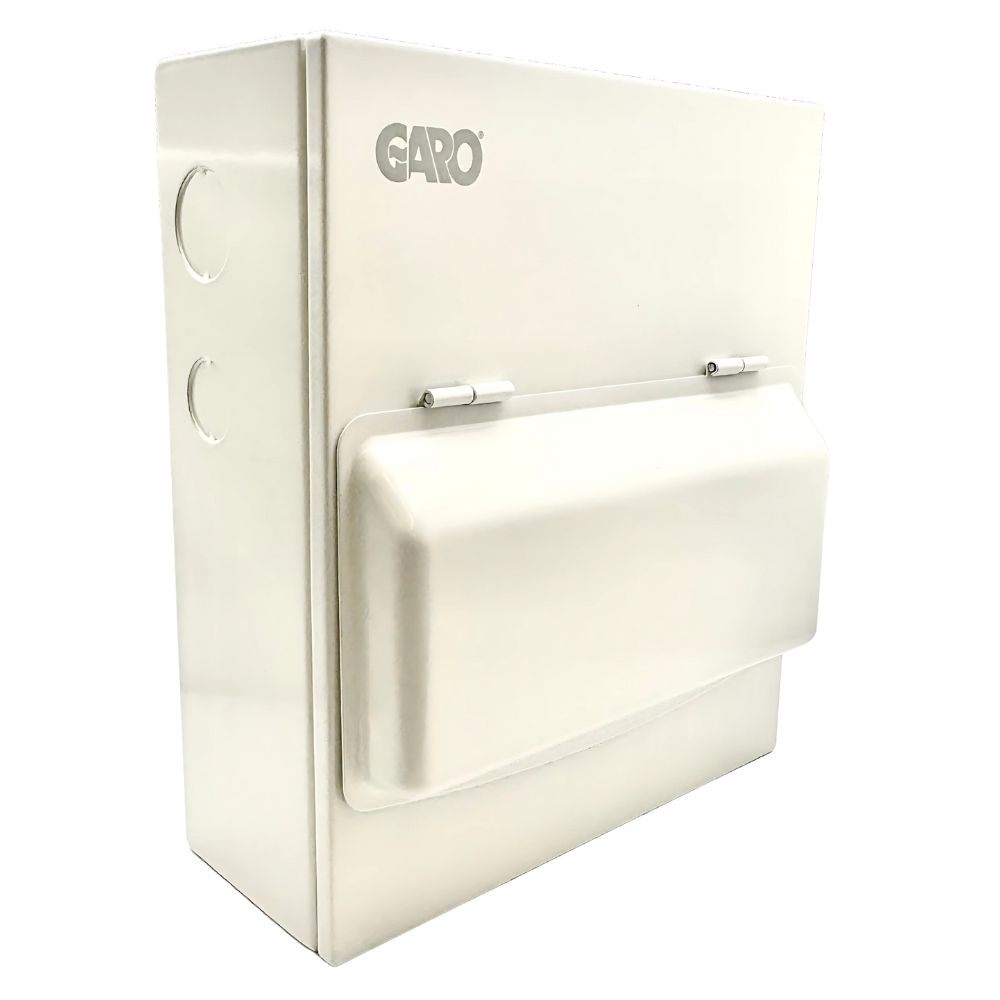

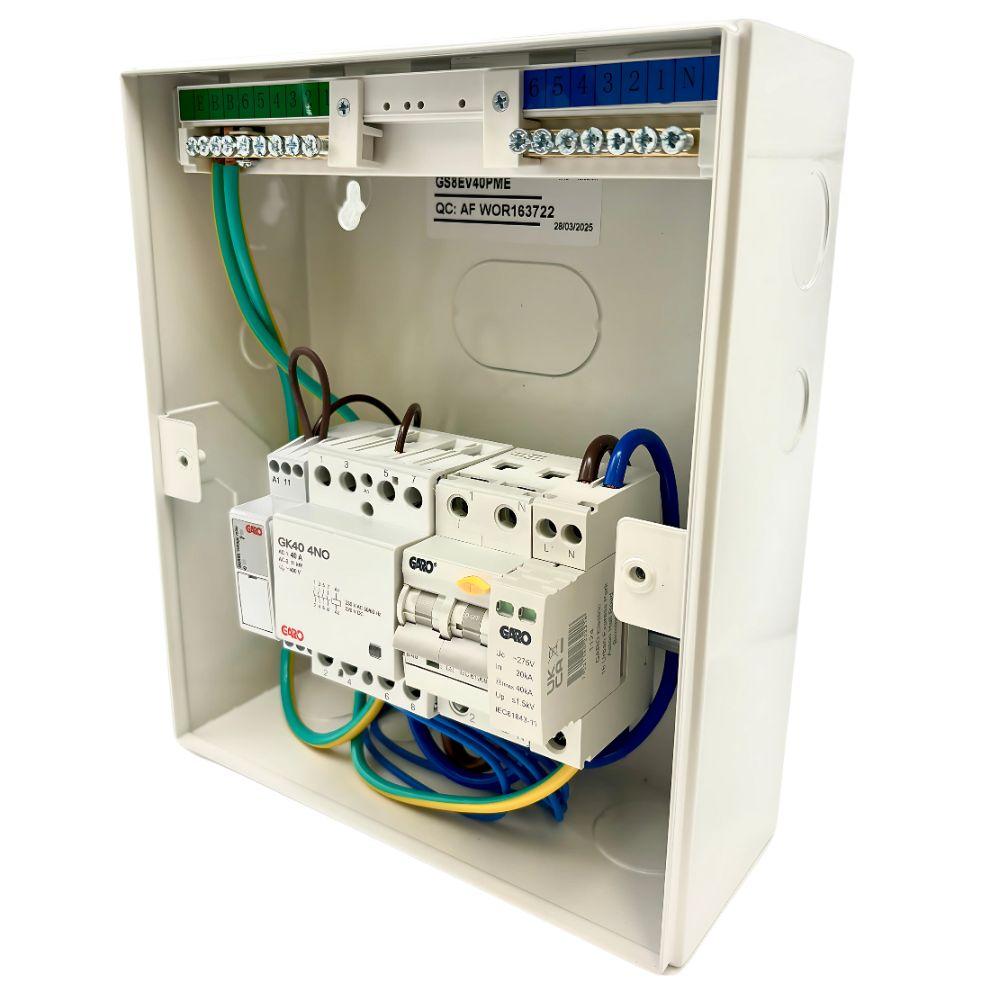

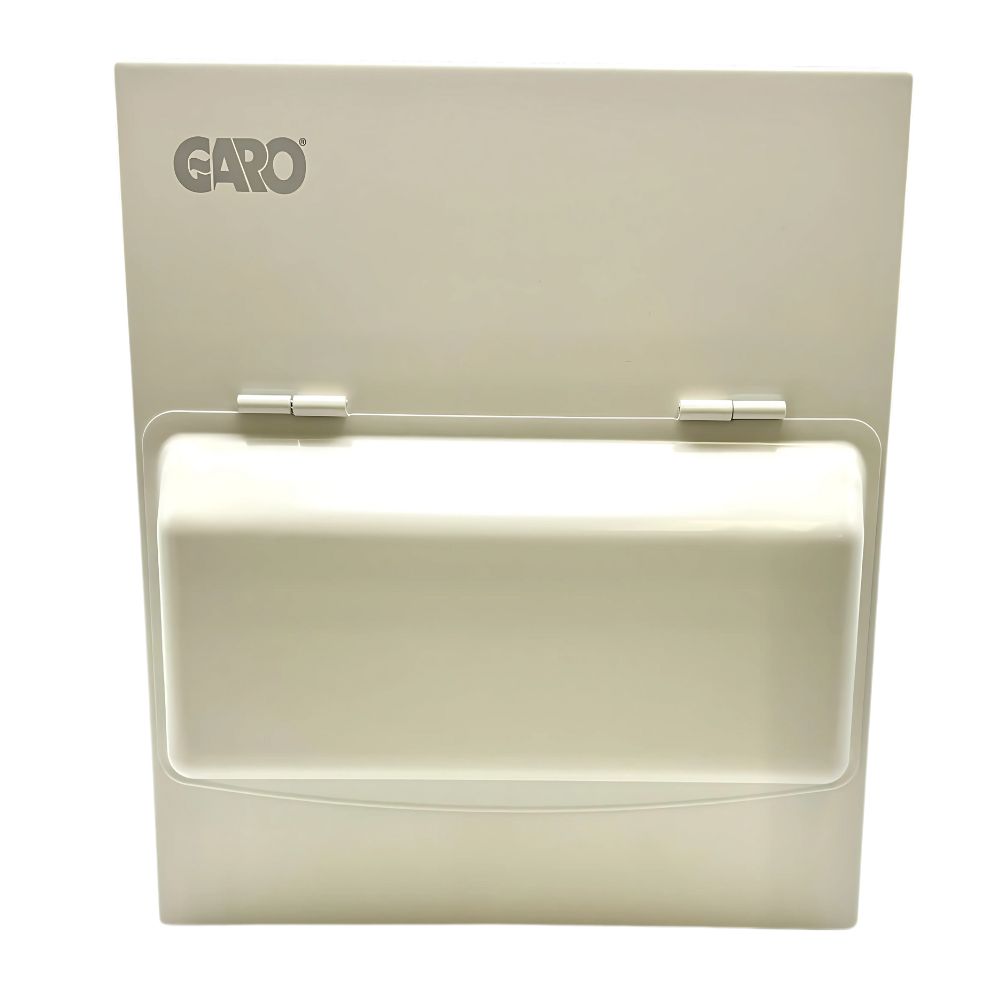

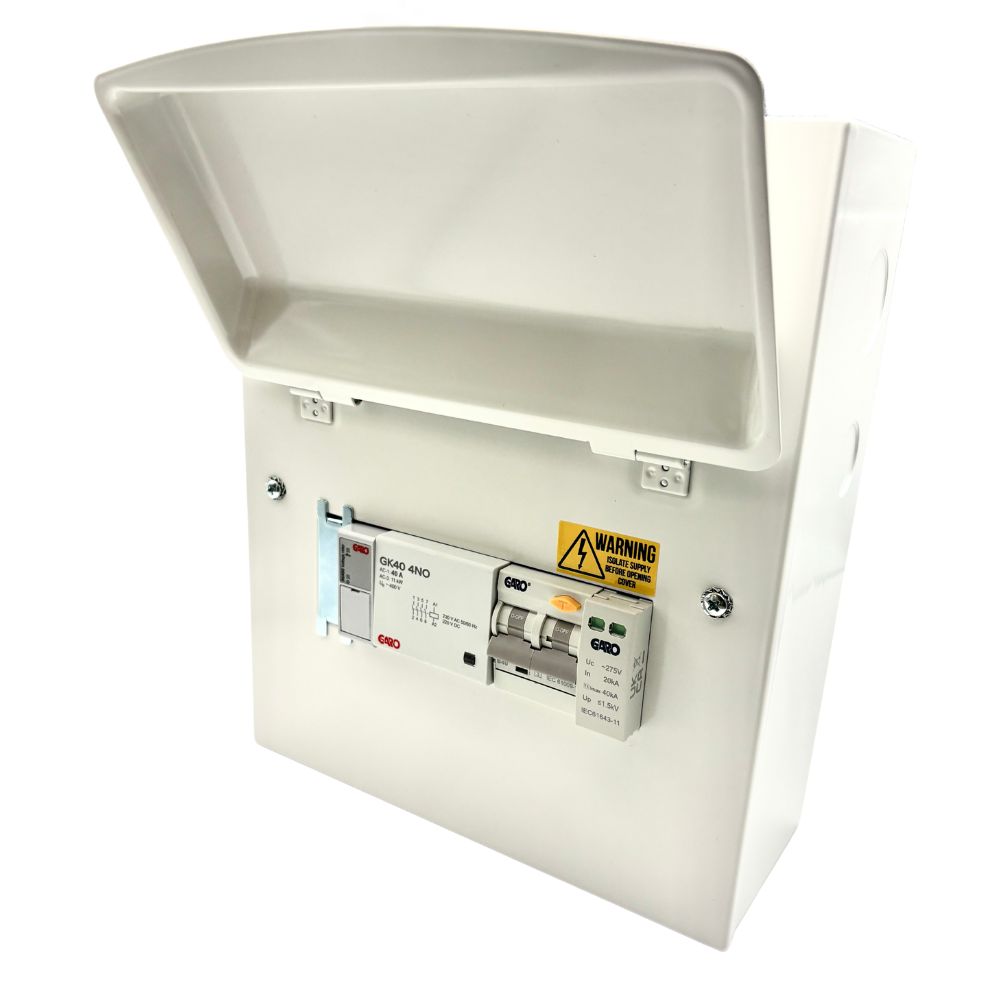

Garo GS8EV40PME EV Charger Consumer Unit – 40A Curve B Double Pole Type A RCBO + SPD
Take charge of your EV installation with the Garo GS8EV40PME EV Charger Consumer Unit, expertly designed for electric vehicle charging systems. This robust metal unit combines safety, compliance, and convenience in one sleek package—making it a top choice for modern EV home setups.
Fitted with a 40A Type A RCBO (B-Curve), this unit also features integrated PEN fault detection, eliminating the need for an earth electrode. Surge protection ensures your charging system stays shielded from harmful voltage spikes.
Designed in accordance with the IET BS 7671:2018 Amendment 1:2020 regulations, the unit disconnects within 5 seconds if voltages exceed 253V or drop below 207V, offering complete peace of mind for you and your EV.
✨ Key Features of the Garo GS8EV40PME
- 🔌 40A Type A RCBO (B-Curve)
- ⚠️ Built-In PEN Fault Detection: Detects and disconnects on PME/PEN faults—no earth rod required.
- 🌩️ Surge Protection Device (SPD): Protects against voltage surges and lightning-induced spikes.
- 🧱 IP40 Rated Metal Enclosure: Strong, indoor-rated housing for lasting durability.
- 📐 8 Way, Fully Populated: All circuits integrated for quick and clean installation.
- ⚙️ Ideal for EV Installations: Works with chargers featuring DC leakage protection.
🧪 Technical Specifications of the Garo GS8EV40PME EV Charger Consumer Unit
- Rated Current: 40A
- Rated Voltage: 230 V AC
- Frequency: 50/60 Hz
- RCBO Type: 40A Type A – B-Curve
- Short Circuit Capacity (Icc): 16kA rms at 250V (Annex ZB)
- Operating Voltage Range: 213V – 253V (activates within 4 seconds)
- Total Number of Ways: 8
- Total Number of Free Ways: 0
- Protection Degree: IP40 (indoor use)
- Material: Metal enclosure
- Terminal Capacity: 25mm
- Standards Compliance: EN 61439-3, BS 7671
- Ambient Operating Temperature: -25°C to +55°C
- Storage Temperature Range: -35°C to +55°C
- Dimensions: Height: 235mm, Width: 197mm, Depth: 110mm
- Warranty: 5 Years Mechanical, 2 Years Electronic
📜 Regulatory Compliance:
Conforms to BS 7671:2018 Regulation 543.3.3.101(ii), ensuring automatic disconnection from live conductors and protective earth within 5 seconds if voltage deviates beyond 207–253V rms. Also compliant with Regulation 722.411.4 for TN systems, per Amendment 1:2020.
💡 Why You Should Buy Garo GS8EV40PME EV Charger Consumer Unit:
- ✅ Compliant & Future-Proof: Fully aligns with latest IET wiring regulations.
- ✅ Installer-Friendly: No additional earth electrode or relay units required.
- ✅ Safe for Your Home & EV: Guards against surges, PEN faults, and voltage drops.
❓ FAQs:
- Q: Is this compatible with any EV charger?
✔️ Yes, it works with chargers that feature built-in DC leakage protection. - Q: Do I need to install an earth rod?
🚫 No! The unit includes built-in PEN fault detection. - Q: Can this be used outdoors?
🏠 No, it’s IP40 rated and best suited for indoor use.
✅ Summary of the Garo GS8EV40PME EV Charger Consumer Unit
The Garo GS8EV40PME EV Consumer Unit simplifies EV home charging with built-in protections, a B-curve RCBO, and PME fault detection. With full UK regulation compliance, surge protection, and no earth rod requirement, it’s a future-ready unit trusted by professionals and homeowners alike.
