Take Charge of Your EV Installation with the Garo GS8EV40CPME Consumer Unit
EV Consumer Unit with PEN Fault Detection – Garo GS8EV40CPME

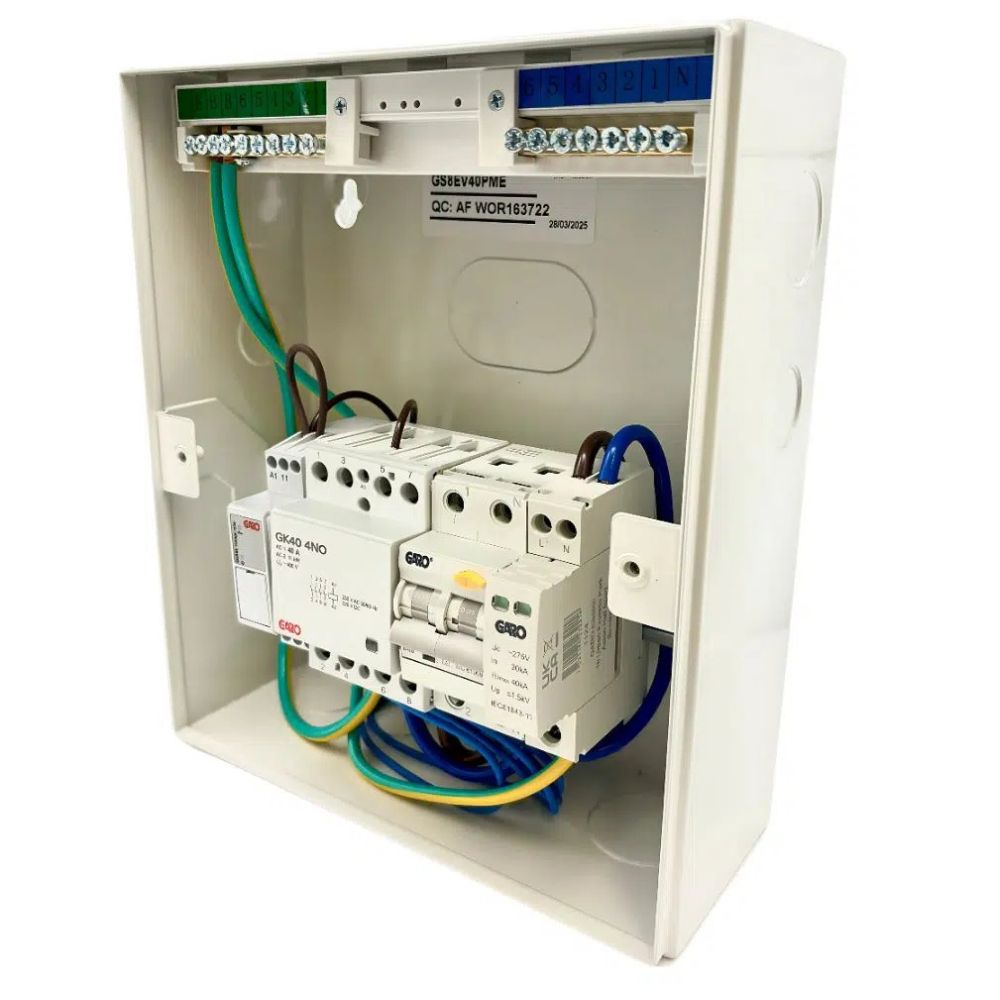

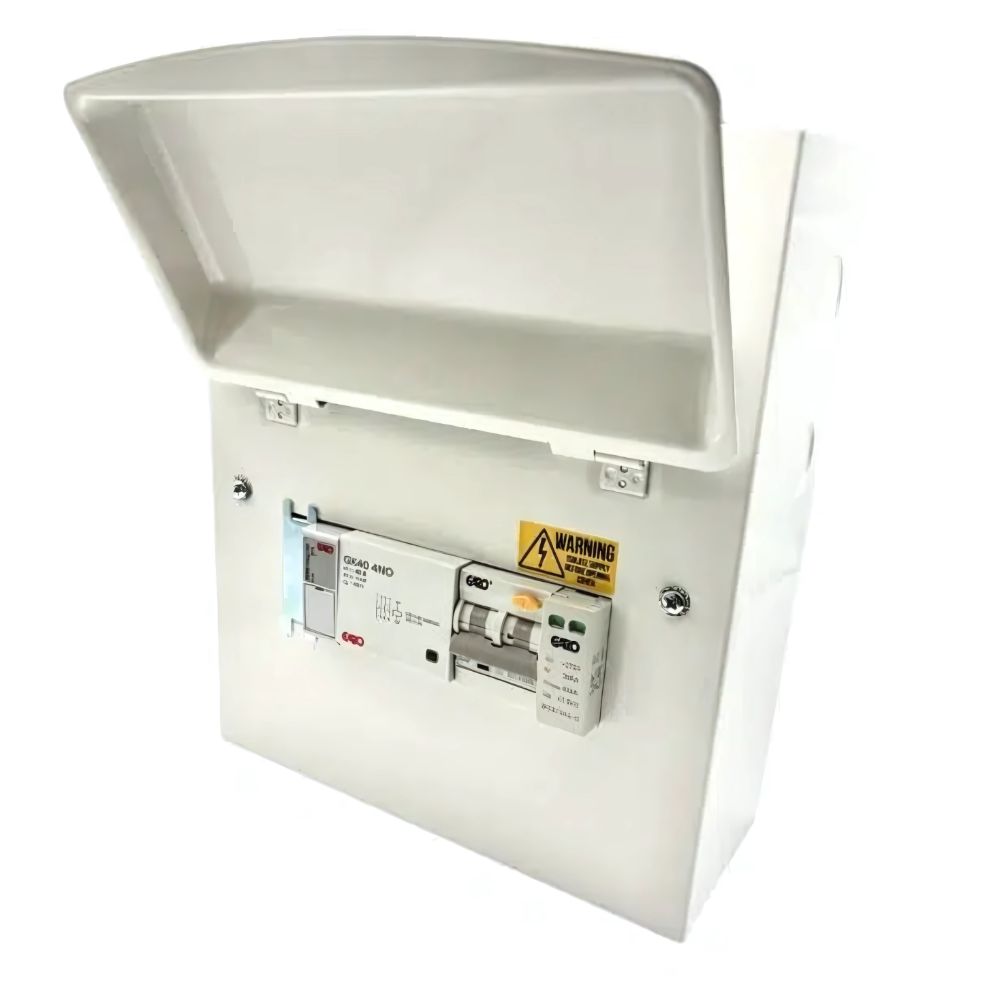

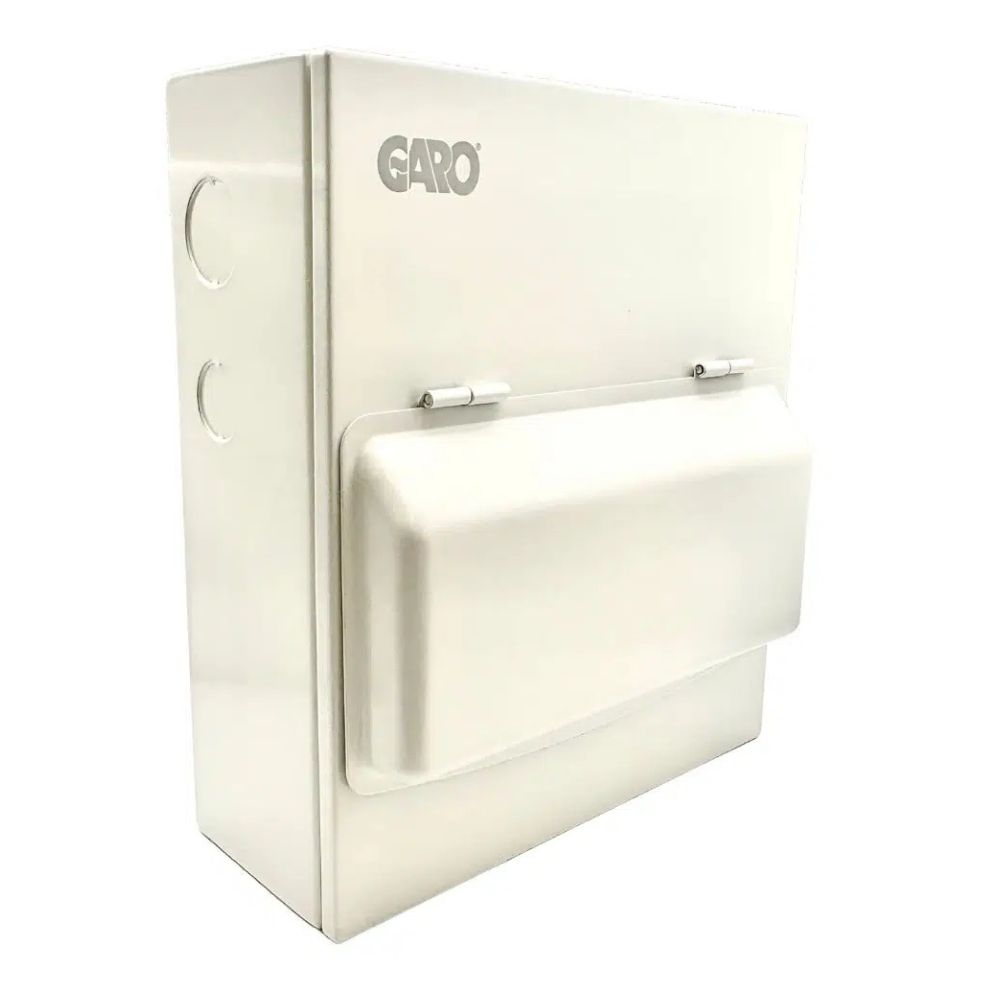

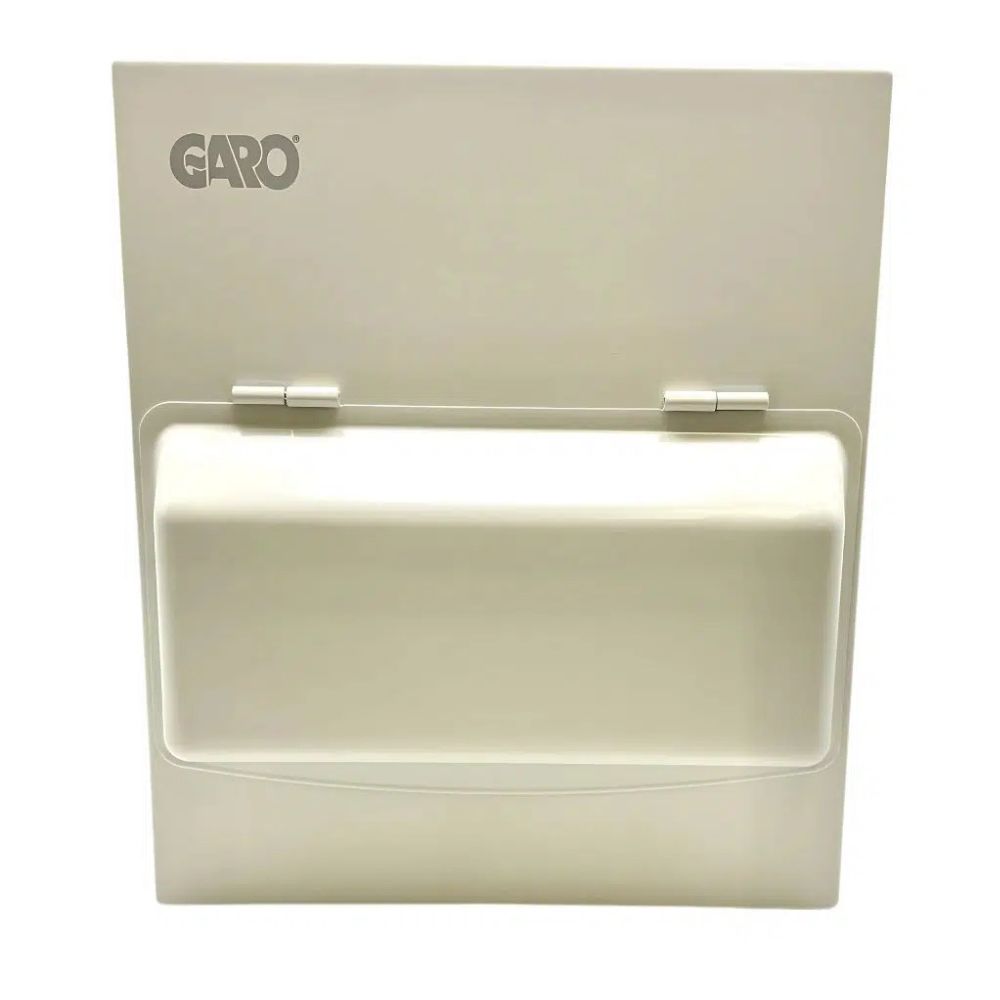

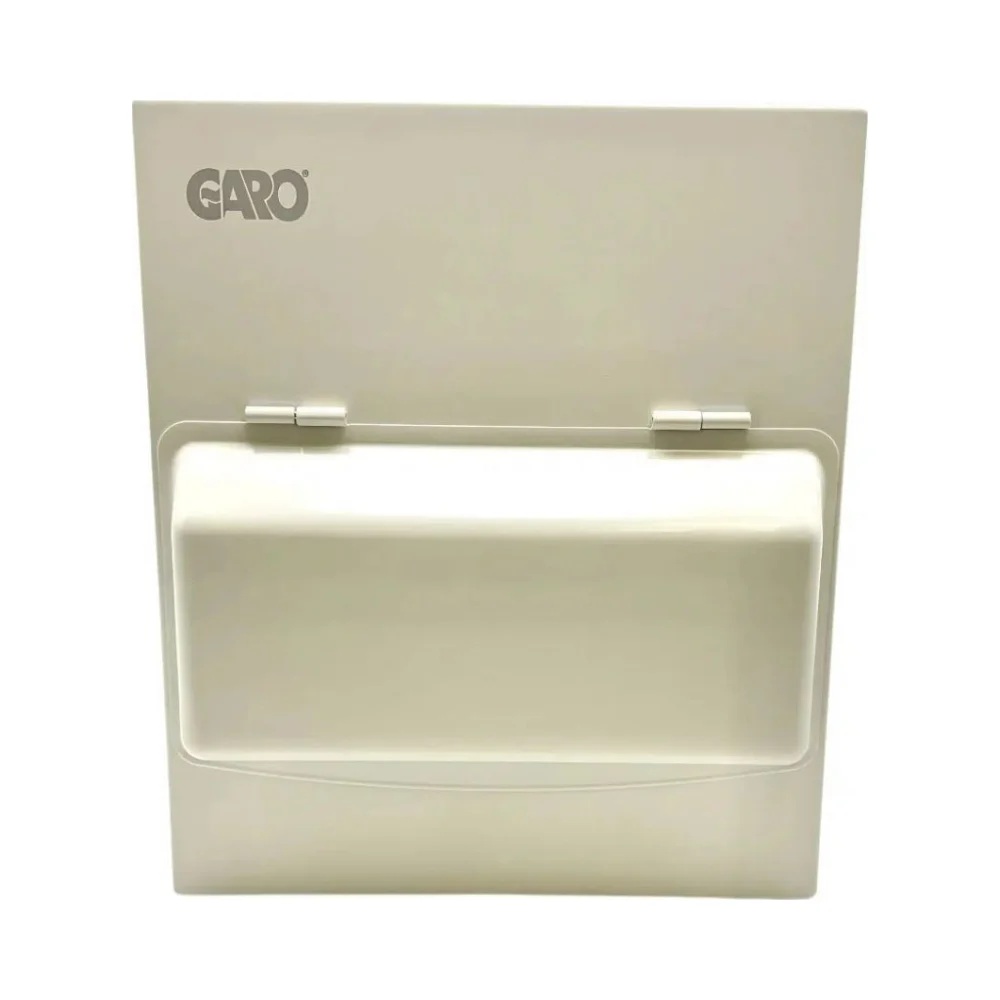

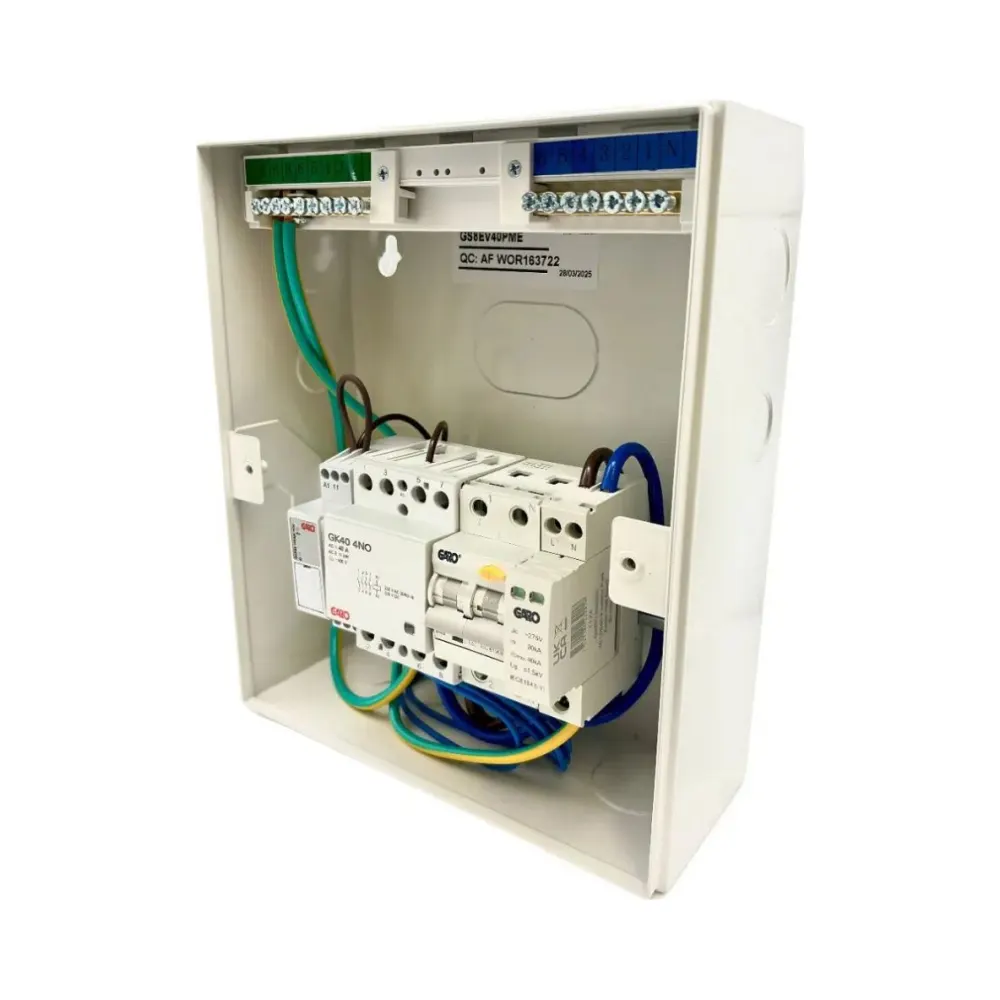

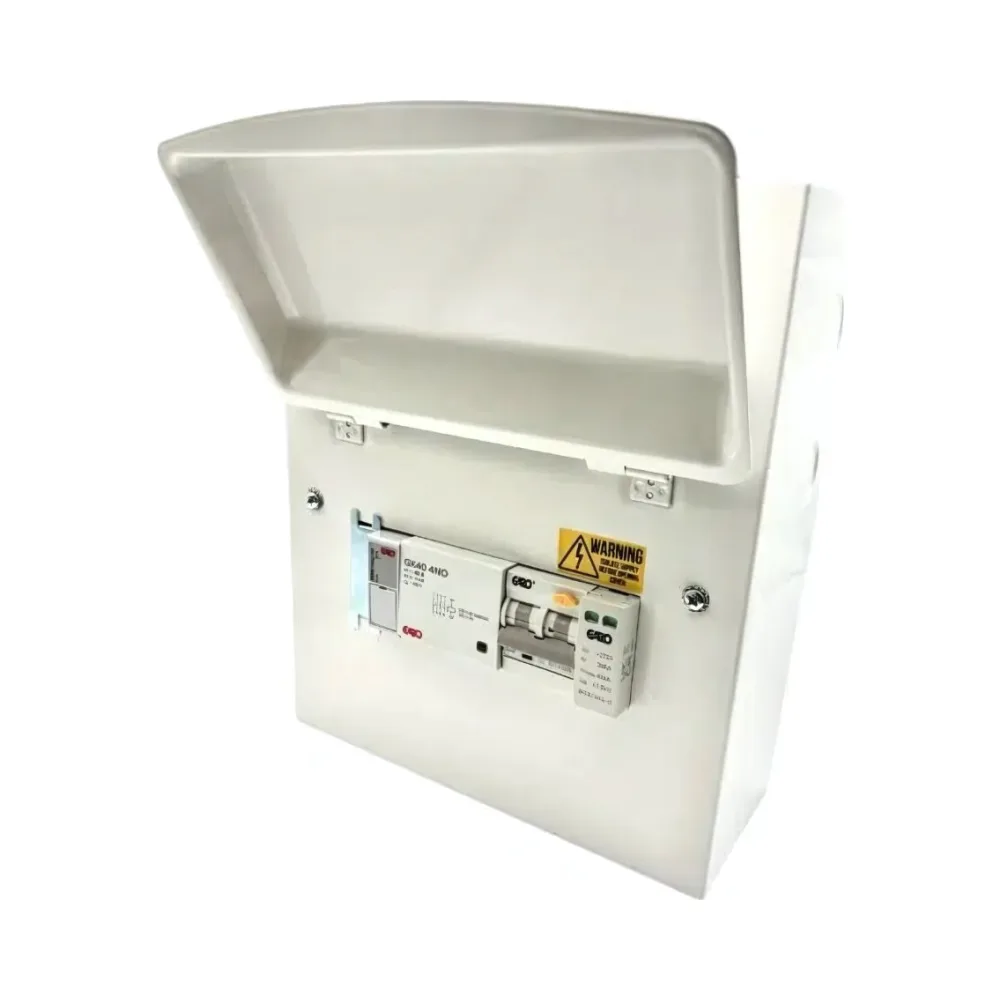

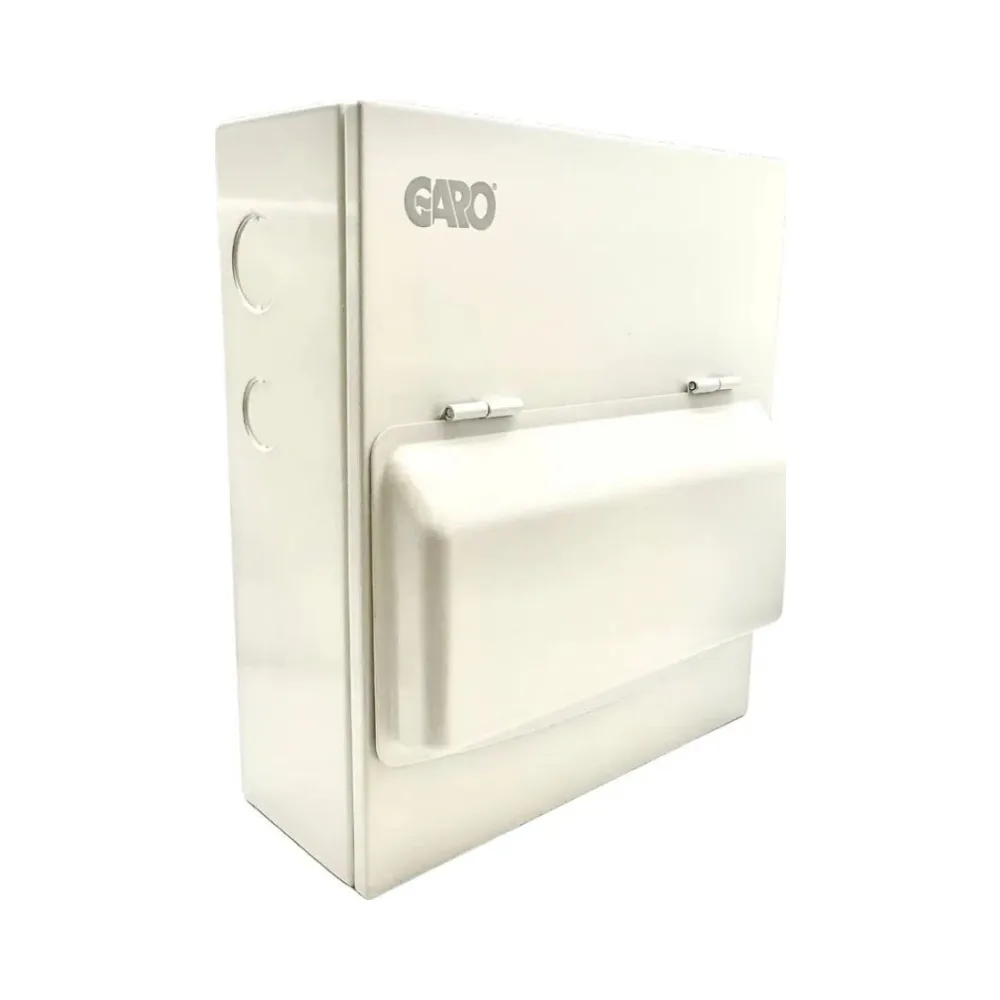

The Garo GS8EV40CPME EV Charger Consumer Unit is purpose-built for domestic EV charging setups. It combines a robust 8-way metal enclosure with key safety features, including a 40A Curve C Type A RCBO, built-in PEN fault detection, and a Type 2 surge protection device (SPD)—all in one installer-friendly package.
Unlike many other units, the GS8EV40CPME does not require an earth rod thanks to its integrated PEN fault protection. With the higher inrush handling of a Curve C RCBO, it’s ideal for EV chargers with variable startup loads.
Even better, when a voltage issue or PEN fault occurs, the unit disconnects power to keep your system safe. Once the voltage returns to normal and the fault clears, the unit automatically resets itself, and charging resumes without manual intervention.
The unit is fully compliant with IET BS 7671:2018 (Amendment 1:2020) and offers disconnection within 5 seconds when voltages exceed 253V or fall below 207V, giving you and your customers peace of mind.
🔧 Key Features of the Garo GS8EV40CPME
- ⚡ 40A Curve C Type A RCBO (Double Pole)
- ⚠️ Built-In PEN Fault Detection – No earth rod required
- 🌩️ Type 2 SPD Included – Protects from overvoltage and surges
- 🧱 IP40 Metal Enclosure – Durable and compact for indoor use
- 🔌 8-Way, Fully Populated Board – All-in-one setup for fast installs
- 🚗 EV Compatible – For chargers with built-in DC leakage protection
📐 Technical Specifications
- Rated Current: 40A
- Rated Voltage: 230V AC
- Frequency: 50/60 Hz
- RCBO Type: Type A – 40A, Curve C
- Short Circuit Capacity: 16kA rms at 250V (Annex ZB)
- Operating Voltage Range: 213–253V
- Disconnection Time: ≤5 seconds
- Total Ways: 8 (fully populated)
- Protection Rating: IP40
- Material: Metal
- Terminal Capacity: 25mm
- Compliance: EN 61439-3, BS 7671
- Ambient Operating Temperature: -25°C to +55°C
- Storage Temperature: -35°C to +55°C
- Dimensions: H 235mm x W 197mm x D 110mm
- Warranty: 5 Years Mechanical, 2 Years Electronic
📜 Regulatory Compliance
Complies with BS 7671:2018 Regulation 543.3.3.101(ii) for automatic disconnection in case of voltage deviation beyond 207–253V. Also meets Regulation 722.411.4 for TN systems (Amendment 1:2020).
💡 Why Choose the Garo GS8EV40CPME?
- ✅ Fully Compliant – Meets all current EV and electrical safety regulations
- ✅ Installer-Friendly – No PME relay or earth rod neede
- ✅ Complete Safety – Combines surge protection, PEN fault detection, and RCB
- ✅ Curve C Advantage – Handles higher inrush current—ideal for modern EV chargers
- ✅ Compact and Clean – Fully populated, no spare ways, no extras needed
✅ Summary of the Garo GS8EV40CPME EV Charger Consumer Unit
The Garo GS8EV40CPME is a fully populated EV charger consumer unit featuring a 40A Curve C Type A RCBO, Type 2 SPD, and built-in PEN fault detection. It simplifies EV charger installations, eliminates the need for earth rods, and ensures total compliance with UK wiring regulations.
