EV Consumer Unit with PEN Fault Detection and 40A Type A RCBO

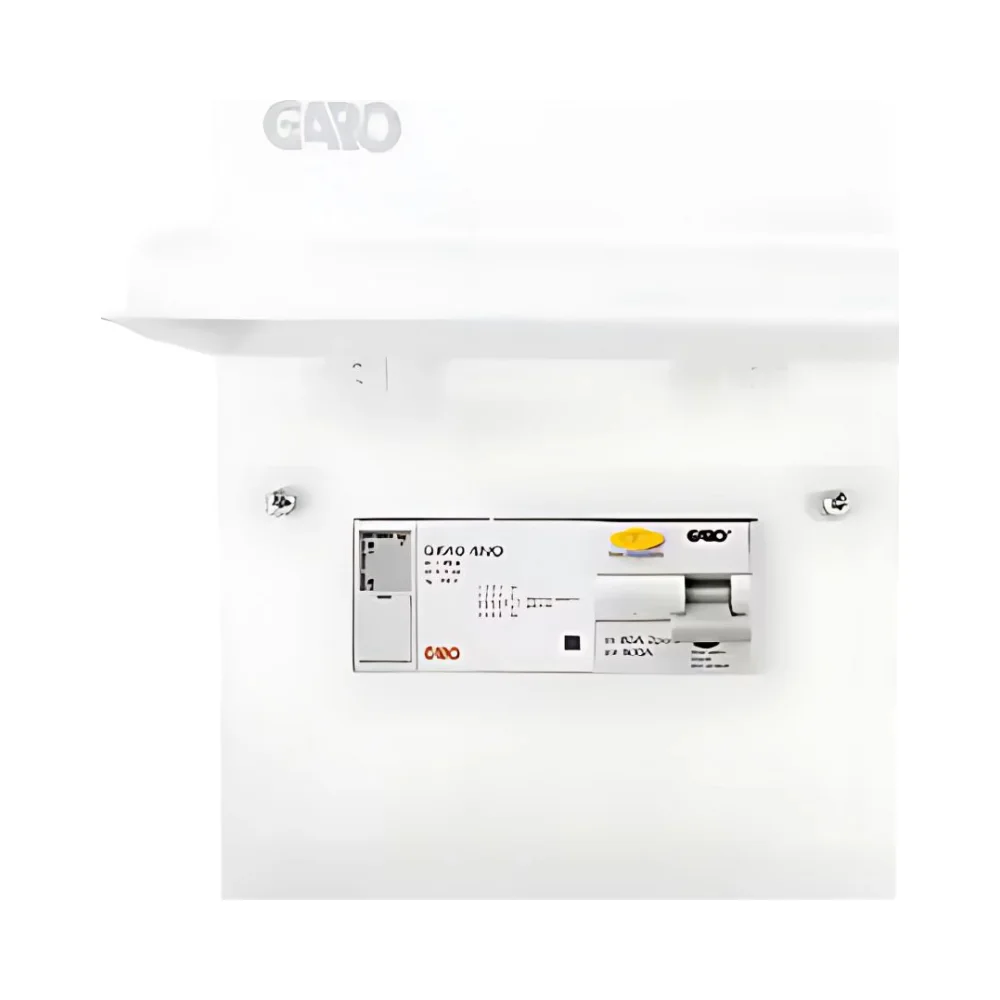

Garo G6EV40PME – PEN Loss EV Consumer Unit for Domestic EV Charger Installations
Advanced Protection for EV Charging with PME Fault Detection
Introductory Description
The Garo G6EV40PME EV Consumer Unit is a compact, regulation-compliant solution built specifically for domestic EV charger installations. This pen loss EV consumer unit features a factory-installed 40A Type A RCBO and integrated PME fault detection.
As a pre-wired PME fault detection consumer unit, it protects against the dangers of broken PEN conductors (PEN loss) and provides compliance with the latest BS 7671 18th Edition wiring regulations, including Amendment 1:2020. Its IP40-rated, fire-resistant metal enclosure makes it ideal for space-conscious and safety-focused installs.
Key Features of the Garo G6EV40PME PEN Loss Consumer Unit
- B40A Type A RCBO – Provides overload, short-circuit, and residual current protection.
- Integrated PME Fault Detection – Monitors voltage and disconnects all conductors in the event of a PEN loss.
- Voltage Monitoring Range – 207V–253V over 4 seconds for automatic disconnection if unsafe voltages are detected.
- Rated Conditional Short Circuit Current – 16kA rms at 250V (Annex ZB).
- IP40 Degree of Protection – Designed for safe indoor use.
- Fire-Rated Metal Enclosure – EN 61439-3 & Amendment 3 compliant for domestic use.
- No Free Ways – 6 usable ways, fully configured and ready to install.
- Compact Size – H: 235mm × W: 161mm × D: 110mm – ideal for wall-mounting.
- Terminals – 25mm terminals allow for secure and reliable connections.
- Temperature Tolerance – Operates from -25°C to +55°C (storage -35°C to +55°C).
- BS 7671 Compliant – Fully meets 18th Edition Wiring Regulations and Amendment 1:2020.
- Warranty – 5 years mechanical, 2 years electronic components.
Understanding PEN Loss and PME Fault Protection
In TN-C-S systems (also called PME), the neutral and earth conductors are combined into one (PEN conductor). If the PEN conductor is damaged or lost—known as a PEN fault—dangerous voltages may be present on the earth terminal, posing a risk of electric shock.
The Garo G6EV40PME features PEN fault detection that actively monitors voltage levels and automatically disconnects all live conductors, including earth, within 4 seconds if the voltage moves outside the safe 207V–253V range.
This level of safety complies with Regulation 543.3.3.101(ii) and 722.411.4 of BS 7671:2018 (Amendment 1:2020), eliminating the need for external earth rods in EV installations on TN-C-S systems.
Why Choose Garo G6EV40PME PEN Loss Consumer Unit?
The Garo G6EV40PME is a trusted, compact EV distribution solution for homes on PME earthing systems.
- No need for separate earth rods
- Fully pre-configured for quick installation
- Meets all 18th Edition & Amendment 1 requirements
- Ideal for domestic EV charger installations on TN-C-S (PME) systems
- Installer-friendly, space-saving design with reliable Garo engineering
About the Brand – Garo
Garo Electric is a reputable European brand, trusted for reliable, regulation-compliant electrical components. Their EV protection solutions are engineered for long-lasting performance and installer confidence, with a strong focus on safety and innovation.
Summary of the Garo G6EV40PME PEN Loss Consumer Unit
The Garo G6EV40PME EV Consumer Unit is a regulation-compliant, compact unit tailored for domestic EV charger installations on PME systems.
With built-in PEN fault detection and a pre-installed Curve B 40A Type A RCBO, this PME fault detection consumer unit protects both people and property from dangerous PEN loss scenarios—without the need for external earth rods. Ideal for modern homes, this fire-rated unit is ready to install and fully compliant with BS 7671 and Amendment 1:2020.
