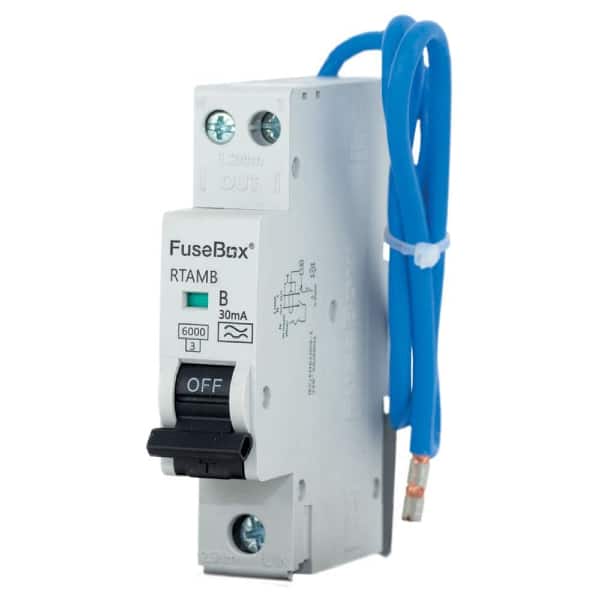

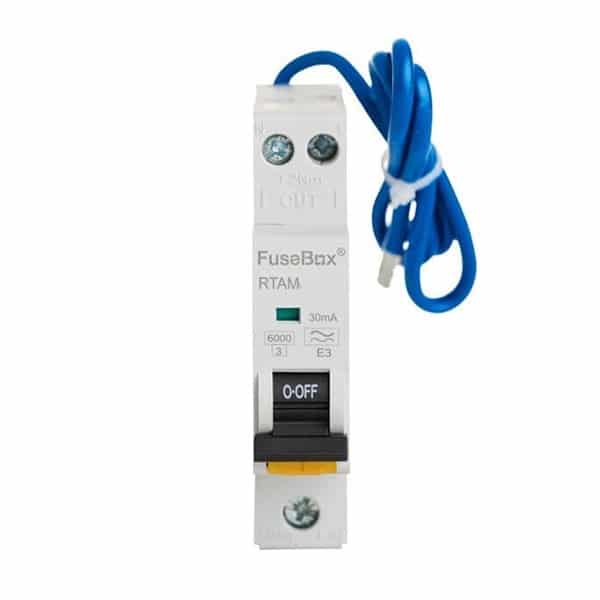

FuseBox RTAMB16 16A Mini Type A RCBO

Description

FuseBox RTAMB16 16A B Curve Mini Type A RCBO

FuseBox RTAMB16

The Fusebox RTAMB16 is designed for use in FuseBox consumer units, this miniature Type A RCBO responds to both AC and pulsating DC residual currents.

The RTAMB16 compact RCBO benefits from Double Pole switching (Switched Live and Neutral) making it ones of the safest devices to fit. It protects against both over currents due to overload and fault and residual current earth leakage.

In either event, the RCBO interrupts electrical supply to the circuit thus preventing damage to the installation and devices and electric shock to humans.

• 2 Pole switched live & neutral
• Type A* – Sensitive to AC & DC Faults
• Available in current ratings ranging from 6A to 40A
• 30mA B-Curve (C-Curve also available)
• 6kA
• Compact in size
• Single Module width
• Terminal capacity: 1-16mm² L in, 1-10mm² L out
• Designed for use with Fusebox consumer units

The FuseBox 16A Compact Size 30mA Curve B RCBO Type A offers reliable circuit protection in a compact design. It supports up to 16A and provides 30mA residual current protection, ideal for residential and light commercial use. This RCBO combines RCD and MCB functions, detecting both AC and pulsating DC currents for comprehensive safety.
