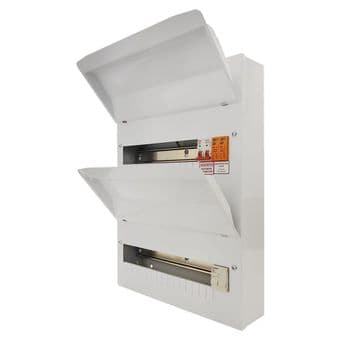

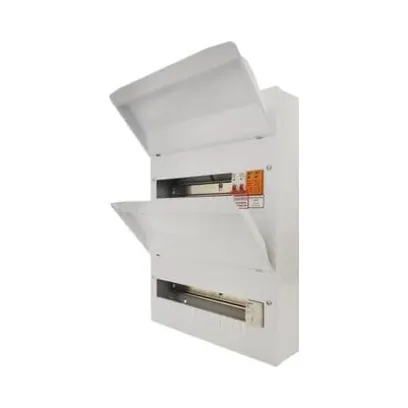

Fusebox F2029MX 29 Way RCBO Consumer Unit With SPD

Description

Double Row 29 Way SPD RCBO Metal Consumer Unit

Fusebox F2029MX

The FuseBox F2029MX 29 Way RCBO Consumer Unit is a high-capacity double stack consumer unit, designed for superior circuit protection in residential, commercial, and industrial applications. This two-row consumer unit provides 29 useable ways, integrating RCBO protection with a built-in Surge Protection Device (SPD) to guard against transient overvoltages. With FuseBox’s reputation for quality and compliance, this unit ensures maximum safety, reliability, and ease of installation for large-scale electrical setups.

Key Features of Fusebox F2029MX 29 Way RCBO Consumer Unit With SPD

• 29-Way RCBO Protection: Accommodates 29 RCBOs, offering full circuit separation for overload and earth leakage protection.
• Integrated T2 Surge Protection Device (SPD): Protects against voltage surges caused by lightning or grid fluctuations.
• Double Stack Consumer Unit Design: Space-efficient two-row layout for organized circuit management.
• Durable Metal Enclosure: 1mm electro-galvanised steel (zinc) for robust construction, compliant with Amendment 3.
• Spacious Layout: Provides extra height for RCBOs, ensuring easy wiring and future expansion.
• Removable & Raised DIN Rail: Allows for improved wiring access and installation flexibility.
• Pre-Cut Knockouts: Round 20mm & 32mm knockouts (top & bottom) and 40mm knockouts (sides) for cable entry.
• Secure Fixings & Accessories: Captive screws, busbar shroud, grommet strip, and ACCF tail clamp included for a clean, professional setup.
• 18th Edition Compliance: Fully meets BS7671 safety standards, ensuring regulatory compliance.
• IP20 Rated: Provides added protection for electrical components.

Technical Specifications

• Product Type: FuseBox RCBO Consumer Unit
• Number of Ways: 29 Usable Circuits
• Main Switch Rating: 100A
• Surge Protection Device: Built-in T2 SPD with MCB protection
• Enclosure Material: Fire-rated, non-combustible metal
• Regulation Compliance: 18th Edition BS7671
• Mounting: Surface mountable
• Dimensions: Height: 512mm, Width: 378mm, Depth: 113mm

Applications

• Large Residential Installations: Ideal for larger homes requiring extensive circuit protection.
• Commercial & Industrial Buildings: Perfect for offices, retail stores, workshops, and industrial units with multiple circuits.
• Upgrading Older Fuseboards: A modern upgrade for outdated units, ensuring compliance and better safety.

Why Choose the FuseBox F2029MX 29 Way RCBO Consumer Unit?

The FuseBox F2029MX 29 Way RCBO Consumer Unit is a high-performance double stack consumer unit, delivering maximum circuit protection with RCBOs on each circuit and a built-in SPD. Designed for large electrical installations, it meets 18th Edition regulations while ensuring safe, compliant, and efficient wiring. Its two-row consumer unit layout maximises space and simplifies installation, making it the ideal choice for electricians and installers working on complex setups.
