Intumescent Cable Tray Pillow – 225x50mm
Reliable Fire Protection for Cable Tray Penetrations -Envirograf TE09 Intumescent Cable Tray Pillow – 225x50mm
Envirograf TE09
The Envirograf TE09 Intumescent Cable Tray Pillow is designed to provide exceptional fire protection for cable tray penetrations in fire-rated walls, floors, and ceilings. Constructed with reinforced glass cloth and filled with a fireproof sponge and intumescent material, this firestop solution expands up to 3 times its size when exposed to fire, ensuring effective sealing and up to 4 hours of fire integrity.
Key Features
- Expands on Fire Exposure – Intumescent material expands up to 3 times its size, sealing gaps in fire-rated structures.
- High Fire Protection – Provides up to 4 hours of fire integrity, preventing the spread of fire and smoke.
- Flexible & Removable – Designed for easy installation, removal, and reinstallation, ideal for wiring maintenance.
- Reinforced Construction – Made from reinforced glass cloth with a fireproof sponge, ensuring durability and efficiency.
- Non-Fibrous & Dust-Free – Safe for use in sterile environments such as clean rooms and medical facilities.
- Versatile Application – Suitable for metal and plastic cable trays in walls, floors, and ceilings.
Technical Specifications
- Dimensions: 225mm x 50mm
- Material: Reinforced glass cloth with fireproof sponge and intumescent
- Fire Protection: Up to 4 hours of fire integrity
- Expansion Rate: Expands up to 3 times its size
- Installation: Retention tag for secure fixing; can be riveted or screwed for easy refitting
Application Instructions

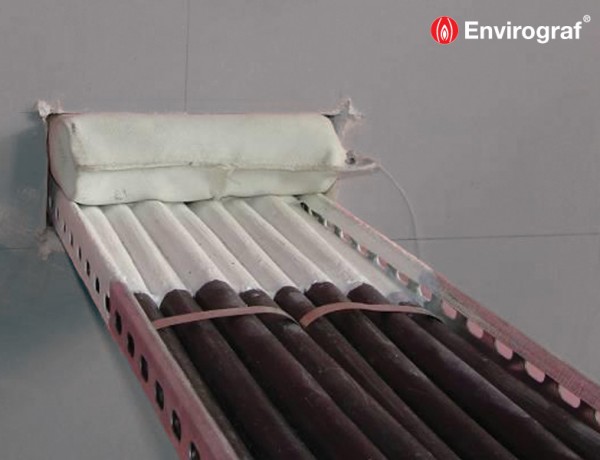

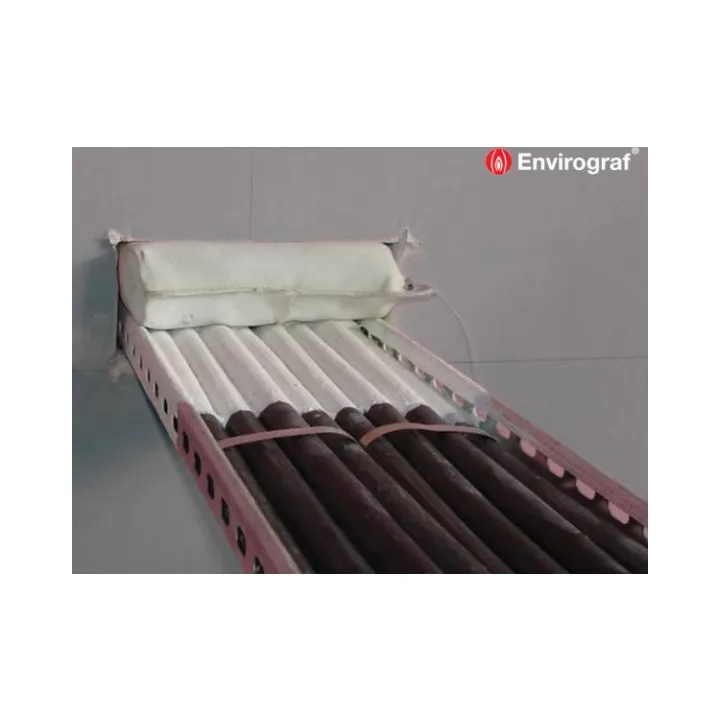

- Insert the intumescent pillow into the opening where the cable tray passes through the fire-rated wall, floor, or ceiling.
- Secure the pillow using the attached cord and retention tag, which can be riveted or screwed onto the cable tray.
- Easily remove and refit the pillow when required for wiring inspection or maintenance.
Why Choose the Envirograf TE09 Intumescent Cable Tray Pillow?
- Expands to seal penetrations during a fire, preventing flame and smoke spread.
- Provides up to 4 hours of fire integrity, exceeding industry standards.
- Easy to install and remove, making it ideal for maintenance access.
- Safe, non-fibrous material, perfect for sterile environments.
- Compliant with fire safety regulations, ensuring peace of mind in commercial and industrial installations.
Summary
The Envirograf TE09 Intumescent Cable Tray Pillow (225x50mm) is a high-performance firestop solution, designed to expand up to 3 times its size in a fire, sealing penetrations in walls, floors, and ceilings. Offering up to 4 hours of fire integrity, this dust-free and non-fibrous fire protection pillow is ideal for cable tray installations, ensuring reliable and easy-to-maintain fire resistance.
