Description

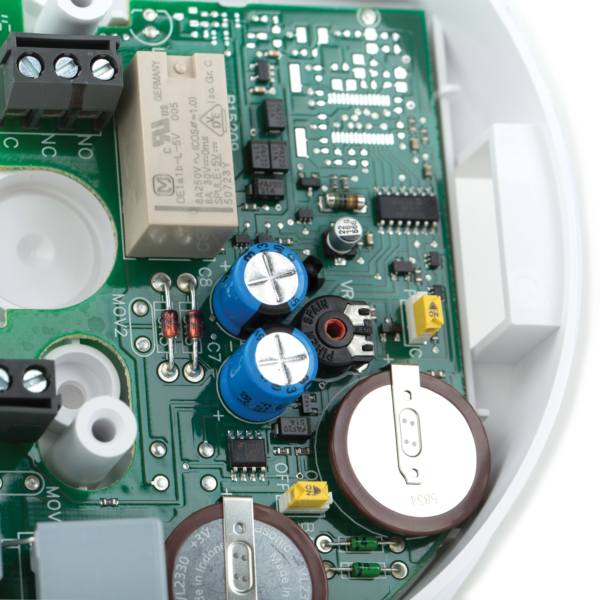

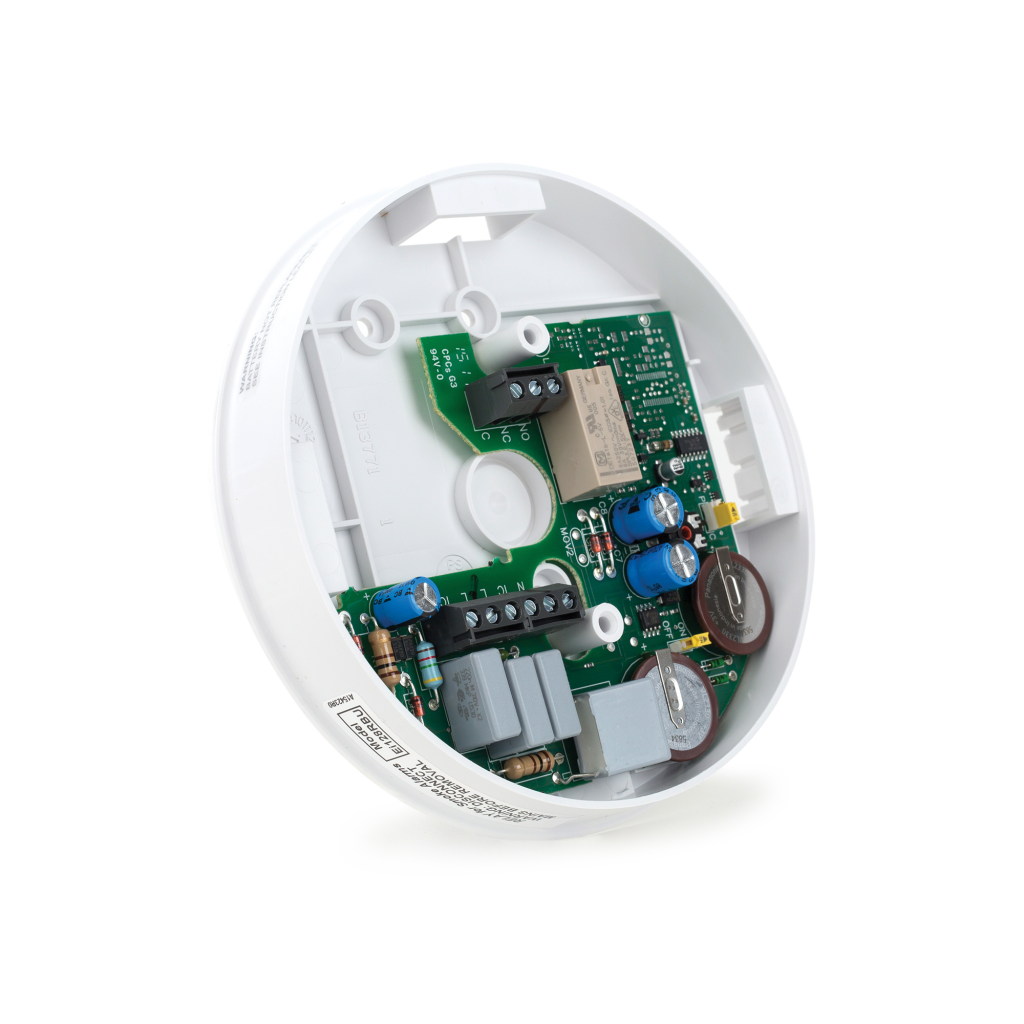

The Aico Ei128RBU Hard Wired Relay Module With Battery Back Up works with 3000, 2110e, 160e, and 140e Series alarms, as well as 260RC Series Carbon Monoxide alarms when using the Ei128COV cover. This versatile module ensures reliable performance with a rechargeable lithium battery back-up, providing continuous operation during mains power failure.
Key Features:
- Compatibility: Works with 3000, 2110e, 160e, 140e Series alarms, and 260RC Series Carbon Monoxide alarms (with Ei128COV cover).
- Battery Back-Up: Rechargeable lithium battery ensures up to 2 months of operation without mains power.
- Flexible Contacts: Configurable volt-free contacts to switch 230V or 24V devices.
- Easy Wiring: Trunking knock-outs and additional connectors for neat and straightforward wiring.
- Operation Modes: Continuous or pulse operation to suit various applications.
- Discreet Installation: Fits neatly behind any smoke or heat alarm.
- Guaranteed Quality: Comes with a 5-year guarantee.
Power and Battery Back-Up
The Aico Ei128RBU Hard Wired Relay Module With Battery Back Up runs on 230V AC mains power. It includes built-in, tamper-proof lithium cells that provide battery back-up during mains failure. These rechargeable lithium cells last for 10 years, outlasting the module itself, and provide up to 2 months of operation without mains power.
Installation
You can use any combination of 3000, 2110e, 160e, 140RC, or 260RC Series alarms (up to 12 units, including the Relay). The module fits underneath any smoke or heat alarm. If needed, use the supplied cover for remote siting. The module also features additional trunking knock-outs for easy wiring.
Operation of the Ei128RBU
When the alarm system sends a signal, the relay contacts operate, sending a signal to the connected device. You can use the Ei128RBU to switch into a range of devices, from warden call systems to panel systems. Modify it for 230V or 24V output to operate various devices.
Output
You can set the module to provide a pulse or continuous output. In pulse mode, the relay contacts switch back to their original state after 5 seconds.
Technical Specification
- Operation: Activates upon receiving a signal from the interconnect line of a smoke, heat, or CO alarm.
- Contacts: Volt-free (Normally Open or Normally Closed) rated up to 240V AC / 5 Amps.
- Interconnection: Supports up to 12 units in total (including the Ei128RBU) in an interconnected alarm system.
- Installation: Designed to be sited under listed smoke/heat alarms; a cover is provided for remote installation.
- Connector Block: Fitted with a 4-way connector block for ease of wiring.
- Dimensions: 135mm diameter x 20mm depth.
- Weight: 265g, inclusive of packaging.
- Manufactured: Made in Ireland.
- Trunking Knockouts: Features 3 x 25mm knockouts for surface wiring and a centre knockout for recess wiring.
- Guarantee: 5-year guarantee.
