Description
D-Line Safe-D F-Clip 50 Cable Fasteners 165x20x35mm – 50 Pieces

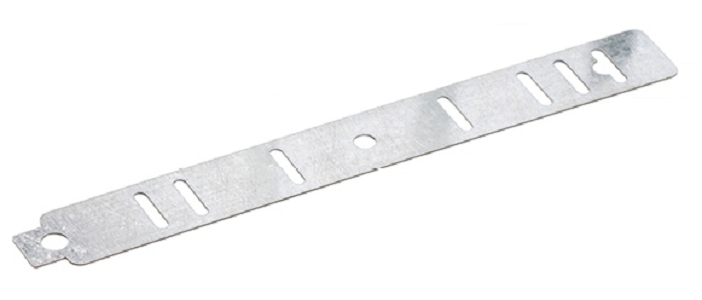

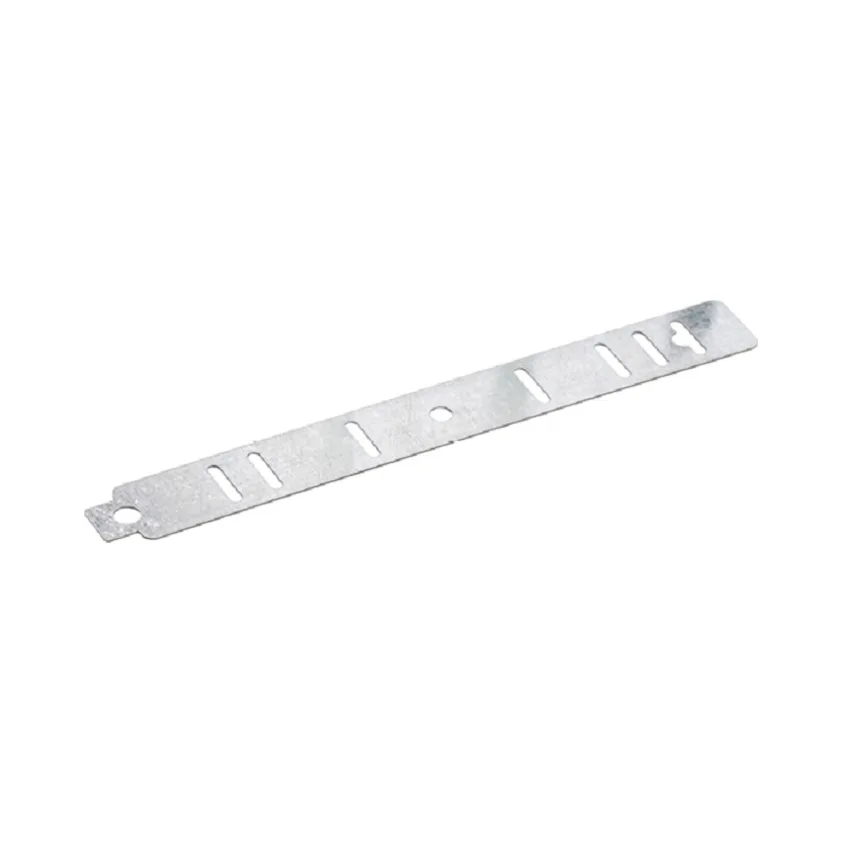

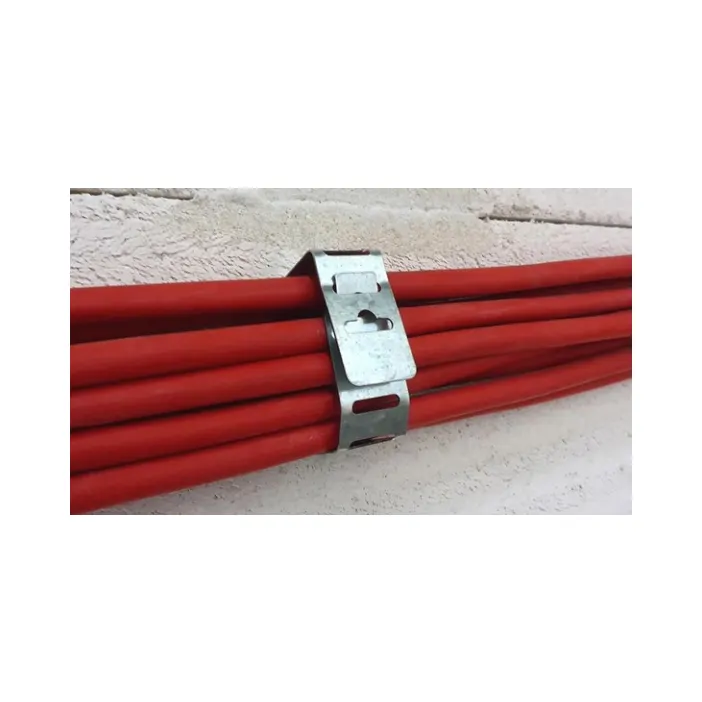

F-Clips are fire-rated flexible cable supports that are supplied in flat form, and can be folded in seconds to make a variety of shapes to most effectively secure cable installations.
Users simply fold upright those notches which are either side of the base fixing hole (5.7mm dia) to make the required shape that can fit direct-to-surface or inside non-metallic trunking systems.
Flat, Flexible, Foldable & Fire-Rated: Safe-D F-Clip 50 is a fire-rated flexible cable clip that is supplied in flat form, and can be quickly folded to make a variety of shapes to most effectively secure cable installations.

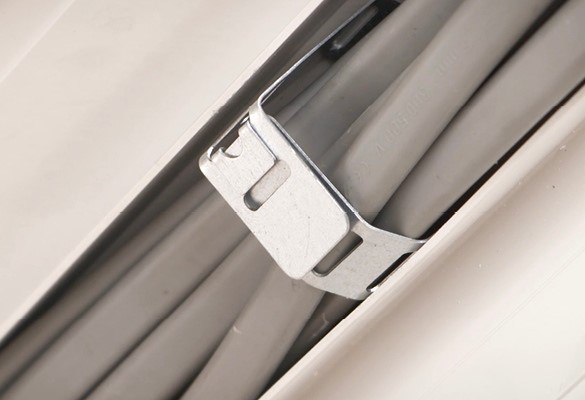

The first notches (either side of the 5.7mm hole) can be simply folded to make vertical tabs; with the base being perfect for use in 50mm width non-metallic trunking. The locking tab can then be passed through any opposing notch, according to the volume of cables to be secured.
Being 165mm long, this F-Clip is most versatile, and can be easily shaped however required, while users appreciate the pocket-friendly design saves handling and fitting time. In fire-conditions D-Line fire clips can withstand 970ºC for at least 2 hours, assuring that cable installations will not collapse. F-Clips have been extensively fire-tested on both wall planes and underside ceilings.
Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.
- Supplied flat:
- Space efficient and pocket friendly
Easier handling – to save installation time - Easy folding to consider space and cable volume

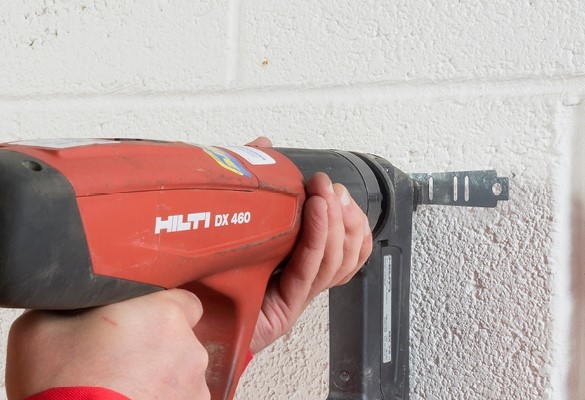

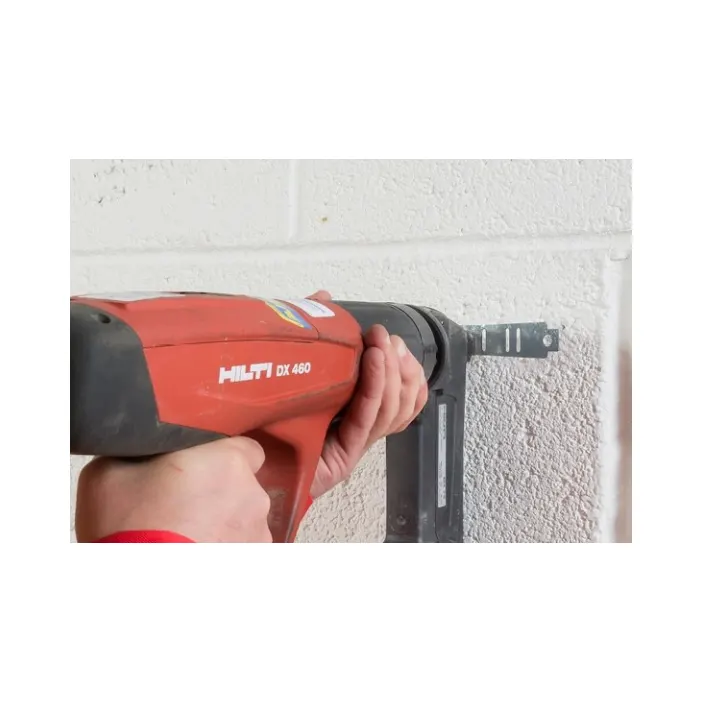

- Perfect for shot fired fixings
- Space efficient and pocket friendly
- >1200°C melting point
- Certified for 2 hours at 970°C
- Compliant with BS7671 and BS5839-1 requirements
- 3x fixing holes for versatility, ideal for use with D-Line D-Fixings

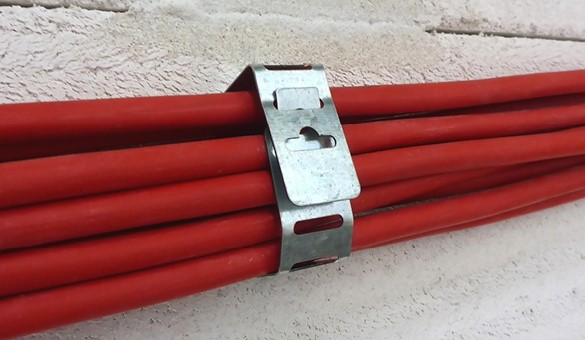

- Locking feature to hold cables most securely – simply push the tab through the preferred notch
- Locking tabs can be return-folded for a more secure installation
- Thumb friendly, rounded corners, 20mm wide, and pliable for easy installation

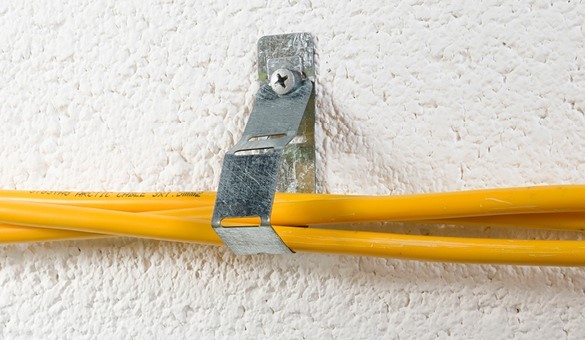

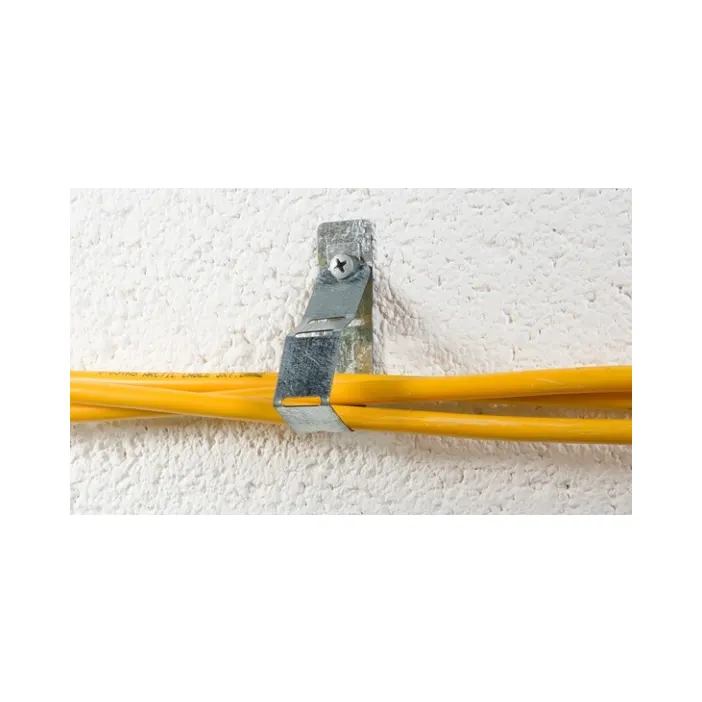

- Fit direct to surface, or in PVC trunkings
- Easy to later add or remove cable(s)
- Space efficient and pocket friendly
- Uniquely versatile – for shaping as required
- Easy folding to required shape, to suit space & cable volume
- Easy to later add or remove cable(s) – can be opened/closed up to 5x
- Slots enable use as a cable tie base
- Dimensions:
- 165mm (L) x 20mm (W) x 35mm (H) (folded – max height)
- 5.7mm diameter pre-drilled hole in base
