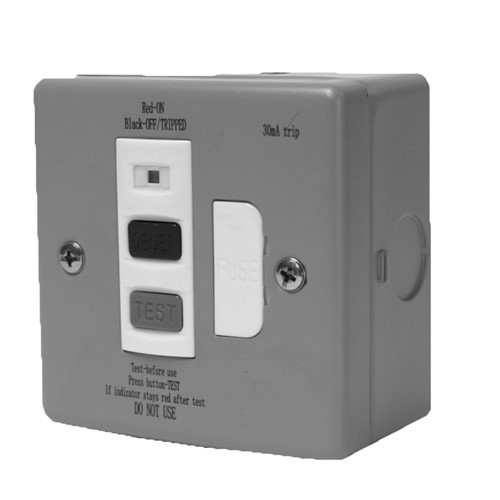

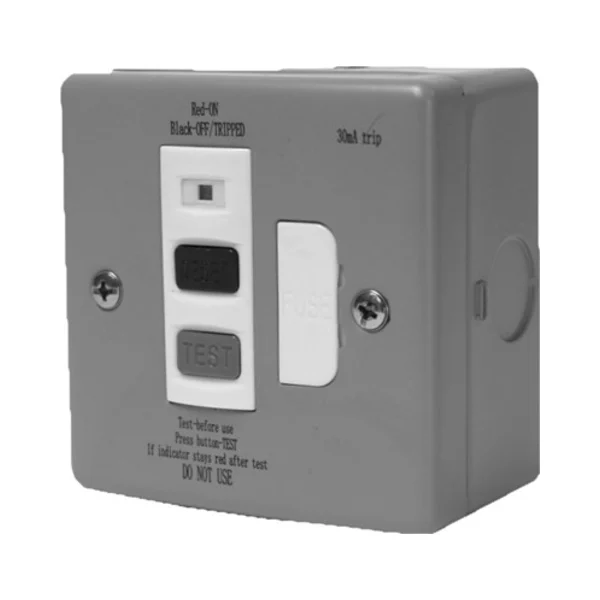

Axiom WMRCDSP 30mA RCD Metal Clad 13A Fused Spur

Description

30mA RCD Metal Clad 13A Fused Spur

Axiom WMRCDSP

The Axiom WMRCDSP 30mA RCD Metal Clad 13A Single Spur is a robust and reliable safety device, designed to provide residual circuit protection for equipment, household appliances, and commercial applications. Featuring a built-in RCD with a 30mA trip current, this unswitched fused spur offers enhanced safety, protecting against electric shock and fault currents.

Its durable metal-clad construction makes it ideal for high-demand environments such as workshops, garages, and commercial spaces. The test and reset buttons allow for quick safety checks, while the manual reset function ensures controlled power restoration after a trip.

Key Features & Benefits

• 30mA RCD Protection – instantly isolates power to prevent electric shocks and faults.
• Durable Metal-Clad Design – ensures long-lasting performance in industrial and commercial environments.
• Manual Reset Function – prevents automatic reactivation after a trip, adding an extra layer of safety.
• Test & Reset Buttons – allows for easy safety checks and fault diagnosis.
• Unswitched Spur – provides continuous power supply for fixed appliances.
• Quick Response Time – trips in 40ms or less, ensuring rapid fault isolation.
• High Durability – rated for 3000+ endurance cycles, guaranteeing long-term reliability.
• Conforms to BS7288:1995 & BS1363 – fully compliant with UK electrical safety standards.

Technical Specifications

General Information

• Model: Axiom WMRCDSP
• Colour/Finish: Grey (Metal Clad)
• Dimensions (mm): 86 x 86
• Minimum Box Depth (mm): 35
• Ingress Protection (IP): IP4X

Electrical Specifications

• Rated Load Capacity: 13A
• Rated Operating Voltage: 240V
• Frequency: 50Hz
• Trip Current: 30mA
• Break Time: ≤40ms
• Voltage Surge Protection: 4kV (100kHz Ring Wave)
• Cable Clamp Capacity: 3 x 2.5mm²
• Poles: 2
• Earth Terminals: 1

Performance & Construction

• Switch Type: Unswitched
• Certifications: CE, RoHS, BS7288:1995, BS1363
• Warranty: 1 Year

Common Applications

The Axiom WMRCDSP RCD Metal Clad 13A Single Spur is perfect for protecting fixed electrical appliances and installations, including:

• Water heaters & immersion heaters
• Boilers & heating systems
• Workshop & garage power outlets
• Commercial & industrial equipment
• Kitchens & utility room circuits
