Description

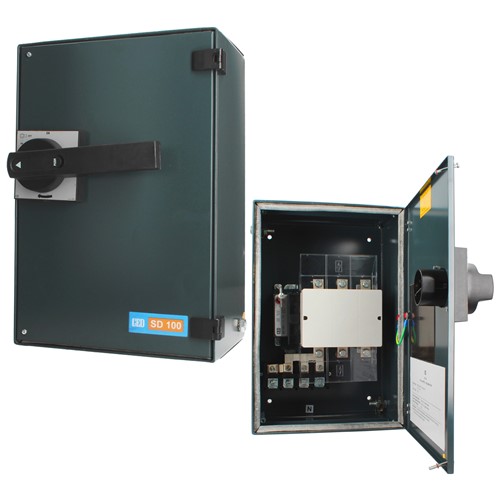

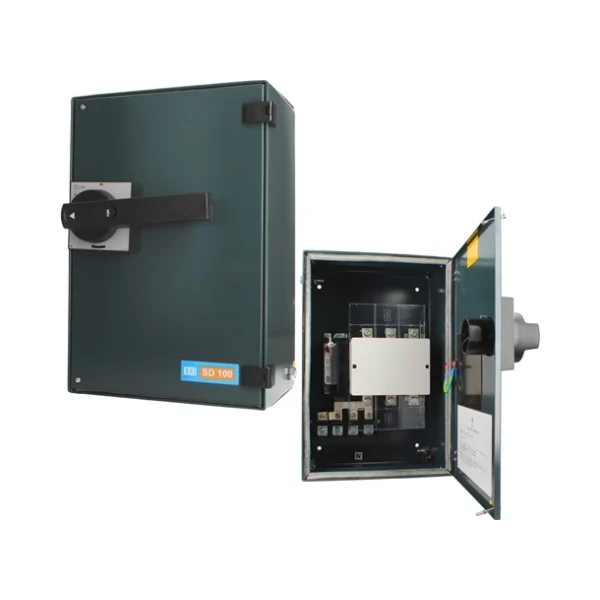

Axiom 100A Isolator TPN Grey Steel Enclosure
Manufactured in compliance to EN60947-3 1992/A1-1995, A2 -1997 and Low Voltage Directive 73/23/EEC.
PRODUCT FEATURES
- Supplied with installation instructions and suitable for use with 250V
- Highest available components to current specifications and supplied with switch fuses
- Fully rated solid neutral and complies to Low Voltage Directive 73/23/EEC and takes BS88 Part 2 – Fuses
- Rust protected epoxy grey powder paint finish with adequate knockouts on each side and lockable handle
- 415V – 440V Triple Pole and Neutral (4 Poles)
TECHNICAL SPECIFICATION
| General Information | |
|---|---|
| Dimensions (mm) | 400 x 273 x 245mm |
| Ingress Protection (IP) | IP41 |
| Product Colour/Finish | Dark Metallic Grey |
| Electrical | |
| Approvals | CE |
| Cable | 1.6mm |
| Input Voltage (V) | 415V – 440V 50Hz |
| Knock Outs (mm) | 2×25 1×32 |
| Load (Amp) | 100Amp |
| Output Voltage (V) | 440V |
| Poles | TPN |
| Rated voltage/amps (vA) | 440vA |
| Terminal Capacity (mm²) | 70mm² |
| Construction | |
| Body | Steel Enclosure |
| Warranty (Years) | 1Yr |
| Other | |
| Applications | Domestic and commercial applications |
