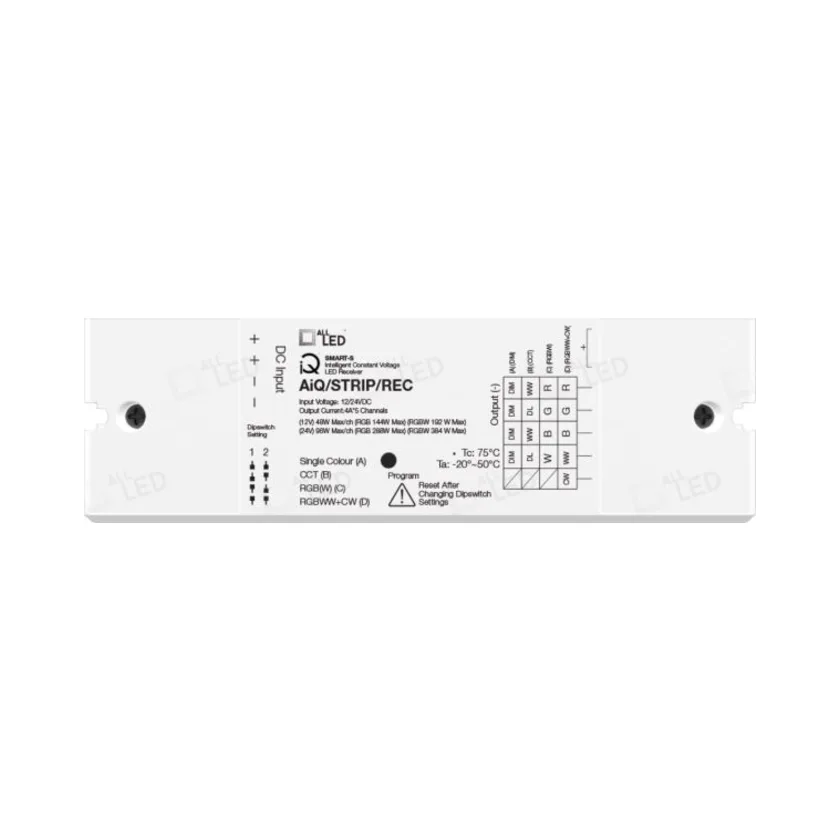

ALL LED AIQ/STRIP/REC iQ Smart-S 12-24V 5-In-1 Intelligent LED Strip Controller

Description

ALL LED AIQ/STRIP/REC iQ SMART-S 12-24V 5-In-1 Intelligent LED Strip Controller

Versatile Lighting Control with the iQ SMART-S LED Strip Controller

The AIQ/STRIP/REC iQ Smart-S LED Strip Controller offers a flexible and advanced solution for managing various LED lighting systems. It integrates seamlessly with Zigbee smart hubs, supporting dimming and multiple LED configurations, including single-colour, Trilogy-CCT, RGB, RGBW, and RGBWW+CW.

Key Features of the iQ SMART-S LED Strip Controller

• 5-In-1 DIP Switch Control: The DIP switch allows easy selection between five different LED strip types. This feature provides flexibility and convenience.
• Wide Compatibility: This controller works with various LED options, including single colour, CCT, RGB, RGBW, and RGBWW+CW strips. It’s a versatile choice for different lighting setups.
• Smart and Manual Control: Use the controller with a Zigbee hub for smart system integration, or control it manually with a corresponding LED remote. This flexibility ensures it suits both smart and traditional setups.
• Easy Programming: Program the controller through a light switch or directly on the device via a program button. This feature simplifies the setup process.
• High Power Capability: The controller supports up to 384W for 24V single-colour and RGBW strips, 288W for RGB, and 192W for CCT strips, catering to various power needs.
• Efficient Operation: With an efficiency rating of 99%, the controller minimises power loss during operation.

Technical Specifications

• Operating Voltage: 12-24V DC
• Max Output Power: 48-96W x 5CH
• Max Output Current: 4A x 5CH
• Max Output Voltage: 12-24V DC
• Efficiency: 99%
• Network Standby Power: 0.24W
• Class: III
• Body Material: White Polymer
• Ingress Protection: IP20
• Ambient Operating Temperature: -20°C to +50°C
• Guarantee: 5 Years
• Output Type: Constant Voltage
