Description

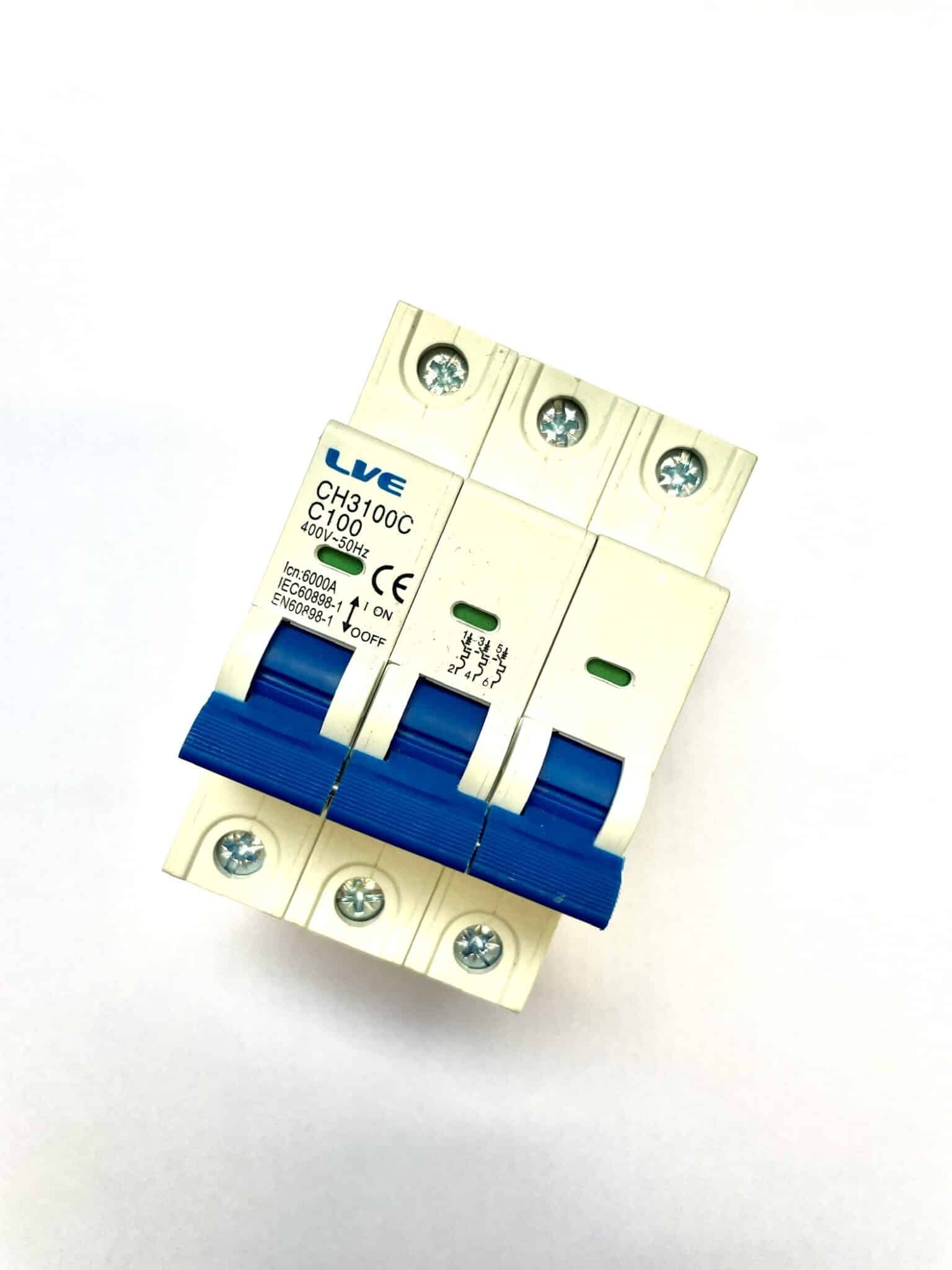

3 Pole 100A C Curve 6kA Miniature Circuit Breaker
Live Electrical Three Phase MCB – CH3100C
The Live Electrical CH3100C 3 Pole 100A C Curve 6kA MCB is designed to provide dependable protection for commercial 3-phase systems. It is especially effective for circuits that experience higher inrush currents, such as those powering motors, transformers, and industrial machinery. Its C Curve tripping characteristic makes it well-suited for these types of loads.
With a 6kA breaking capacity, this MCB ensures reliable protection against fault currents, making it an excellent choice for projects requiring both high quality and budget-conscious solutions.
Key Features:
- 3 Pole 100A MCB: Built for 3-phase systems, offering a current rating of 100 Amps.
- C Curve Tripping Characteristic: Ideal for circuits with higher inrush currents, such as motors and transformers, tripping at 5 to 10 times the rated current.
- 6kA Breaking Capacity: Effectively handles fault currents up to 6kA, providing protection against overloads and short circuits.
- Voltage Rating: Suitable for 230/400V systems, operating at a frequency of 50/60Hz.
- Durability: Rated for 8,000 electrical operations and 20,000 mechanical operations, ensuring reliable and long-lasting performance.
- IP20 Protection: Prevents accidental contact with live parts, making it safe for commercial and industrial environments.
Technical Specifications:
- Poles: 3P
- Rated Voltage (Ue AC): 230/400V
- Frequency: 50/60Hz
- Insulation Voltage (Ui): 500V
- Breaking Capacity: 6kA
- Impulse Withstand Voltage: 4000V
- Dielectric Test Voltage: 2kV
- Thermo-magnetic Release: B, C, D Characteristics
- Electrical Life: 8,000 operations
- Mechanical Life: 20,000 operations
- IP Rating: IP20
- Ambient Temperature: -5°C to +40°C (daily average ≤35°C)
- Storage Temperature: -25°C to +70°C
Conclusion
The Live Electrical CH3100C 3 Pole 100A C Curve 6kA MCB is a cost-effective and reliable option for protecting circuits with higher inrush currents, such as motors and industrial machinery. Its C Curve tripping characteristic and 6kA breaking capacity make it ideal for commercial 3-phase systems. Additionally, its durable design ensures long-lasting protection, making it a smart choice for budget-conscious projects that require top-quality performance.
For project pricing, send us your list of required items via WhatsApp or email, and we’ll provide competitive rates tailored to your needs.
