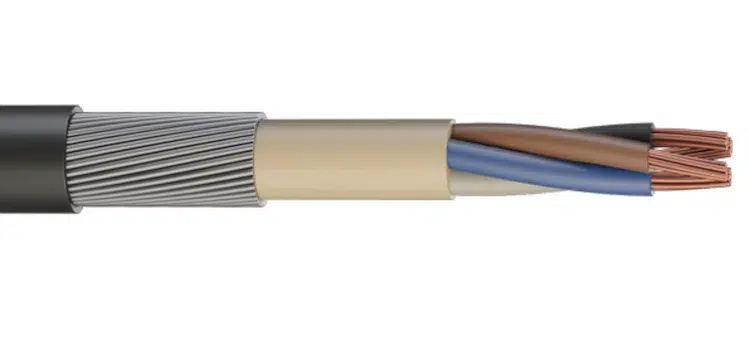

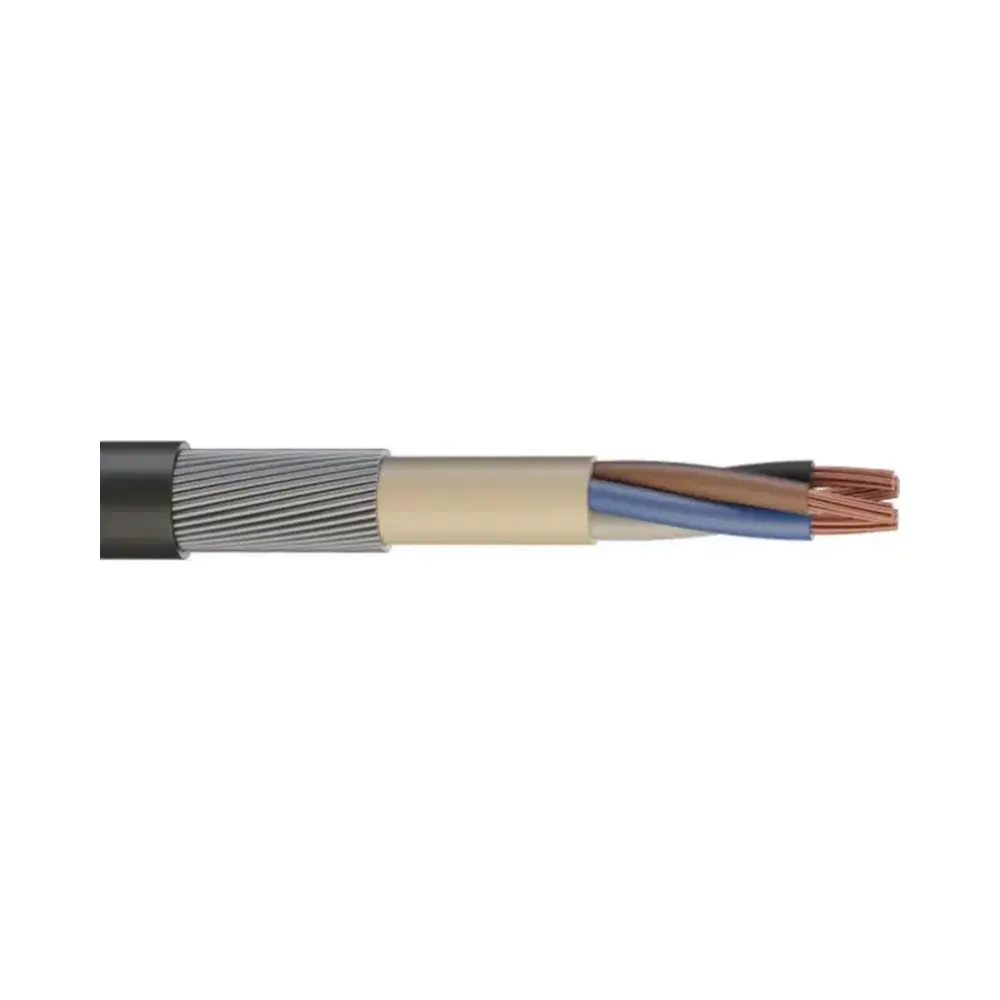

3 Core 4.0mm² 6943B XLPE LSZH SWA Cable – 50m

Description

Premium Armoured Electrical Cable for Industrial Use

Doncaster Cables SWA LSZH Steel Wire Armoured Cable

The Doncaster Cables SWA LSZH Steel Wire Armoured cable is engineered for optimal performance in demanding industrial environments. With its robust construction, it meets British Standards, offering unparalleled reliability and safety in electrical installations.

Overview

Manufactured to BS 6724 specifications, this cable comes in various core configurations including 2, 3, 4, and 5 cores. Its plain annealed copper conductor ensures excellent conductivity, while the cross-linked polyethylene (XLPE) insulation provides exceptional heat resistance. The low smoke zero halogen (LSNH) bedding and sheath reduce the risk of hazardous smoke and gas emissions during a fire.

Key Features of Doncaster Cables LSZH SWA 3 Core 4.0mm² – 50 Metres

• Designed for 600/1000V applications, ensuring high voltage endurance.
• LSNH bedding and sheath help to minimise smoke and toxic gas emissions.
• Robust steel wire armour protects against mechanical damage.
• Wide temperature range: Min operating temperature is -15°C, and max is 90°C.
• Compatible with various installation methods including embedded, buried, and surface mounted.

Applications

This cable is predominantly used for industrial wiring and mains distribution in residential, commercial, and industrial spaces. It is ideal for installations in air, cable trays, or ducts, providing flexibility without compromising safety.

Specifications

Conductor:

1. Plain Annealed Copper Class 2 Stranded to BS EN 60228.

Insulation:

1. Thermosetting XLPE Type GP8 to BS 7655-1.3.

Sheath:

1. LSNH Type LTS1 to BS 7655-6.1.

Min Bending Radius:

1. 8 x Ø.

Core Colours:

1. 2-Core: Brown and Blue; 3-Core: Brown, Black, and Grey; 4-Core: Blue, Brown, Black, and Grey; 5-Core: Green/Yellow, Blue, Brown, Black, and Grey.

Sheath Colour:

1. Black.

Current Carrying Capacity:

Refer to table 4E4A of BS7671 IEE Wiring Regulations for details.

Why Choose This Product

Choosing our premium armoured cable means investing in safety and performance for your electrical installations. It complies fully with the latest BS7671 Wiring Regulations, providing peace of mind. By sourcing from UK-based distributors, you can trust that your cable meets rigorous standards for quality and reliability.
