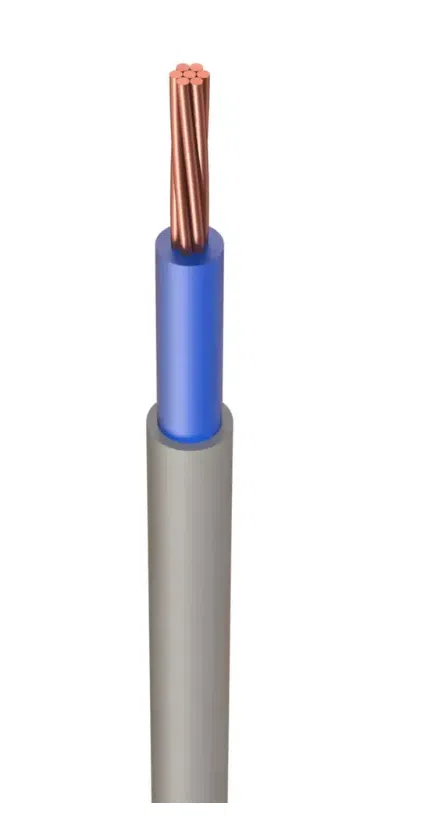

10mm 6181Y Double Insulated Blue Meter Tail – Length Cut per Meter

The 6181Y Single Core Cable is a high-quality option designed for light industrial and domestic wiring applications. Engineered to BS 6004 Table 3 standards, it provides dependable performance in dry or damp settings, particularly suited for use as meter tails.

Quick Overview

The 6181Y Cable offers sturdy construction, with an annealed copper conductor and durable PVC insulation and sheathing. It is ideal for fixed installations, whether in conduit, trunking, ducting, or in open air where mechanical risk is low. However, it is not suitable for underground applications.

Key Features of 10mm 6181Y Double Insulated Blue Meter Tail

• Voltage Rating: 300/500V for secure power flow
• Conductor: Made from plain annealed copper, Class 1 or 2, meeting BS EN 60228 standards
• Insulation: Quality PVC Type TI1, in line with BS EN 50363-3
• Sheathing: Strong PVC Type 6, meeting BS 7655-4.2 standards
• Current Ratings: Refer to BS7671 IET Wiring Regulations Table 4D1 for detailed information
• Temperature Range: Operates from -15°C up to 70°C
• Sheath Colour: Grey for compliance and visibility

Compliance with BS Standards

The 6181Y Cable meets BS 6004 Table 3 standards, ensuring it is a solid choice for meter tails in light industrial and domestic environments. It includes an annealed copper conductor and strong PVC insulation and sheathing, providing both durability and safety for fixed installations.

Conductor and Insulation

This cable uses a plain annealed copper conductor in Class 1 or 2 (BS EN 60228), offering dependable conductivity. Its PVC insulation (Type TI1), compliant with BS EN 50363-3, makes it suitable for use in both dry and damp environments, ensuring reliability across different conditions.

Sheathing and Installation Options

The PVC Type 6 sheath (BS 7655-4.2) provides further protection and durability. It supports a wide range of installations: it can be installed in conduit, trunking, and ducting. For low-risk areas, it can be clipped directly, placed on trays, embedded, or used in open air. However, this cable is not intended for underground installations.

Benefits of 6181Y Cable for Meter Tails

• Ideal for Meter Tails: Provides safe, durable power delivery for light industrial and domestic settings
• Flexible Installation: Easily used in conduit, trunking, ducting, or open-air setups
• Safety-First Design: Made for low-risk environments, delivering consistent, long-lasting performance

The 6181Y Single Core PVC Insulated and Sheathed Cable is a strong choice for meter tails in light industrial and domestic settings. It combines reliable performance, durability, and full compliance with UK standards, making it perfect for fixed installations where safety and efficiency are essential.
