Constant Voltage LED drivers are crucial for powering LED lighting systems, especially LED strips. These drivers regulate the power supply, ensuring that LED strips and other LEDs operate safely and efficiently. By converting high-voltage alternating current (AC) from mains electricity into a low-voltage direct current (DC)—commonly 12V or 24V—they provide the consistent voltage required for optimal performance.

For reliable solutions, trusted brands like Aurora LED Drivers, ALL LED Drivers, Saxby LED Drivers, ECOPAC LED Drivers, MEANWELL LED Drivers, and TCI LED Drivers offer high-quality products designed for various applications.

Table of contents

How a Constant Voltage LED Driver is Built

Understanding the construction of Constant Voltage LED drivers sheds light on their efficiency and reliability:

  1. Input Stage: Accepts high-voltage AC input and includes filters to suppress electrical noise, ensuring stable operation.
  2. Rectification and Filtering: Converts the AC input into DC using rectifiers, while smoothing capacitors minimize ripples to deliver a steady DC output for LED strips.
  3. Regulation Stage: Maintains a fixed output voltage—12V or 24V—regardless of input fluctuations or load changes. High-efficiency switching regulators, such as buck or boost converters, are often used.
  4. Output Stage: Supplies regulated DC power to the LED strip, ensuring consistent brightness and protecting against fluctuations.

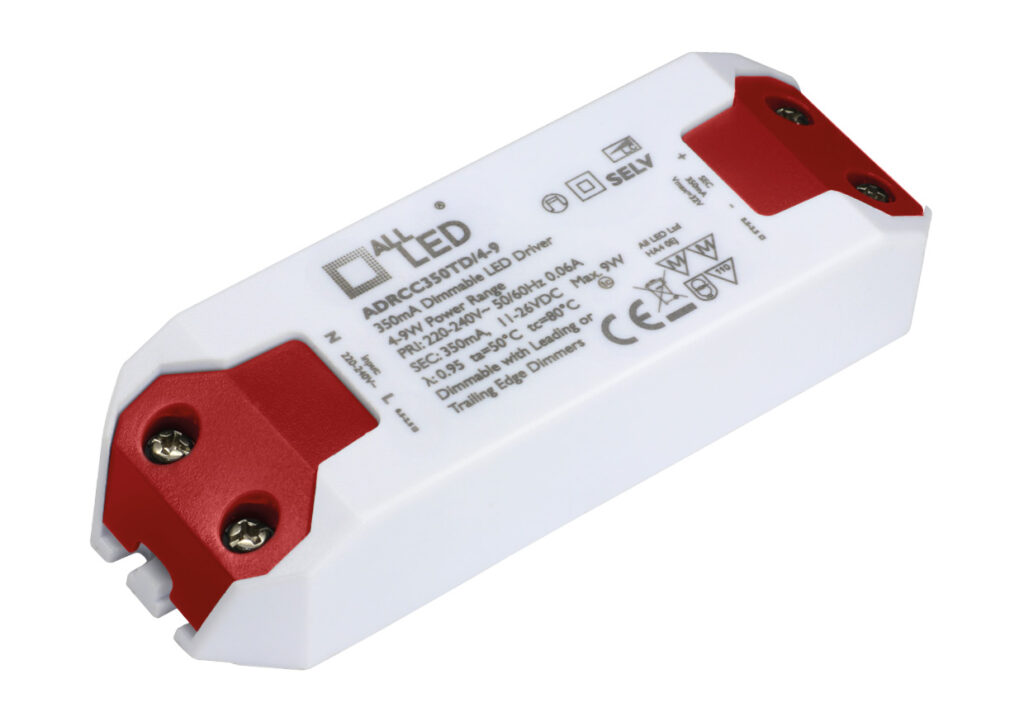

ALL LED ADRCC350TD4-9 Drive350 4-9W Dimmable 350mA Constant Current LED Driver
ALL LED ADRCC350TD4-9 Drive350 4-9W Dimmable 350mA Constant Current LED Driver

Why Constant Voltage Drivers Are Ideal for LED Strips

Constant Voltage drivers are perfectly suited for LED strips that require a fixed voltage. Here’s why:

  • Consistent Brightness: A stable voltage ensures even illumination across the entire LED strip, avoiding flickering or dimming.
  • Compatibility: LED strips are typically designed to operate at either 12V or 24V, making these drivers the ideal choice.
  • Protection: They prevent over-voltage conditions, safeguarding the LED strip and prolonging its lifespan.

For example, 12V Constant Voltage LED Drivers are commonly used for shorter LED strip runs and accent lighting, while 24V Constant Voltage LED Drivers are preferred for longer installations or higher-powered strips, as they minimise voltage drop.

When to Use a 24V Constant Voltage LED Driver

While both 12V and 24V drivers are effective, 24V systems offer specific advantages:

  • Voltage Drop Minimisation: Voltage drop, which causes dimming or uneven brightness along the strip, is less pronounced in 24V systems. This makes 24V drivers ideal for longer LED strip installations.
  • Efficiency in Larger Installations: For extensive setups, 24V systems allow longer runs without additional drivers or power supplies.
  • Reduced Current Load: A 24V system operates at lower current for the same power output, reducing heat generation and improving energy efficiency.

Trusted brands like MEANWELL LED Drivers and ECOPAC LED Drivers provide robust options for 24V LED drivers, ensuring efficient and reliable performance. Enjoy reading A Comprehensive Guide to Constant Voltage LED Drivers.

Saxby 92544 Saxby LED Driver Constant Current 25/30/35/40W Selectable - 600-1000mA 2
Saxby 92544 Saxby LED Driver Constant Current 25/30/35/40W Selectable – 600-1000mA 2

DALI Constant Voltage LED Drivers

For advanced lighting control, DALI (Digital Addressable Lighting Interface) Constant Voltage LED drivers are a game-changer. These drivers not only regulate the voltage but also allow seamless integration into smart lighting systems.

Here’s how they work:

  1. Digital Control: DALI drivers connect to a DALI-compatible control system, enabling individual or group control of LED strips. You can adjust brightness levels, create dynamic scenes, or schedule lighting changes.
  2. Energy Efficiency: By dimming or optimizing light levels based on needs, DALI drivers contribute to energy savings.
  3. Flexibility: They are compatible with both 12V and 24V systems, making them versatile for various LED strip applications.
  4. Precision: DALI ensures smooth dimming and precise control over the lighting environment, perfect for commercial or high-end residential applications.

DALI Constant Voltage LED drivers are available from leading brands such as ALL LED Drivers, ECOPAC LED Drivers, and TCI LED Drivers, offering cutting-edge technology and reliability.

IP Ratings for LED Drivers

Selecting the appropriate IP-rated driver is vital for ensuring durability and functionality in different environments:

  • IP20 Drivers: Suitable for indoor use, these drivers are designed for dry locations, such as under-cabinet lighting or decorative LED strip setups.
  • IP65 Drivers: Ideal for semi-outdoor or damp areas, such as bathrooms, kitchens, or covered patios. They provide dust-tight protection and resistance to water jets.
  • IP66 Drivers: Built for outdoor and industrial applications, these drivers are both dust-tight and resistant to powerful water jets, making them perfect for garden or pathway lighting.

FAQs About Constant Voltage LED Drivers

Q: What is a Constant Voltage LED Driver?

A: A Constant Voltage LED driver provides a stable output voltage (typically 12V or 24V) for LED systems like LED strips, ensuring consistent brightness and protecting against voltage fluctuations.

Q: When should I use a 24V Constant Voltage LED Driver?

A: A 24V driver is ideal for longer LED strip runs to reduce voltage drop and maintain consistent brightness. It’s also more efficient for large installations.

Q: What is the advantage of a DALI Constant Voltage LED Driver?

A: DALI drivers enable digital control of LED strips, allowing precise dimming, energy savings, and integration into smart lighting systems.

Q: Can I use a 12V LED strip with a 24V driver?

A: No, mismatched voltage can damage the LED strip. Always match the driver’s voltage to the LED strip’s requirements.

Q: Which brands provide high-quality Constant Voltage LED Drivers?

A: Trusted brands include Aurora LED Drivers, ALL LED Drivers, Saxby LED Drivers, ECOPAC LED Drivers, MEANWELL LED Drivers, and TCI LED Drivers, offering a wide range of 12V and 24V drivers.

Constant Voltage LED Drivers and LED Strips: The Perfect Match

Constant Voltage LED drivers are indispensable for powering LED strips. Whether you’re using a 12V driver for accent lighting or a 24V driver for longer runs, selecting the right driver ensures safe and efficient operation. For smart lighting needs, DALI drivers from brands like ALL LED, ECOPAC, and TCI offer advanced control and precision. Additionally, choosing the appropriate IP-rated driver enhances durability and reliability, with IP20 for indoor, IP65 for semi-outdoor, and IP66 for outdoor environments.
