Fusebox AFDD: The Complete Guide to Safer, Smarter Electrical Protection

In today’s world, safety isn’t just a priority; it’s essential, especially when it comes to protecting your home from electrical fires. As electrical systems evolve, so too does the technology designed to keep them safe. Fusebox AFDD (Arc Fault Detection Devices) are at the forefront of this advancement. These innovative devices are designed to detect and mitigate potentially hazardous arc faults that could lead to fires if left unchecked. By implementing Fusebox AFDDs within a Fusebox consumer unit, you’re not only aligning with the latest safety standards but also gaining peace of mind.

In this guide, we’ll delve deep into everything you need to know about Fusebox AFDDs—from what they are, why they’re essential, how they work, and how they comply with UK regulations. Whether you’re a homeowner, a property manager, or an electrician, this article will help you understand why Fusebox AFDDs are a game-changer for electrical safety.

What Is a Fusebox AFDD?

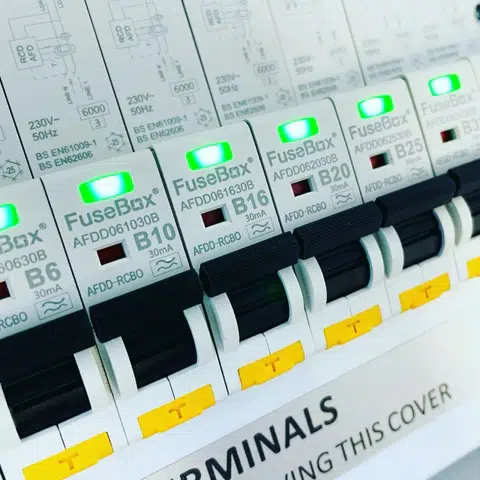

A Fusebox AFDD, or Arc Fault Detection Device, is a safety component designed to be integrated into a Fusebox consumer unit to detect potentially dangerous arc faults in an electrical circuit. Arc faults occur when there is an abnormal connection in the circuit—such as from damaged insulation or a loose wire—which can generate heat and potentially lead to fires. The Fusebox AFDD identifies these issues early and automatically disconnects the circuit, preventing further damage.

AFDDs represent a major leap in electrical safety technology by actively addressing a common cause of electrical fires in homes and businesses. Unlike traditional circuit breakers or RCDs (Residual Current Devices), which protect against overloads, short circuits, and earth faults, AFDDs focus on identifying and neutralizing arc faults specifically.

The Importance of Arc Fault Detection

Arc faults are responsible for a significant number of electrical fires worldwide, and in the UK alone, it’s estimated that more than 15,000 house fires occur each year due to electrical faults. In most cases, these arc faults go unnoticed until they ignite flammable materials. This is where AFDDs become invaluable, offering a level of protection that traditional breakers and fuses simply cannot match.

What Causes Arc Faults?

Arc faults can develop from a range of issues, such as:

• Damaged or deteriorating insulation due to age or excessive heat
• Loose connections at outlets, switches, or within the wiring itself
• Cables pinched or crushed behind walls or furniture
• Environmental factors, such as humidity, dust, or corrosion

AFDDs monitor for these arc faults in real-time, enabling early detection and disconnection of circuits, potentially saving lives and property from fire.

How Does a Fusebox AFDD Work?

The technology within a Fusebox AFDD is remarkably sophisticated. Here’s a simplified breakdown of how it functions:

1. Continuous Monitoring: The AFDD continuously monitors the electrical waveform within the circuit, assessing for any irregularities.
2. Identification of Patterns: When a true arc fault occurs, it produces specific patterns or signatures in the electrical waveform. AFDDs are designed to recognize these patterns.
3. Immediate Response: Once an arc fault is detected, the device instantly triggers and disconnects the affected circuit, stopping the flow of electricity to eliminate the potential for fire.

Differentiating Arc Faults from Common Electrical Patterns

The real power of an AFDD lies in its ability to distinguish genuine arc faults from harmless electrical activities. For instance, certain appliances like vacuum cleaners or power tools may produce arcs that don’t pose a threat. Fusebox AFDDs are calibrated to identify patterns that signify dangerous arc faults, minimizing false alarms while still prioritizing safety.

Why Choose a Fusebox AFDD for Your Consumer Unit?

Choosing to install a Fusebox AFDD in your consumer unit is about enhancing the level of protection your electrical system provides. Here’s why this decision matters:

Enhanced Safety in Homes and Workplaces

Fusebox AFDDs add an additional layer of safety by specifically targeting arc faults, which are responsible for many electrical fires. This layer complements existing protections (like circuit breakers and RCDs) by addressing an area of electrical safety that these devices do not cover.

Flexibility and Compatibility with Existing Systems

Fusebox AFDDs are designed to work seamlessly with Fusebox consumer units, making integration straightforward for both new installations and retrofit applications. This compatibility ensures a smoother transition to upgraded safety without needing extensive rewiring.

Reliability with Cutting-Edge Technology

The Fusebox AFDD range employs advanced arc detection algorithms, which reduce the likelihood of nuisance tripping. By investing in high-quality Fusebox AFDDs, you’re assured of a reliable solution that minimizes disruptions while protecting your property.

Compliance with UK Electrical Safety Standards

In recent years, the UK’s electrical regulations have evolved to promote better safety practices in residential and commercial buildings. The 18th Edition of the Wiring Regulations (BS 7671), introduced by the Institution of Engineering and Technology (IET), highlights the use of AFDDs as a recommended measure in circuits at high risk of arc faults.

When Are AFDDs Required?

While AFDDs aren’t mandated for all circuits in the UK, the 18th Edition regulations recommend them in specific scenarios:

• Circuits supplying socket outlets in locations such as dormitories, residential homes, high-rise buildings, and places of assembly (such as theaters or sports arenas).
• Applications where the risk of electrical fire poses a heightened safety threat.

By adhering to these guidelines, home and business owners can ensure that they’re taking extra measures to align with modern safety standards.

Installation Tips and Considerations

Integrating a Fusebox AFDD into your consumer unit is straightforward for qualified electricians but may involve specific considerations:

1. Identify High-Risk Circuits: Determine which circuits may benefit the most from AFDD protection, particularly in areas susceptible to wear, like kitchens and high-traffic living areas.
2. Assess Load Distribution: Ensure the load is balanced across the AFDD-equipped circuits. If the circuits are too heavily loaded, it may result in unnecessary tripping.
3. Consult with a Professional: Professional guidance is essential for proper installation, especially in high-risk applications where arc fault protection is strongly recommended by UK regulations.

Troubleshooting Common Issues

Although Fusebox AFDDs are engineered to function seamlessly, a few common issues may arise, typically due to installation or environmental factors:

1. Nuisance Tripping: Occasional tripping may occur in circuits with high-power appliances that generate minor, harmless arcs. Adjusting the circuit’s load distribution may help, but if the problem persists, consult an electrician.
2. Compatibility Issues: Ensure that the AFDD is compatible with your specific consumer unit, as some consumer units have unique wiring configurations that may affect performance.
3. Device Malfunctions: If an AFDD continues to trip without an identifiable cause, it’s best to have the device checked by a professional to rule out installation issues.

Future of Fusebox AFDD Technology

The development of Fusebox AFDD technology reflects an industry-wide commitment to creating safer electrical environments, with advancements in detection algorithms and materials engineering contributing to increasingly reliable products. As fire safety technology continues to improve, we can anticipate even more responsive and efficient devices.

Looking ahead, AFDDs may become a standard feature in all consumer units, just as RCDs and circuit breakers are today. Their affordability and improved functionality will likely make them accessible to a wider range of applications, enhancing the safety of both residential and commercial spaces.

Conclusion

Choosing a Fusebox AFDD for your consumer unit is more than a technical upgrade—it’s a proactive choice for safety, reliability, and peace of mind. These devices provide a layer of protection that could prevent a fire from ever occurring in your home or business. By understanding the role of Fusebox AFDDs and staying informed about UK electrical standards, you’re empowering yourself with the knowledge to make safer choices.
