From Fuse Boxes to 18th Edition Compliance

Consumer units, once known as fuse boxes, have evolved significantly over the years, ensuring both safety and efficiency in modern homes and businesses. Here’s a look at how they’ve progressed from simple protection devices to sophisticated systems that meet 18th Edition regulations.

The Early Days: Fuse Boxes

In the mid-20th century, UK homes relied on fuse boxes to protect circuits. These units used replaceable fuses that melted when overloaded, preventing electrical fires. However, fuses needed manual replacement, which was inconvenient and sometimes dangerous.

Introduction of Miniature Circuit Breakers (MCBs)

By the 1970s, fuse boxes gave way to Miniature Circuit Breakers (MCBs). Unlike fuses, MCBs could automatically trip and reset, offering better protection and convenience. This shift was a major step towards the modern consumer units we know today.

The RCD Revolution

In the 1980s, Residual Current Devices (RCDs) became standard. RCDs detect earth faults and protect against electrocution and electrical fires by cutting off power when necessary. This added an essential layer of safety, especially in high-risk areas like bathrooms and outdoor spaces.

In the 1980s, Residual Current Devices (RCDs) became standard. RCDs detect earth faults and protect against electrocution and electrical fires by cutting off power when necessary. This added an essential layer of safety, especially in high-risk areas like bathrooms and outdoor spaces.

Dual RCD Boards and Split-Load Consumer Units

By the 1990s, consumer units began featuring dual RCD boards and split-load designs, which separated circuits across multiple RCDs. This reduced nuisance tripping, keeping some circuits functional even when others tripped due to a fault.

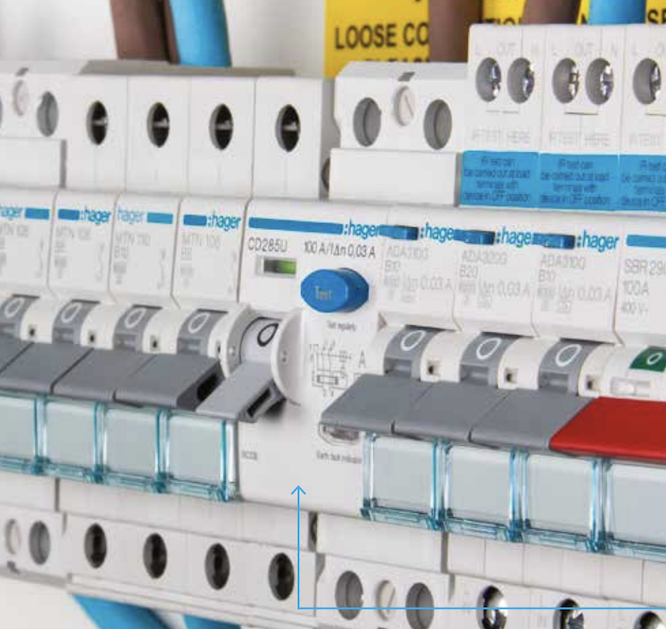

18th Edition BS7671: RCDs, RCBOs, and AFDDs

The 2018 18th Edition of BS7671 Wiring Regulations introduced further advancements, requiring Arc Fault Detection Devices (AFDDs) and more extensive use of RCDs. AFDDs protect against electrical fires caused by arc faults, while RCBOs (Residual Current Breaker with Overcurrent) provide combined protection for individual circuits.

Metal-Clad Consumer Units for Fire Safety

The 2015 regulation change required metal-clad consumer units to replace plastic ones in domestic settings. Metal-clad units reduce fire risks, ensuring safer installations by preventing the spread of fire in the event of an internal fault.

The Rise of Smart Consumer Units

The latest innovation in consumer units is the introduction of smart consumer units. These units integrate with home automation systems, allowing real-time monitoring, remote control, and detailed energy usage tracking, representing the future of electrical installations.

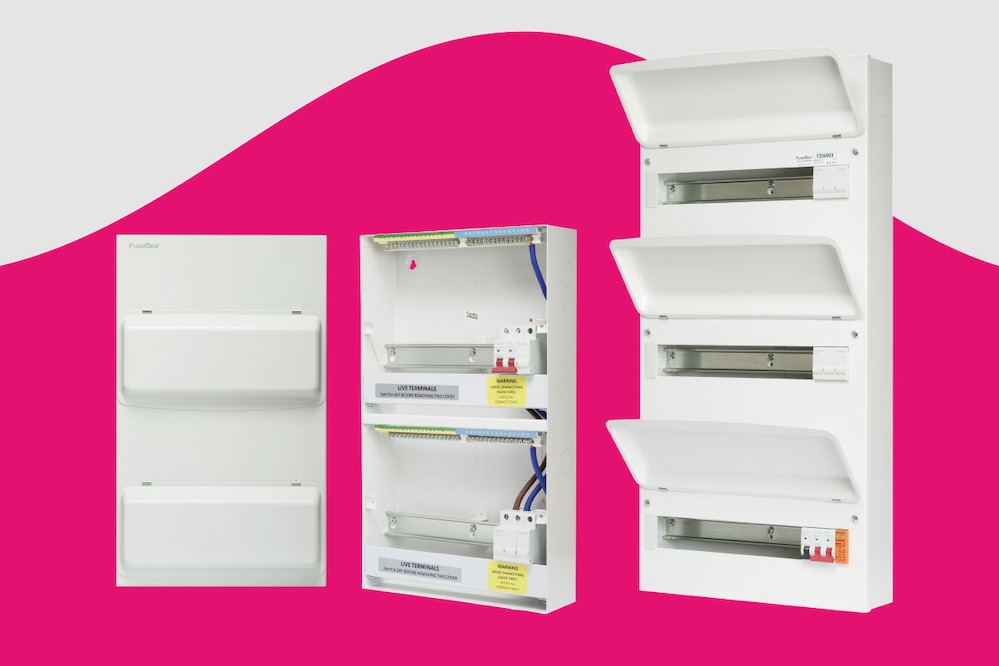

Explore Top Consumer Unit Brands on Electrical4Less

Upgrade your installation with top brands available at Electrical4Less:

Conclusion

From simple fuse boxes to advanced smart consumer units, the evolution of consumer units has made electrical systems safer and more efficient. Each technological advancement, including RCDs, RCBOs, AFDDs, and smart technology, has played a role in meeting growing electrical demands and regulatory requirements like the 18th Edition of BS7671.
