Hager consumer unit

Hager Consumer Units are a popular choice for thousands of electricians across the UK & Europe. Lets explore the company and their product range.

Hager

Hager is a renowned name in the electrical industry, synonymous with quality, reliability, and innovation. Founded in 1955 by brothers Hermann and Oswald Hager in Ensheim, Germany, the company has grown into a global leader in electrical distribution systems, offering a wide range of products including consumer units, circuit breakers, and accessories. Hager’s commitment to excellence has made it a preferred choice for electricians, contractors, and homeowners alike. Over the decades, the company has expanded its product offerings and market presence, establishing itself as a key player in the electrical components industry.

The Evolution of Hager Consumer Units

Hager began its journey into the consumer unit market with a strong focus on safety, functionality, and ease of installation. The company consistently innovates its product line to meet the evolving needs of the industry and comply with the latest regulations, such as the 18th Edition Wiring Regulations in the UK. Today, Hager offers a comprehensive range of consumer units, each designed to cater to specific applications and requirements. Whether for a simple residential installation or a complex commercial setup, Hager provides a solution.

Variety of Hager Consumer Units

Hager offers a diverse range of consumer units, including main switch consumer units, main switch consumer units with Surge Protection Devices (SPDs), flush consumer units, dual RCD consumer units, and three-phase distribution boards. Each type serves a unique purpose and is designed to meet specific safety and functional requirements.

Hager Main Switch Consumer Units (RCBO Consumer Units)

Main switch consumer units, often referred to as RCBO consumer units, are designed to offer comprehensive protection by combining the functionalities of a main switch and multiple RCBOs. This setup ensures individual circuit protection, making them ideal for residential and commercial applications.

Key Products:

  1. Hager VML106: A 6-way consumer unit with dimensions of 252mm x 276mm x 112mm, suitable for smaller installations.
  2. Hager VML110: A 10-way unit measuring 336mm x 276mm x 112mm, offering more circuit capacity.
  3. Hager VML114: A 14-way unit with dimensions of 420mm x 276mm x 112mm, perfect for medium-sized installations.
  4. Hager VML120: A 20-way consumer unit, measuring 504mm x 276mm x 112mm, suitable for larger properties.
  5. Hager VML10606: A12 way RCBO Consumer Unit, dimensions 252mm x 276mm x 112mm.
  6. Hager VML11010: A 20 way main switch consumer unit, measuring 336mm x 276mm x 112mm.
  7. Hager VML11414: A 28 way RCBO Consumer Unit 420mm x 276mm x 112mm.
  8. Hager VML12020: A 40 way main switch consumer unit, measuring 504mm x 276mm x 112mm.

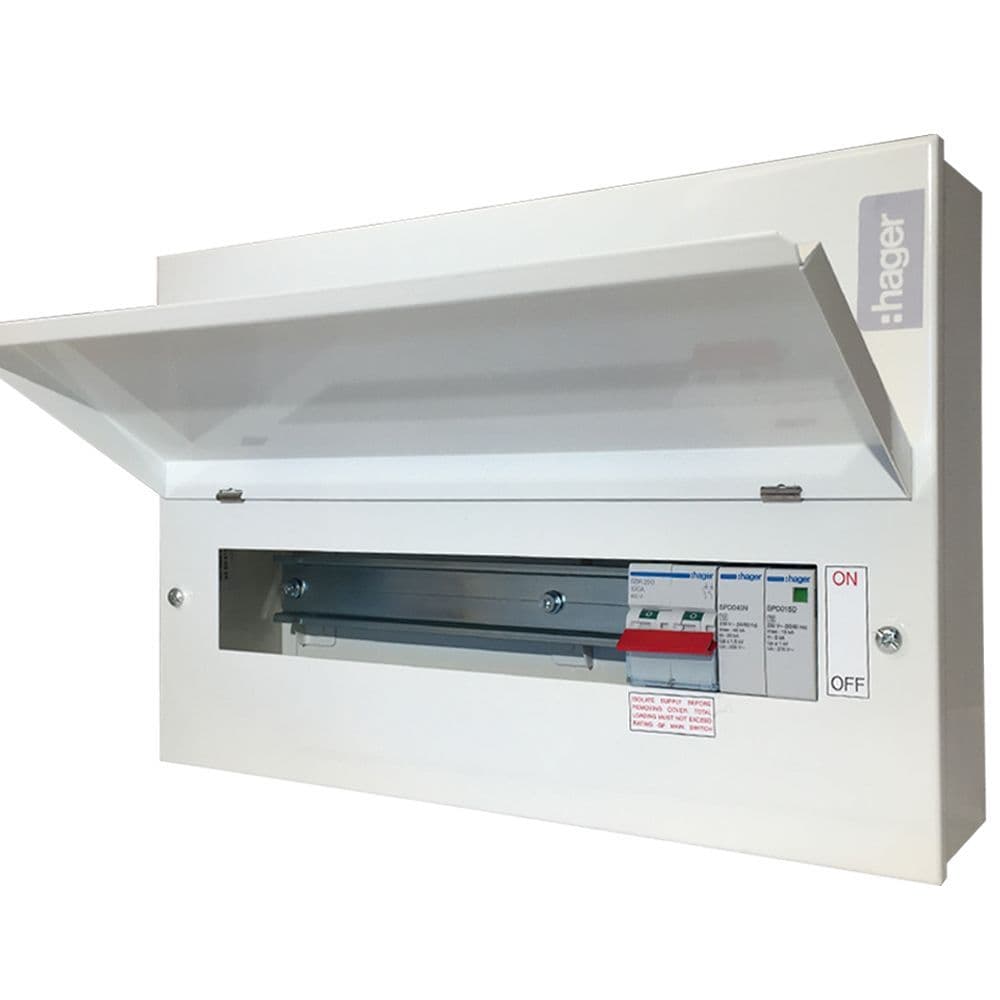

Hager consumer unit

Hager Main Switch Consumer Units with SPD

For enhanced protection, Hager offers consumer units with built-in Surge Protection Devices (SPDs). These units are designed to protect electrical systems from voltage spikes and surges, providing an extra layer of safety for sensitive electronic equipment.

Key Products:

  1. Hager VML108SPD: An 8-way unit with SPD, measuring 336mm x 276mm x 112mm.
  2. Hager VML112SPD: A 12-way unit with SPD, dimensions 420mm x 276mm x 112mm.
  3. Hager VML118SPD: An 18-way unit, offering extended capacity with dimensions of 504mm x 276mm x 112mm.
  4. Hager VML10810SPD: An 8-way unit with 10kA SPD, measuring 336mm x 276mm x 112mm.
  5. Hager VML11214SPD: A 12-way unit with 14kA SPD, dimensions 420mm x 276mm x 112mm.
  6. Hager VML11820SPD: An 18-way unit with 20kA SPD, offering superior protection with dimensions of 504mm x 276mm x 112mm.
hager consumer unit

Flush Consumer Units

Hager’s flush consumer units are designed for installations where aesthetics and space-saving are paramount. These units can be neatly embedded into walls, offering a sleek and unobtrusive appearance.

Key Products:

  1. Hager VMLF110: A flush-mounted 10-way unit, dimensions 336mm x 276mm x 112mm.
  2. Hager VMLF114: A 14-way flush unit, measuring 420mm x 276mm x 112mm.
  3. Hager VMLF120: A 20-way flush consumer unit, dimensions 504mm x 276mm x 112mm.

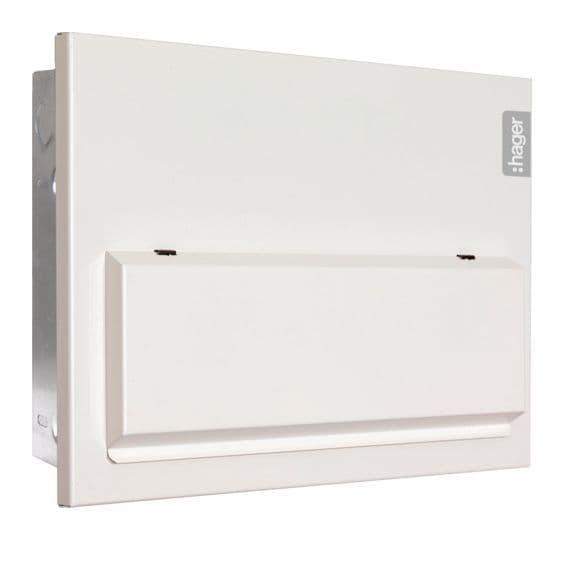

Hager Flush Consumer Unit

Hager Dual RCD Consumer Units

Dual RCD consumer units offer a balanced approach to safety, splitting the load between two RCDs to reduce inconvenience in case of a fault. These units prove particularly useful in residential settings, allowing you to isolate different circuits for maintenance or troubleshooting.

Key Products:

  1. Hager VML910CUSPDRK – 10-way RCBO consumer unit with SPD, offering advanced protection. Dimensions: 336mm x 276mm x 112mm.
  2. Hager VML914CUSPDRK – 14-way RCBO unit with SPD, ensuring comprehensive safety. Dimensions: 420mm x 276mm x 112mm.
  3. Hager VML402AH – 2-way consumer unit, suitable for small installations. Dimensions: 152mm x 176mm x 112mm.
  4. Hager VML406AH – 6-way unit, offering flexibility for small to medium installations. Dimensions: 252mm x 176mm x 112mm.

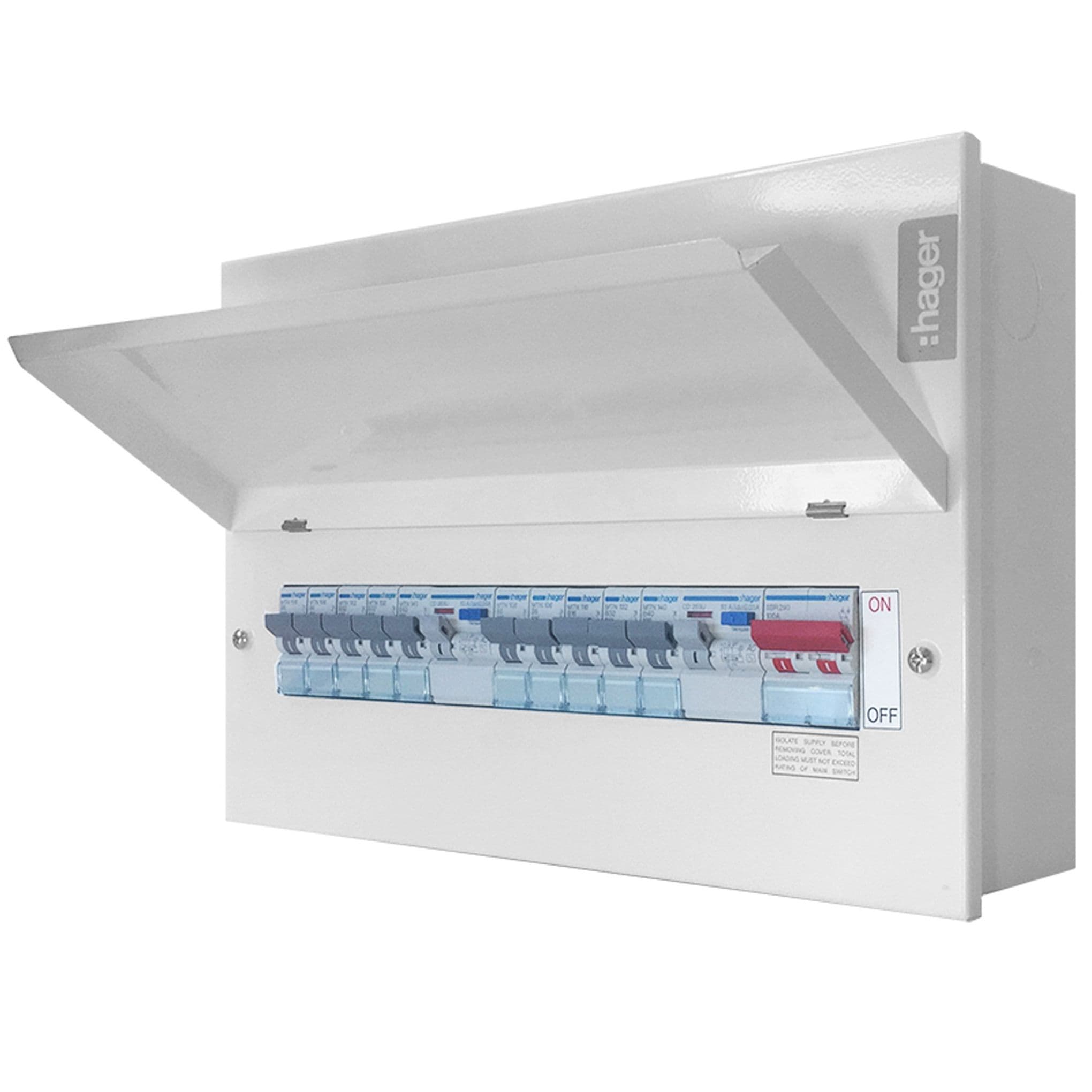

Hager Consumer Unit

Hager Three-Phase Distribution Boards

For commercial and industrial applications, Hager offers robust three-phase distribution boards. These units are designed to handle high-power loads and are essential for businesses requiring reliable and safe power distribution.

Key Products:

  1. Hager JK104BA3: A 4-way three-phase board, dimensions 300mm x 500mm x 150mm.
  2. Hager JK106BA3: A 6-way unit, measuring 400mm x 500mm x 150mm.
  3. Hager JK108BA3: An 8-way three-phase distribution board, dimensions 500mm x 500mm x 150mm.
  4. Hager JK112BA3: A 12-way unit, measuring 600mm x 500mm x 150mm.
  5. Hager JK116BA3: A 16-way board, dimensions 700mm x 500mm x 150mm.
  6. Hager JK118BA3: An 18-way three-phase distribution board, measuring 750mm x 500mm x 150mm.
  7. Hager JK124BA3: A 24-way unit, dimensions 800mm x 500mm x 150mm.

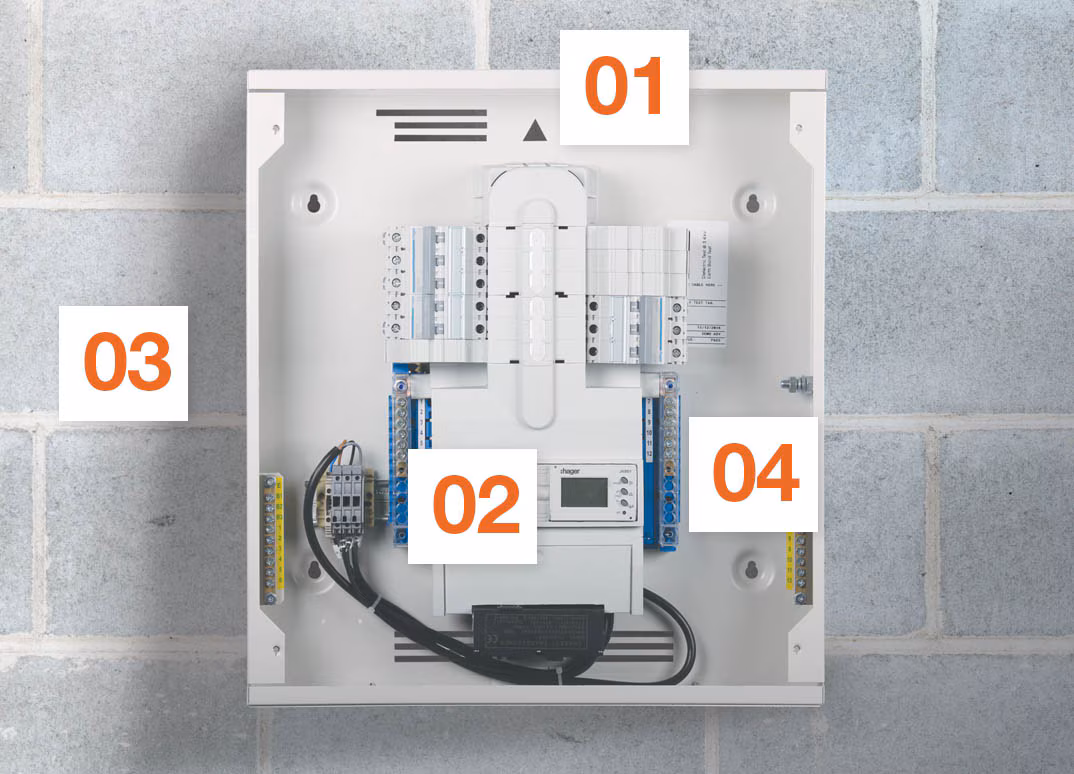

Hager TPN Consumer Unit

Hager RCBOs

Hager’s range of RCBOs (Residual Current Circuit Breakers with Overcurrent protection) provides individual circuit protection, combining the functionalities of an RCD and an MCB. They are available in various ratings and are compatible with Hager consumer units, ensuring maximum safety and flexibility.

Hager RCBO

Hager SPDs

Surge Protection Devices (SPDs) are essential for safeguarding electrical installations against voltage spikes. Hager’s range of SPDs integrates into consumer units and reliably protects sensitive electronic equipment.

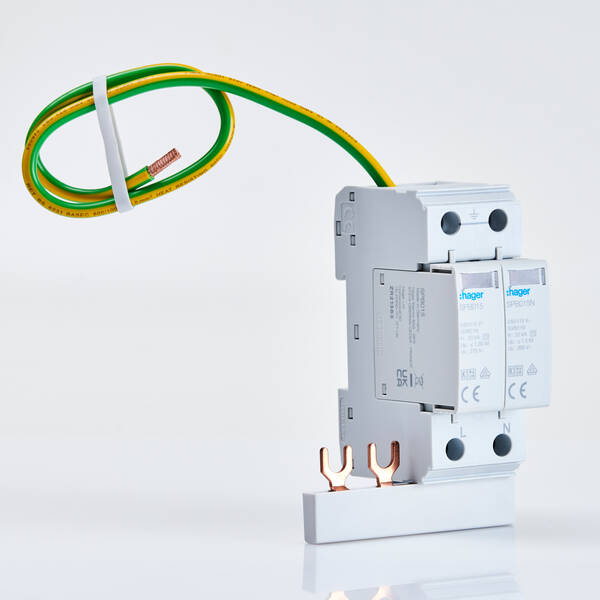

Hager Consumer Unit SPD

Hager MCBs

Miniature Circuit Breakers (MCBs) are essential components for protecting electrical circuits from overloads and short circuits. They offer a comprehensive range of MCBs in various ratings, ensuring compatibility with different consumer units and applications.

Accessories

Hager also offers a wide range of accessories, including blanking plates, busbars, cable management solutions, and mounting kits. These accessories complement their consumer units and help achieve a neat and organized installation.

Praise for Hager’s High-Quality Consumer Units

Hager has consistently demonstrated a commitment to quality, innovation, and customer satisfaction. The use of premium materials, adherence to stringent safety standards, and continuous innovation make Hager a trusted brand in the electrical industry. Whether you are a professional electrician or a homeowner, Hager’s products offer peace of mind, knowing that your electrical installations are safe and efficient.

Conclusion

In conclusion, Hager consumer units are a testament to the company’s dedication to excellence. With a wide range of products catering to various needs, from simple residential setups to complex commercial installations. Hager has established itself as a leader in the electrical distribution market.

The company’s focus on quality, safety, and innovation ensures that their products meet the highest standards, making them a top choice for anyone seeking reliable and efficient electrical solutions. Whether you’re looking for an RCBO consumer unit, a dual RCD unit, or a three-phase distribution board, Hager has the perfect solution for you. Furthermore, their wide range of options caters to both residential and commercial applications, making them a versatile choice for any project.

Hager Consumer Unit FAQ – Part 1

Are Hager consumer units any good?

Yes, Hager consumer units are highly regarded for their quality, reliability, and compliance with the latest safety standards. They offer excellent protection and functionality, making them a popular choice among professionals and homeowners.

Where are Hager consumer units made?

Hager consumer units are manufactured in various locations worldwide, including Germany, France, and China. The company maintains strict quality control across all its manufacturing facilities.

Is Hager a German brand?

Yes, Hager is a German brand, founded in 1955. The company has since grown into a global leader in electrical distribution systems.

Is Hager a good company?

Yes, Hager is known for its high-quality products, innovation, and excellent customer service. The company has a strong reputation in the electrical industry.

Is Hager better than Schneider?

Both Hager and Schneider are reputable brands in the electrical industry. The choice between the two often comes down to specific needs, preferences, and compatibility with existing systems.

Is Hager circuit breaker a good brand?

Yes, Hager circuit breakers are known for their reliability, safety, and durability. They are widely used in residential and commercial installations.

FAQ – Part 2

What is the lifespan of a circuit breaker?

The typical lifespan of a circuit breaker is around 15 to 30 years, depending on usage and environmental conditions. Regular maintenance and inspections can extend their lifespan.

Which is better, Hager or Legrand?

Both Hager and Legrand offer high-quality products. The choice depends on specific requirements, such as design preferences, compatibility, and pricing.

Does brand matter for circuit breakers?

Yes, the brand matters as it ensures compatibility, reliability, and compliance with safety standards. It is advisable to use circuit breakers from reputable manufacturers like Hager.

What breakers are compatible with Hager consumer units?

Hager consumer units are compatible with Hager-branded MCBs, RCBOs, and other accessories. It is recommended to use Hager components to ensure proper fit and functionality.

FAQ – Part 3

What is the difference between RCD and consumer unit?

A consumer unit is a distribution board that houses multiple electrical circuits and protective devices, including RCDs. An RCD (Residual Current Device) is a specific type of protective device that prevents electric shocks by cutting off the power supply in the event of a fault.

Can I replace a breaker with a different brand?

While it is possible, it is not recommended to mix different brands in a consumer unit due to potential compatibility issues. Always consult a qualified electrician before replacing circuit breakers.

Can you have a new consumer unit without a rewire?

Yes, you can install a new consumer unit without a full rewire, provided the existing wiring is in good condition and meets current safety standards.

What size consumer unit for a 3-bedroom house?

A 10 to 14-way consumer unit is generally sufficient for a standard 3-bedroom house. However, the exact size may vary depending on the specific electrical needs and future expansion plans.

How long does a consumer unit last?

A consumer unit typically lasts around 20 to 30 years, depending on the quality of the installation, maintenance, and environmental conditions.

FAQ – Part 4

Are plastic consumer units still legal?

As of recent UK regulations, consumer units in domestic properties must be made from non-combustible materials, such as metal. Consequently, plastic consumer units are no longer compliant for new installations. This change aims to enhance safety by reducing the risk of fire.

Do Hager make Mini RCBOs?

Yes, Hager offers mini RCBOs that are compact and space-saving, ideal for installations with limited space.

Do Hager make compact RCBOs?

Yes, Hager manufactures compact RCBOs, which are designed to fit into standard consumer units while saving space.

Do Hager make 18th edition consumer units?

Yes, Hager produces consumer units that comply with the 18th Edition Wiring Regulations, ensuring they meet the latest safety and installation standards.

Do Hager make RCBO Consumer Units?

Yes, Hager offers a range of RCBO consumer units, providing individual circuit protection and ensuring a high level of safety.
